All Terminations by CW Power
|
CW Power
(Max) (W) |
Form | Configuration | Footprint A Dimension |
Footprint B Dimension |
Thickness/ H Dimension |
Substrate |
RoHS
|
Part Number/ Data Sheet |
|---|---|---|---|---|---|---|---|---|
| 0.015 | Chip | Half Wrap | 0.020" | 0.020" | Various | Various | Yes | TV0202ZZ-50R0WN-AA |
| 2.0 | Chip | Half Wrap | 0.080" | 0.050" | 0.010" | Alumina | Yes | TV0805GA-50R0JN-90 |
| 2 | Chip | Half Wrap | 0.080" | 0.050" | 0.015" | Alumina | No | TV0805CB-50R0JN-91 |
| 2.5 | Chip | Half Wrap | 0.040" | 0.020" | Various | Various | Yes | TV0402HA-50R0JN-96 |
| 2.5 | Chip | Half Wrap | 0.040" | 0.020" | 0.015" | BeO | No | TV0402BA-1000GN-96-01 |
| 3 | Chip | Half Wrap | 0.050" | 0.050" | 0.015" | Alumina | Yes | TV0505GA-50R0JN-91 |
| 5 | Chip | Half Wrap | 0.050" | 0.050" | 0.010" | BeO | Yes | TV0505HA-50R0GN-95-01 |
| 5 | Chip | Half Wrap | 0.120" | 0.060" | 0.025" | Alumina | Yes | TVC1206CB-50R0JN-93 |
| 10 | Chip | Half Wrap | 0.100" | 0.050" | 0.015" | AlN | Yes | TV1005CT-50R0JN-2Q-01 |
| 10 | Chip | Half Wrap | 0.190" | 0.070" | 0.025" | Alumina | Yes | TVC1907CT-XXXXJN-93 |
| 10 | Chip | Half Wrap | 0.200" | 0.100" | 0.040" | BeO | No | TVC2010CB-XXXXJN-99 |
| 10 | Leaded | Leaded | 0.100" | 0.050" | 0.015" | AlN | Yes | A01Z-50R0J2Q-01A36-Y |
| 10 | Flanged (Copper) |
B-Right | 0.300" | 0.200" | 0.140" | BeO | Yes | T50R0-10-1X |
| 10 | Flanged (Copper) |
B-Right | 0.300" | 0.200" | 0.140" | AlN | Yes | TA50R0-10-1X |
| 10 | Flanged (Copper) |
B-Left | 0.300" | 0.200" | 0.140" | BeO | Yes | T50R0-10-2X |
| 10 | Flanged (Copper) |
A | 0.500" | 0.200" | 0.140" | BeO | Yes | T50R0-10-3X |
| 10 | Flanged (Copper) |
A | 0.500" | 0.200" | 0.140" | AlN | Yes | TA50R0-10-3X |
| 15 | Chip | Half Wrap | 0.080" | 0.050" | 0.025" | BeO | No | TV0805CB-50R0JN-98 |
| 20 | Chip | Half Wrap | 0.060" | 0.050" | Various | Various | Available | TV0605ZZ-XXXXWN-YY |
| 20 | Chip | Half Wrap | 0.100" | 0.050" | 0.010" | BeO | No | TV1005CB-50R0JN-95 |
| 20 | Chip | Half Wrap | 0.100" | 0.050" | 0.015" | BeO | No | TV1005CB-50R0JN-96 |
| 20 | Chip | Half Wrap | 0.100" | 0.050" | 0.015" | BeO | No | TV1005CB-50R0JN-96-01 |
| 20 | Chip | Half Wrap | 0.100" | 0.050" | 0.015" | BeO | Yes | TV1005HA-50R0JN-96-01 |
| 20 | Chip | Half Wrap | 0.100" | 0.050" | 0.015" | BeO | Yes | TV1005HA-50R0JN-96 |
| 20 | Chip | Half Wrap | 0.120" | 0.060" | 0.025" | BeO | No | TVC1206CB-50R0JN-98 |
| 20 | Chip | Half Wrap | 0.120" | 0.060" | 0.025" | AlN | Yes | TVC1206CT-50R0JN-2S |
| 20 | Chip | Half Wrap | 0.120" | 0.060" | 0.025" | BeO | Yes | TVC1206CT-50R0JN-98 |
| 20 | Leaded | Leaded | 0.100" | 0.050" | 0.015" | BeO | Yes | A01Z-50R0J96-01A36-Y |
| 20 | Leaded | Leaded | 0.120" | 0.060" | 0.025" | BeO | Yes | B02Z-50R0J98-00C36-Y |
| 20 | Leaded | Leaded | 0.120" | 0.060" | 0.025" | AlN | Yes | B02Z-50R0J2S-00C36-Y |
| 20 | Flanged (Copper) |
B-Center | 0.515" | 0.250" | 0.160" | BeO | Yes | T50R0-20-1X |
| 20 | Flanged (Copper) |
B-Center | 0.515" | 0.250" | 0.140" | BeO | Yes | T50R0-20-18X |
| 30 | Chip | Half Wrap | 0.200" | 0.100" | 0.040" | AlN | Yes | TVC2010CT-50R0JN-2T-01 |
| 30 | Leaded | Leaded | 0.200" | 0.100" | 0.040" | AlN | Yes | D04Z-50R0J2T-01C36-X |
| 30 | Flanged (Copper) |
B-Center | 0.515" | 0.250" | 0.140" | BeO | Yes | T50R0-30-2X |
| 30 | Flanged (Copper) |
B-Right | 0.515" | 0.250" | 0.140" | BeO | Yes | T50R0-30-10X |
| 30 | Flanged (Copper) |
B-Right | 0.515" | 0.250" | 0.140" | AlN | Yes | TA50R0-30-10X |
| 30 | Flanged (Copper) |
B-Left | 0.515" | 0.250" | 0.140" | BeO | Yes | T50R0-30-13X |
| 30 | Flanged (Copper) |
B-Left | 0.515" | 0.250" | 0.140" | AlN | Yes | TA50R0-30-13X |
| 30 | Flanged (Copper) |
B-Center | 0.515" | 0.250" | 0.140" | AlN | Yes | TA50R0-30-18X |
| 30 | Flanged (Copper) |
B-Left | 0.300" | 0.200" | 0.140" | BeO | Yes | T50R0-30-28X |
| 40 | Chip | Surface Mount | 0.250" | 0.250" | 0.040" | BeO | Yes | TZC2525CT-50R0JN-99 |
| 40 | Flanged (Copper) |
A | 0.800" | 0.230" | 0.140" | BeO | Yes | T50R0-40-1X |
| 40 | Flanged (Copper) |
A | 0.800" | 0.230" | 0.140" | AlN | Yes | TA50R0-40-1X |
| 50 | Chip | Surface Mount | 0.375" | 0.250" | 0.040" | BeO | No | TZC3725CB-XXXXJN-99 |
| 50 | Chip | Surface Mount | 0.375" | 0.250" | 0.040" | BeO | Yes | TZC3725CT-XXXXJN-99 |
| 60 | Chip | Half Wrap | 0.200" | 0.100" | 0.040" | BeO | No | TVC2010CB-XXXXJN-99-01 |
| 60 | Chip | Half Wrap | 0.200" | 0.100" | 0.040" | BeO | Yes | TVC2010CT-XXXXJN-99 |
| 60 | Leaded | Leaded | 0.200" | 0.100" | 0.040" | BeO | Yes | D04Z-50R0J99-01C36-X |
| 60 | Flanged (Copper) |
A | 0.800" | 0.230" | 0.140" | AlN | Yes | TA50R0-60-2X |
| 60 | Flanged (Copper) |
B-Right | 0.515" | 0.250" | 0.140" | BeO | Yes | T50R0-60-3X |
| 60 | Flanged (Copper) |
B-Right | 0.515" | 0.250" | 0.140" | AlN | Yes | TA50R0-60-X |
| 60 | Flanged (Copper) |
B-Center | 0.515" | 0.250" | 0.140" | BeO | Yes | T50R0-60-12X |
| 60 | Flanged (Copper) |
B-Center | 0.515" | 0.250" | 0.140" | AlN | Yes | TA50R0-60-12X |
| 60 | Flanged (Copper Tungsten) |
B-Right | 0.515" | 0.250" | 0.140" | BeO | Yes | T50R0-60-49E |
| 60 | Flanged (Copper) |
B-Left | 0.515" | 0.250" | 0.140" | BeO | Yes | T50R0-60-50X |
| 60 | Flanged (Copper) |
B-Left | 0.515" | 0.250" | 0.140" | AlN | Yes | TA50R0-60-50X |
| 60 | Flanged (Copper Tungsten) |
B-Left | 0.515" | 0.250" | 0.140" | BeO | Yes | T50R0-60-50E |
| 60 | Flanged (Copper) |
B-Center | 0.515" | 0.250" | 0.140" | AlN | Yes | TA50R0-60-51X |
| 100 | Chip | Half Wrap | 0.250" | 0.250" | 0.040" | BeO | No | TVC2525CB-50R0JN-99-01 |
| 100 | Chip | Half Wrap | 0.250" | 0.250" | 0.040" | BeO | No | TVC2525CB-50R0JN-99 |
| 100 | Chip | Half Wrap | 0.250" | 0.250" | 0.040" | AlN | Yes | TVC2525CT-50R0JN-2T-04 |
| 100 | Chip | Half Wrap | 0.250" | 0.250" | 0.040" | AlN | Yes | TVC2525CT-50R0JN-2T-09 |
| 100 | Chip | Half Wrap | 0.250" | 0.250" | 0.040" | BeO | Yes | TVC2525CT-50R0JN-99 |
| 100 | Chip | Surface Mount | 0.250" | 0.250" | 0.040" | BeO | Yes | TZC2525CB-50R0JN-98 |
| 100 | Chip | Surface Mount | 0.250" | 0.250" | 0.040" | BeO | No | TZC2525CB-50R0JN-99 |
| 100 | Chip | Surface Mount | 0.250" | 0.250" | 0.040" | BeO | Yes | TZC2525CT-50R0JN-99 |
| 100 | Chip | Surface Mount | 0.250" | 0.250" | 0.060" | BeO | No | TZC2525CB-50R0JN-9F |
| 100 | Chip | Surface Mount | 0.250" | 0.250" | 0.040" | AlN | Yes | TZC2525CT-50R0JN-2T-02 |
| 100 | Chip | Half Wrap | 0.230" | 0.350" | 0.040" | BeO | No | TVC2335CT-50R0JN-99-02 |
| 100 | Chip | Half Wrap | 0.230" | 0.350" | 0.040" | AlN | Yes | TVC2335CT-50R0GN-2T |
| 100 | Chip | Half Wrap | 0.230" | 0.350" | 0.040" | AlN | Yes | TVC2335CT-50R0JN-2T-14 |
| 100 | Chip | Half Wrap | 0.230" | 0.350" | 0.040" | BeO | Yes | TVC2335CT-50R0JN-99-02 |
| 100 | Chip | Half Wrap | 0.350" | 0.230" | 0.040" | AlN | Yes | TVC3523CT-50R0GN-2T |
| 100 | Leaded | Leaded | 0.230" | 0.350" | 0.040" | BeO | Yes | D05Z-50R0J99-02C36-X |
| 100 | Leaded | Leaded | 0.230" | 0.350" | 0.040" | AlN | Yes | D05Z-50R0J2T-14C36-X |
| 100 | Flanged (Copper) |
A | 0.800" | 0.230" | 0.140" | BeO | Yes | T50R0-100-2X |
| 100 | Flanged (Copper) |
A | 0.800" | 0.230" | 0.140" | AlN | Yes | TA50R0-100-2X |
| 100 | Flanged (Copper) |
B-Left | 0.515" | 0.250" | 0.140" | BeO | Yes | T50R0-100-4X |
| 100 | Flanged (Copper) |
B-Right | 0.515" | 0.250" | 0.140" | AlN | Yes | TA50R0-100-7X |
| 100 | Flanged (Copper) |
B-Center | 0.515" | 0.250" | 0.140" | BeO | Yes | T50R0-100-21X |
| 100 | Flanged (Copper) |
B-Left | 0.560" | 0.375" | 0.140" | AlN | Yes | TA50R0-100-24X |
| 100 | Flanged (Copper) |
B-Right | 0.560" | 0.375" | 0.140" | AlN | Yes | TA50R0-100-25X |
| 100 | Flanged (Copper) |
B-Center | 0.515" | 0.250" | 0.140" | AlN | Yes | TA50R0-100-26X |
| 100 | Flanged (Copper) |
A | 0.800" | 0.230" | 0.140" | AlN | Yes | TA50R0-100-27X |
| 100 | Flanged (Copper Tungsten) |
B-Right | 0.560" | 0.375" | 0.140" | BeO | Yes | T50R0-100-30E |
| 120 | Flanged (Copper) |
B-Right | 0.515" | 0.250" | 0.140" | BeO | Yes | T50R0-120-18X |
| 125 | Leaded | Leaded | 0.250" | 0.250" | 0.040" | BeO | Yes | D06Z-50R0J99-00C36-X |
| 125 | Flanged (Copper) |
B-Center | 0.515" | 0.250" | 0.140" | BeO | Yes | T50R0-125-21X |
| 150 | Chip | Half Wrap | 0.230" | 0.350" | 0.040" | AlN | Yes | TVC2335CT-50R0JN-2T-05 |
| 150 | Chip | Half Wrap | 0.230" | 0.350" | 0.040" | AlN | Yes | TVC2335CT-50R0JN-2T-10 |
| 150 | Chip | Half Wrap | 0.375" | 0.250" | 0.040" | BeO | No | TVC3725CB-50R0JN-99-03 |
| 150 | Chip | Half Wrap | 0.375" | 0.250" | 0.040" | AlN | Yes | TVC3725CT-50R0JN-2T-01 |
| 150 | Chip | Half Wrap | 0.375" | 0.250" | 0.060" | AlN | Yes | TVC3725CT-50R0JN-2U-12 |
| 150 | Chip | Half Wrap | 0.375" | 0.250" | 0.040" | BeO | Yes | TVC3725CT-50R0JN-99-03 |
| 150 | Chip | Surface Mount | 0.375" | 0.250" | 0.040" | AlN | Yes | TZC3725CT-50R0JN-2T-01 |
| 150 | Leaded | Leaded | 0.250" | 0.250" | 0.040" | AlN | Yes | D06Z-50R0J2T-04C36-X |
| 150 | Leaded | Leaded | 0.230" | 0.350" | 0.040" | AlN | Yes | D05Z-50R0J2T-05C36-X |
| 150 | Leaded | Leaded | 0.375" | 0.250" | 0.040" | BeO | Yes | D07Z-50R0J99-03C36-X |
| 150 | Leaded | Leaded | 0.375" | 0.250" | 0.040" | AlN | Yes | D07Z-50R0J2T-01C36-X |
| 150 | Flanged (Copper) |
A | 0.800" | 0.230" | 0.140" | BeO | Yes | T50R0-150-10X |
| 150 | Flanged (Copper) |
A | 0.800" | 0.230" | 0.140" | AlN | Yes | TA50R0-150-10X |
| 150 | Flanged (Copper Tungsten) |
A | 0.800" | 0.230" | 0.140" | BeO | Yes | T50R0-150-10E |
| 150 | Flanged (Copper) |
A | 0.870" | 0.375" | 0.140" | BeO | Yes | T50R0-150-25X |
| 150 | Flanged (Copper) |
A | 0.870" | 0.375" | 0.140" | AlN | Yes | TA50R0-150-25X |
| 150 | Flanged (Copper) |
B-Right | 0.870" | 0.375" | 0.140" | BeO | Yes | T50R0-150-43X |
| 200 | Chip | Half Wrap | 0.300" | 0.200" | 0.040" | BeO | Yes | TVC3020CT-50R0GN-99 |
| 200 | Flanged (Copper Tungsten) |
A | 0.800" | 0.230" | 0.140" | BeO | Yes | T50R0-200-1E |
| 250 | Chip | Half Wrap | 0.375" | 0.250" | 0.040" | AlN | Yes | TVC3725CT-50R0JN-2T-09 |
| 250 | Chip | Half Wrap | 0.375" | 0.375" | 0.040" | BeO | No | TVC3737CB-50R0JN-99 |
| 250 | Chip | Half Wrap | 0.375" | 0.375" | 0.040" | BeO | Yes | TVC3737CT-50R0JN-99 |
| 250 | Chip | Half Wrap | 0.375" | 0.375" | 0.040" | AlN | Yes | TVC3737CT-50R0JN-2T-04 |
| 250 | Chip | Half Wrap | 0.375" | 0.375" | 0.040" | AlN | Yes | TVC3737CT-50R0JN-2T-08 |
| 250 | Leaded | Leaded | 0.375" | 0.250" | 0.040" | AlN | Yes | D07Z-50R0J2T-09C36-X |
| 250 | Leaded | Leaded | 0.375" | 0.375" | 0.040" | BeO | Yes | D08Z-50R0J99-00C36-X |
| 250 | Leaded | Leaded | 0.375" | 0.375" | 0.040" | BeO | Yes | D08Z-50R0J2T-04C36-X |
| 250 | Flanged (Copper) |
A | 0.975" | 0.375" | 0.140" | BeO | Yes | T50R0-250-12X |
| 250 | Flanged (Copper Tungsten) |
A | 0.975" | 0.375" | 0.140" | BeO | Yes | T50R0-250-12E |
| 250 | Flanged (Copper Tungsten) |
A | 0.975" | 0.375" | 0.140" | BeO | Yes | T50R0-250-23E |
| 250 | Flanged (Copper) |
A | 0.975" | 0.375" | 0.140" | AlN | Yes | TA50R0-250-17X |
| 250 | Flanged (Copper) |
A | 0.975" | 0.375" | 0.140" | AlN | Yes | TA50R0-250-19X |
| 250 | Flanged (Copper) |
A | 0.975" | 0.375" | 0.140" | AlN | Yes | TA50R0-250-20X |
| 250 | Flanged (Copper) |
A | 0.870" | 0.375" | 0.140" | AlN | Yes | TA50R0-250-21X |
| 250 | Flanged (Copper) |
A | 0.975" | 0.375" | 0.140" | AlN | Yes | TA50R0-250-25X |
| 350 | Flanged (Copper) |
A | 1.100" | 0.500" | 0.140" | BeO | Yes | T50R0-350-2X |
| 350 | Flanged (Copper) |
A | 1.100" | 0.500" | 0.140" | BeO | Yes | T50R0-350-1X |
| 800 | Flanged (Copper Tungsten) |
A | 1.900" | 1.040" | 0.190" | BeO | Yes | T50R0-800-1E |
| 800 | Flanged (Copper) |
A | 1.900" | 1.040" | 0.190" | AlN | Yes | TA50R0-800-10X |
| 800 | Flanged (Copper) |
A | 1.900" | 1.040" | 0.190" | AlN | Yes | TA1000-800-10X |
| 800 | Flanged (Copper) |
A | 0.190" | 1.040" | 0.320" | AlN | Yes | TA50R0-800-9X |
| 800 | Flanged (Copper) |
A | 1.900" | 1.040" | 0.400" | AlN | Yes | TA50R0-800-15X |
| 1500 | Flanged (Copper Tungsten) |
A | 1.900" | 1.640" | 0.220" | BeO | Yes | T50R0-1500-1E |
| 5000 | Flanged (Copper) |
Assembly | 3.500" | 1.800" | 0.225" | BeO | Yes | T50R0-5000-1X |
Click on link for available Data Sheet. For more options, please contact us with your requirement.
(Click on column header to sort)
(Click on column header to sort)
Barry Industries offers flanged terminations with Copper Tungsten mounting flanges designed specifically for pulsed power/ high thermal cycle applications. Check out our entire line of terminations for Pulsed Power & High Thermal Cycle Applications

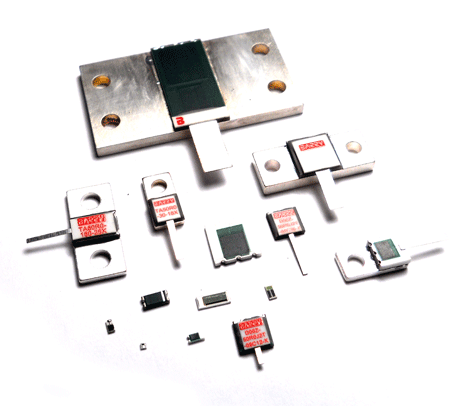

Barry Industries offers the largest selection of high power terminations up to 1000W. Below are our standard selection of power terminations. For power ratings above 1000W please contact us.
Chip Termination
Leaded Termination
Flanged Termination -
A Config.
A Config.
Flanged Termination
B Config. Left
B Config. Left
Flanged Termination
B Config. Right
B Config. Right
