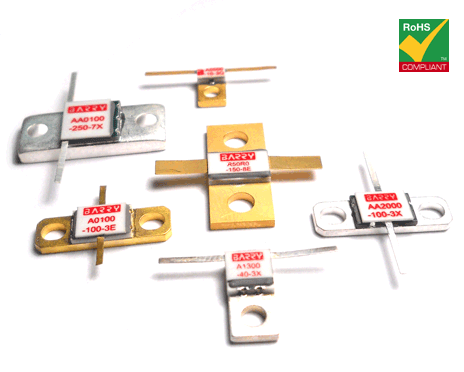

Flanged Attenuators
A or AA Series
A or AA Series
Click on link for available Data Sheet. For other attenuation values or more options, please contact us with your requirement.
(Click on column header to sort)
(Click on column header to sort)
Below are Barry Industries' standard flanged attenuators. Engineers are welcome to contact us and we will design a custom flanged attenuator to your exact specifications. Fractional attenuation values available.
AlN Note: 2dB to 30dB available. Special attenuation value requests welcome.
AlN Note: 2dB to 30dB available. Special attenuation value requests welcome.
Specifications:
Resistive Element:
Substrate:
Mounting Flange
Leads:
Resistive Element:
Substrate:
Mounting Flange
Leads:
Proprietary Thick Film
AlN or BeO
Silver Plated Copper
0.005" Thick Silver Plated Copper
AlN or BeO
Silver Plated Copper
0.005" Thick Silver Plated Copper
General Notes:
• All power ratings assume an operating flange temperature of 100°C unless otherwise stated.
• Standard value range is 0dB and 30dB for BeO attenuators and 2dB to 30dB for AlN attenuators. Others values are available.
• Mechanical tolerance is ±0.010" unless otherwise noted.
• Individual drawings are available upon request.
• Power ratings over 250W are available by contacting the factory.
• Other configurations available, custom requests are welcome.
• All power ratings assume an operating flange temperature of 100°C unless otherwise stated.
• Standard value range is 0dB and 30dB for BeO attenuators and 2dB to 30dB for AlN attenuators. Others values are available.
• Mechanical tolerance is ±0.010" unless otherwise noted.
• Individual drawings are available upon request.
• Power ratings over 250W are available by contacting the factory.
• Other configurations available, custom requests are welcome.
Barry Industries offers flanged resistors with Copper Tungsten mounting flanges designed specifically for pulsed power/ high thermal cycle applications. Check out our entire line of attenuators for Pulsed Power & High Thermal Cycle Applications
Derating Curve
Copper vs. Copper Tungsten
Copper vs. Copper Tungsten
|
CW Power
(Max) (W) |
Value (dB) |
Freq.
(Max) (GHz) |
Return
Loss (Typ.) |
Config.
|
A
Length |
B Width |
C
Hole to Hole or Hole to Edge |
D
Lead Width |
E
From Bottom Face of Lead |
F (Max) Height |
G Hole Diameter |
RoHS
|
Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10W | 2.0dB | 4GHz | 18dB |
 |
0.300" | 0.200" | 0.100" | 0.040" | 0.105" | 0.140" | 0.116" | Yes | |
| 10W | 7.0dB | 4GHz | 17dB |
|
0.300" | 0.200" | 0.100" | 0.040" | 0.105" | 0.140" | 0.116" | Yes | |
| 10W | 10.0dB | 4GHz | 20dB |
|
0.300" | 0.200" | 0.100" | 0.040" | 0.087" | 0.140" | 0.116" | Yes | |
| 10W | 20.0dB | 4GHz | 20dB |
|
0.300" | 0.200" | 0.100" | 0.040" | 0.087" | 0.140" | 0.116" | Yes | |
| 10W | 30.0dB | 4GHz | 20dB |
|
0.300" | 0.200" | 0.100" | 0.040" | 0.087" | 0.140" | 0.116" | Yes | |
| 20W | 0.5dB | 3GHz | 17dB |
|
0.515" | 0.250" | 0.125" | 0.048" | 0.106" | 0.140" | 0.116" | Yes | |
| 20W | 1.0dB | 2.5GHz | 20dB |
|
0.515" | 0.250" | 0.125" | 0.048" | 0.106" | 0.140" | 0.116" | Yes | |
| 20W | 1.5dB | 2.5GHz | 20dB |
|
0.515" | 0.250" | 0.125" | 0.048" | 0.106" | 0.140" | 0.116" | Yes | |
| 20W | 2.0dB | 3GHz | 17dB |
|
0.515" | 0.250" | 0.125" | 0.048" | 0.106" | 0.140" | 0.116" | Yes | |
| 20W | 2.5dB | 2.5GHz | 20dB |
|
0.515" | 0.250" | 0.125" | 0.048" | 0.106" | 0.140" | 0.116" | Yes | |
| 20W | 3.0dB | 3GHz | 17dB |
|
0.515" | 0.250" | 0.125" | 0.048" | 0.106" | 0.140" | 0.116" | Yes | |
| 20W | 4.0dB | 3GHz | 17dB |
|
0.515" | 0.250" | 0.125" | 0.048" | 0.106" | 0.140" | 0.116" | Yes | |
| 20W | 6.0dB | 3GHz | 20dB |
|
0.515" | 0.250" | 0.125" | 0.040" | 0.106" | 0.140" | 0.116" | Yes | |
| 20W | 10.0dB | 3GHz | 18dB |
|
0.515" | 0.250" | 0.125" | 0.048" | 0.106" | 0.140" | 0.116" | Yes | |
| 20W | 15.0dB | 3GHz | 18dB |
|
0.515" | 0.250" | 0.125" | 0.048" | 0.106" | 0.140" | 0.116" | Yes | |
| 20W | 20.0dB | 2.5GHz | 22dB |
|
0.515" | 0.250" | 0.125" | 0.048" | 0.106" | 0.140" | 0.116" | Yes | |
| 20W | 30.0dB | 0.75GHz | 20dB |
|
0.515" | 0.250" | 0.125" | 0.048" | 0.106" | 0.140" | 0.116" | Yes | |
| 20W | 31.0dB | 1GHz | 20dB |
|
0.515" | 0.250" | 0.125" | 0.048" | 0.106" | 0.140" | 0.116" | Yes | |
| 40W | 0.5dB | 3GHz | 17dB |
|
0.515" | 0.250" | 0.125" | 0.048" | 0.106" | 0.140" | 0.130" | Yes | |
| 40W | 1.0dB | 3GHz | 17dB |
|
0.515" | 0.250" | 0.125" | 0.048" | 0.106" | 0.140" | 0.130" | Yes | |
| 40W | 2.0dB | 3GHz | 17dB |
|
0.515" | 0.250" | 0.125" | 0.048" | 0.106" | 0.140" | 0.130" | Yes | |
| 40W | 3.0dB | 4GHz | 17dB |
|
0.515" | 0.250" | 0.125" | 0.048" | 0.106" | 0.140" | 0.130" | Yes | |
| 40W | 4.0dB | 3GHz | 17dB |
|
0.515" | 0.250" | 0.125" | 0.048" | 0.106" | 0.140" | 0.130" | Yes | |
| 40W | 6.0dB | 4GHz | 17dB |
|
0.515" | 0.250" | 0.125" | 0.048" | 0.106" | 0.140" | 0.130" | Yes | |
| 40W | 7.0dB | 3.5GHz | 17dB |
|
0.515" | 0.250" | 0.125" | 0.048" | 0.106" | 0.140" | 0.130" | Yes | |
| 40W | 8.0dB | 3.5GHz | 17dB |
|
0.515" | 0.250" | 0.125" | 0.048" | 0.106" | 0.140" | 0.130" | Yes | |
| 40W | 9.0dB | 3.5GHz | 17dB |
|
0.515" | 0.250" | 0.125" | 0.048" | 0.106" | 0.140" | 0.130" | Yes | |
| 40W | 10.0dB | 4GHz | 20dB |
|
0.515" | 0.250" | 0.125" | 0.048" | 0.106" | 0.140" | 0.130" | Yes | |
| 40W | 11.0dB | 4GHz | 20dB |
|
0.515" | 0.250" | 0.125" | 0.048" | 0.106" | 0.140" | 0.130" | Yes | |
| 40W | 12.0dB | 3GHz | 20dB |
|
0.515" | 0.250" | 0.125" | 0.048" | 0.106" | 0.140" | 0.130" | Yes | |
| 40W | 13.0dB | 3.5GHz | 19dB |
|
0.515" | 0.250" | 0.125" | 0.048" | 0.106" | 0.140" | 0.130" | Yes | |
| 40W | 14.0dB | 3GHz | 17dB |
|
0.515" | 0.250" | 0.125" | 0.048" | 0.106" | 0.140" | 0.130" | Yes | |
| 40W | 15.0dB | 3GHz | 17dB |
|
0.515" | 0.250" | 0.125" | 0.048" | 0.106" | 0.140" | 0.130" | Yes | |
| 40W | 16.0dB | 3GHz | 17dB |
|
0.515" | 0.250" | 0.125" | 0.048" | 0.106" | 0.140" | 0.130" | Yes | |
| 40W | 20.0dB | 3GHz | 20dB |
|
0.515" | 0.250" | 0.125" | 0.048" | 0.106" | 0.140" | 0.130" | Yes | |
| 40W | 30.0dB | 0.5GHz | 32dB |
|
0.515" | 0.250" | 0.125" | 0.048" | 0.106" | 0.140" | 0.130" | Yes | |
| 50W | 2.0dB | 3GHz | 17dB |
|
0.515" | 0.250" | 0.125" | 0.040" | 0.106" | 0.140" | 0.130" | Yes | |
| 50W | 2.5dB | 3GHz | 17dB |
|
0.515" | 0.250" | 0.125" | 0.040" | 0.106" | 0.140" | 0.130" | Yes | |
| 50W | 3.0dB | 3GHz | 17dB |
|
0.515" | 0.250" | 0.125" | 0.040" | 0.106" | 0.140" | 0.130" | Yes | |
| 100W | 0.5dB | 2.5GHz | 20dB |
 |
0.800" | 0.230" | 0.580" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 100W | 1.0dB | 4GHz | 20dB |
|
0.800" | 0.230" | 0.580" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 100W | 1.5dB | 2.5GHz | 20dB |
|
0.800" | 0.230" | 0.580" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 100W | 10.0dB | 3GHz | 20dB |
|
0.800" | 0.230" | 0.580" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 100W | 11.0dB | 3GHz | 20dB |
|
0.800" | 0.230" | 0.580" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 100W | 13.0dB | 3GHz | 20dB |
|
0.800" | 0.230" | 0.580" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 100W | 15.0dB | 3GHz | 20dB |
|
0.800" | 0.230" | 0.580" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 100W | 20.0dB | 2GHz | 20dB |
 |
0.975" | 0.375" | 0.725" | 0.040" | 0.167" | 0.200" | 0.130" | Yes | |
| 100W | 30.0dB | 2GHz | 20dB |
|
0.975" | 0.375" | 0.725" | 0.040" | 0.167" | 0.200" | 0.130" | Yes | |
150W |
0 to 20dB | 6GHz | 17dB |
|
1.100" | 0.500" | 0.800" | 0.040" | 0.123" | 0.160" | 0.170" | Yes | |
| 150W | 1.0dB | 4GHz | 20dB |
|
0.925" | 0.394" | 0.669" | 0.050" | 0.105" | 0.140" | 0.126" | Yes | |
| 150W | 1.5dB | 4GHz | 20dB |
|
0.800" | 0.230" | 0.580" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 150W | 2.0dB | 4GHz | 20dB |
|
0.800" | 0.230" | 0.580" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 150W | 2.0dB | 2.5GHz | 17dB |
|
0.925" | 0.394" | 0.669" | 0.050" | 0.105" | 0.140" | 0.126" | Yes | |
| 150W | 3.0dB | 4GHz | 20dB |
|
0.800" | 0.230" | 0.580" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 150W | 3.0dB | 4GHz | 18dB |
|
0.925" | 0.394" | 0.669" | 0.050" | 0.105" | 0.140" | 0.126" | Yes | |
| 150W | 4.0dB | 3GHz | 15dB |
|
0.925" | 0.394" | 0.669" | 0.050" | 0.105" | 0.140" | 0.126" | Yes | |
| 150W | 5.0dB | 4GHz | 18dB |
|
0.925" | 0.394" | 0.669" | 0.050" | 0.105" | 0.140" | 0.126" | Yes | |
| 150W | 6.0dB | 2.5GHz | 17dB |
|
0.800" | 0.230" | 0.580" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 150W | 10.0dB | 4GHz | 17dB |
|
0.925" | 0.394" | 0.669" | 0.050" | 0.105" | 0.140" | 0.126" | Yes | |
| 150W | 20.0dB | 3GHz | 17dB |
|
0.925" | 0.394" | 0.669" | 0.050" | 0.105" | 0.140" | 0.126" | Yes | |
| 150W | 25.0dB | 2.5GHz | 20dB |
|
0.925" | 0.394" | 0.669" | 0.050" | 0.105" | 0.140" | 0.126" | Yes | |
| 150W | 30.0dB | 2GHz | 24dB |
|
0.925" | 0.394" | 0.669" | 0.050" | 0.105" | 0.140" | 0.126" | Yes | |
| 250W | 30.0dB | 2GHz | 19dB |
 |
0.870" | 0.375" | 0.560" | 0.060" | 0.105" | 0.140" | 0.161" | Yes | |
| 300W | 0.5dB | 4GHz | 20dB |
|
0.800" | 0.230" | 0.580" | 0.040" | 0.125" | 0.170" | 0.130" | Yes | |
| 600W | 4.0dB | 1GHz | 20dB |
|
1.100" | 0.500" | 0.800" | 0.040" | 0.125" | 0.200" | 0.170" | Yes | |
| 800W | 30dB | 4.5GHz | 17dB |
 |
2.250" | 1.000" | n/a | 0.120" | 1.900" | 0.210" | 0.150" | Yes | |
| 1000W |
30dB | 4.5GHz | 17dB |
|
2.250" | 1.000" | n/a | 0.040" | 1.900" | .0230" | 0.150" | Yes | |
| 1200W | 2.0dB | 1GHz | 20dB |
|
1.100" | 0.500" | 0.800" | 0.040" | 0.125" | 0.200" | 0.170" | Yes | |
| 2000W | 1.0dB | 2GHz | 20dB |
|
1.100" | 0.500" | 0.800" | 0.040" | 0.125" | 0.200" | 0.170" | Yes | |
| 3000W | 0.7dB | 0.1GHz | 20dB |
 |
1.900" | 1.040" | 1.550" | 0.250" | 0.188" | 0.250" | 0.170" | Yes |
One Hole High Power
Flange Attenuator Configuration
Flange Attenuator Configuration
Two Hole High Power
Flange Attenuator Configuration
Flange Attenuator Configuration
Four Hole High Power
Flange Attenuator Configuration
Flange Attenuator Configuration
BeO High Power Flanged Attenuators:
AlN High Power Flanged RF Attenuators:
|
CW Power
(Max) (W) |
Value (dB) |
Freq.
(Max) (GHz) |
Return
Loss (Typ.) |
Config.
|
A
Length |
B Width |
C
Hole to Hole or Hole to Edge |
D
Lead Width |
E
From Bottom Face of Lead |
F (Max) Height |
G Hole Diameter |
RoHS
|
Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10W | 2.0dB | 4GHz | 18dB |
|
0.300" | 0.200" | 0.100" | 0.040" | 0.105" | 0.140" | 0.116" | Yes | |
| 10W | 3.0dB | 4GHz | 17dB |
|
0.300" | 0.200" | 0.100" | 0.040" | 0.105" | 0.140" | 0.116" | Yes | |
| 10W | 4.0dB | 5.5GHz | 19dB |
|
0.300" | 0.200" | 0.100" | 0.040" | 0.105" | 0.140" | 0.116" | Yes | |
| 10W | 5.0dB | 5.5GHz | 19dB |
|
0.300" | 0.200" | 0.100" | 0.040" | 0.105" | 0.140" | 0.116" | Yes | |
| 10W | 10.0dB | 4GHz | 14dB |
|
0.300" | 0.200" | 0.100" | 0.040" | 0.105" | 0.140" | 0.116" | Yes | |
| 10W | 20.0dB | 4GHz | 17dB |
|
0.300" | 0.200" | 0.100" | 0.040" | 0.105" | 0.140" | 0.116" | Yes | |
| 20W | 3.0dB | 4GHz | 19dB |
 |
0.515" | 0.250" | 0.125" | 0.040" | 0.106" | 0.140" | 0.116" | Yes | |
| 20W | 4.0dB | 4GHz | 20dB |
|
0.515" | 0.250" | 0.125" | 0.040" | 0.106" | 0.140" | 0.116" | Yes | |
| 20W | 6.0dB | 6GHz | 17dB |
|
0.515" | 0.250" | 0.125" | 0.040" | 0.106" | 0.140" | 0.116" | Yes | |
| 20W | 10.0dB | 3GHz | 23dB |
|
0.515" | 0.250" | 0.125" | 0.040" | 0.106" | 0.140" | 0.116" | Yes | |
| 20W | 30.0dB | 4GHz | 17dB |
|
0.515" | 0.250" | 0.125" | 0.040" | 0.106" | 0.140" | 0.116" | Yes | |
| 40W | 2.0dB | 4GHz | 19dB |
|
0.515" | 0.250" | 0.125" | 0.040" | 0.106" | 0.140" | 0.116" | Yes | |
| 40W | 3.0dB | 4GHz | 19dB |
|
0.515" | 0.250" | 0.125" | 0.040" | 0.106" | 0.140" | 0.116" | Yes | |
| 40W | 10.0dB | 2GHz | 19dB |
|
0.515" | 0.250" | 0.125" | 0.040" | 0.106" | 0.140" | 0.116" | Yes | |
| 40W | 15.0dB | 2GHz | 19dB |
|
0.515" | 0.250" | 0.125" | 0.040" | 0.106" | 0.140" | 0.116" | Yes | |
| 40W | 20.0dB | 2GHz | 19dB |
|
0.515" | 0.250" | 0.125" | 0.040" | 0.106" | 0.140" | 0.116" | Yes | |
| 50W | 2.0dB | 4GHz | 18dB |
|
0.515" | 0.250" | 0.125" | 0.040" | 0.106" | 0.140" | 0.116" | Yes | |
| 50W | 3.0dB | 4GHz | 19dB |
|
0.515" | 0.250" | 0.125" | 0.040" | 0.106" | 0.140" | 0.116" | Yes | |
| 50W | 4.0dB | 4GHz | 20dB |
|
0.515" | 0.250" | 0.125" | 0.040" | 0.106" | 0.140" | 0.116" | Yes | |
| 50W | 5.0dB | 5GHz | 17dB |
|
0.515" | 0.250" | 0.125" | 0.040" | 0.106" | 0.140" | 0.116" | Yes | |
| 50W | 10.0dB | 4GHz | 17dB |
|
0.515" | 0.250" | 0.125" | 0.040" | 0.106" | 0.140" | 0.116" | Yes | |
| 50W | 20.0dB | 4GHz | 17dB |
|
0.515" | 0.250" | 0.125" | 0.040" | 0.106" | 0.140" | 0.116" | Yes | |
| 75W | 10.0dB | 3GHz | 22dB |
|
0.515" | 0.250" | 0.125" | 0.040" | 0.106" | 0.140" | 0.116" | Yes | |
| 75W | 13.0dB | 3.5GHz | 22dB |
|
0.515" | 0.250" | 0.125" | 0.040" | 0.106" | 0.140" | 0.116" | Yes | |
| 75W | 14.0dB | 4GHz | 19GHz |
|
0.515" | 0.250" | 0.125" | 0.040" | 0.106" | 0.140" | 0.116" | Yes | |
| 75W | 15.0dB | 4GHz | 20dB |
|
0.515" | 0.250" | 0.125" | 0.040" | 0.106" | 0.140" | 0.116" | Yes | |
| 75W | 17.0dB | 2GHz | 21dB |
|
0.515" | 0.250" | 0.125" | 0.040" | 0.106" | 0.140" | 0.116" | Yes | |
| 75W | 20.0dB | 4GHz | 17dB |
 |
0.515" | 0.250" | 0.125" | 0.040" | 0.106" | 0.140" | 0.116" | Yes | |
| 100W | 2.0dB | 2GHz | 18dB |
 |
0.800" | 0.230" | 0.580" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 100W | 3.0dB | 2GHz | 20dB |
|
0.800" | 0.230" | 0.580" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 100W | 3.0dB | 2GHz | 15dB |
|
0.800" | 0.230" | 0.580" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 100W | 4.0dB | 3GHz | 17dB |
|
0.800" | 0.230" | 0.580" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 100W | 6.0dB | 3GHz | 19dB |
|
0.800" | 0.230" | 0.580" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 100W | 9.0dB | 2GHz | 20dB |
|
0.800" | 0.230" | 0.580" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 100W | 10.0dB | 2GHz | 20dB |
|
0.800" | 0.230" | 0.580" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 100W | 18.0dB | 3GHz | 16dB |
|
0.800" | 0.230" | 0.580" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 100W | 19.0dB | 3GHz | 20dB |
|
0.800" | 0.230" | 0.580" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 100W | 20.0dB | 3GHz | 18dB |
|
0.800" | 0.230" | 0.580" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 100W | 21.0dB | 3GHz | 24dB |
|
0.800" | 0.230" | 0.580" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 100W | 30.0dB | 2.5GHz | 25dB |
|
0.800" | 0.230" | 0.580" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 150W | 1.7dB | 2GHz | 15dB |
|
0.800" | 0.230" | 0.580" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 150W | 3.0dB | 2GHz | 15dB |
|
0.575" | 0.230" | 0.110" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 150W | 3.0dB | 2GHz | 15dB |
|
0.800" | 0.230" | 0.580" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 150W | 6.0dB | 2GHz | 15dB |
|
0.575" | 0.230" | 0.110" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 150W | 20.0dB | 2.5GHz | 26dB |
|
0.800" | 0.230" | 0.580" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 150W | 20.0dB | 2.5GHz | 20dB |
|
0.975" | 0.230" | 0.725" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 150W | 25.0dB | 2.5GHz | 25dB |
|
0.800" | 0.230" | 0.580" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 150W | 29.5dB | 2GHz | 25dB |
|
0.800" | 0.230" | 0.580" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 150W | 30dB | 2.5GHz | 25dB |
|
0.800" | 0.230" | 0.580" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 250W | 1dB | 3GHz | 18dB |
 leads off center |
0.975" | 0.375" | 0.725" | 0.040" | 0.165" | 0.200" | 0.130" | Yes | |
| 250W | 2dB | 3GHz | 17dB |
|
0.975" | 0.375" | 0.725" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 250W | 3dB | 3GHz | 14dB |
|
0.975" | 0.375" | 0.725" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 250W | 5dB | 2.5GHz | 22dB |
|
0.975" | 0.375" | 0.725" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 250W | 5dB | 3GHz | 12dB |
|
0.975" | 0.375" | 0.725" | 0.040" | 0.187" | 0.220" | 0.130" | Yes | |
| 250W | 6dB | 3GHz | 12dB |
|
0.975" | 0.375" | 0.725" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 250W | 6dB | 3GHz | 15dB |
|
0.975" | 0.375" | 0.725" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 250W | 8dB | 3GHz | 13dB |
|
0.975" | 0.375" | 0.725" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 250W | 10dB | 3GHz | 14dB |
|
0.975" | 0.375" | 0.725" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 250W | 30dB | 2GHz | 17.5dB |
|
0.975" | 0.375" | 0.725" | 0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 250W | 30dB | 2GHz | 17.5dB |
|
0.975" | 0.375" | 0.725" | 0.040" | 0.187" | 0.220" | 0.130" | Yes | |
| 250W | 30dB | 3GHz | 12dB |
|
0.975" | 0.375" | 0.725" | 0.040" | 0.105" | 0.140" | 0.130" | Yes |
Barry Industries offers flanged resistors with Copper Tungsten mounting flanges designed specifically for pulsed power/ high thermal cycle applications. Click here for more info!
Additional Resorces:
