Leaded Attenuators
H Series
H Series

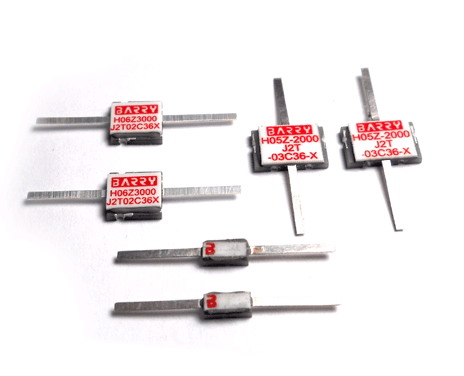

Barry Industries manufacturers leaded attenuators on AlN or BeO. These leaded resistors are available in numerous sizes with standard attenuation values from 0dB to 30db. Other values available. Maximum power disipation is 250W.

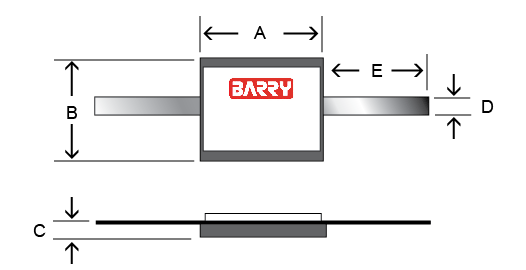

Leaded Attenuator Configuration
Click on link for available Data Sheet. For more options, please contact us with your requirement.
(Click on column header to sort)
(Click on column header to sort)
Below are Barry Industries' standard leaded attenuators. Engineers are welcome to contact us and we will design a custom leaded attenuator to your exact specifications.
AlN Note: 2dB to 30dB available. Special ohmic value requests welcome.
AlN Note: 2dB to 30dB available. Special ohmic value requests welcome.
Specifications:
Resistive Element:
Substrate:
Leads:
Resistive Element:
Substrate:
Leads:
Proprietary Thick Film
BeO or AlN
Silver Plated Copper (.005" thick)
BeO or AlN
Silver Plated Copper (.005" thick)
General Notes:
• All power ratings assume an operating base plate temperature of 100°C
• Standard value range is 0dB and 30dB. Others are available.
• Mechanical tolerance is ±0.010" unless otherwise noted
• Minimum lead length on all devices is 0.125"
• Individual drawings available upon request
• Outline drawing above depicts a covered device, castellations (where used) are not shown
• Power ratings over 250W are available by contacting the factory
• Other configurations available, custom requests are welcome
• All power ratings assume an operating base plate temperature of 100°C
• Standard value range is 0dB and 30dB. Others are available.
• Mechanical tolerance is ±0.010" unless otherwise noted
• Minimum lead length on all devices is 0.125"
• Individual drawings available upon request
• Outline drawing above depicts a covered device, castellations (where used) are not shown
• Power ratings over 250W are available by contacting the factory
• Other configurations available, custom requests are welcome
|
CW Power (Max) (W)
|
Value (dB) |
Substrate |
A Dimension
|
B Dimension
|
C Dimension
|
D Dimension
|
E Dimension (Max)
|
Freq. (Max) (GHz)
|
RoHS
|
Part Number |
|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 1 | AlN | 0.200" | 0.100" | 0.040" | 0.040" | 0.370" | 3 | Yes | H04Z-0100-J2T-00C36-X |
| 10 | 2 | AlN | 0.200" | 0.100" | 0.040" | 0.040" | 0.370" | 3 | Yes | H04Z-0200-J2T-00C36-X |
| 10 | 3 | AlN | 0.200" | 0.100" | 0.040" | 0.040" | 0.370" | 6 | Yes | H04Z-0300-J2T-00C36-X |
| 10 | 5 | AlN | 0.200" | 0.100" | 0.040" | 0.040" | 0.370" | 4 | Yes | H04Z-0500-J2T-00C36-X |
| 10 | 10 | AlN | 0.200" | 0.100" | 0.040" | 0.040" | 0.370" | 3 | Yes | H04Z-1000-J2T-00C36-X |
| 10 | 20 | AlN | 0.200" | 0.100" | 0.040" | 0.040" | 0.370" | 3 | Yes | H04Z-2000-J2T-00C36-X |
| 40 | 20 | BeO | 0.230" | 0.350" | 0.040" | 0.040" | 0.370" | 3 | Yes | H05Z-2000-J99-00C36-X |
| 40 | 25 | BeO | 0.230" | 0.350" | 0.040" | 0.040" | 0.370" | 3 | Yes | H05Z-2500-J99-00C36-X |
| 40 | 30 | BeO | 0.230" | 0.350" | 0.040" | 0.040" | 0.370" | 3 | Yes | H05Z-3000-J99-00C36-X |
| 40 | 20 | AlN | 0.250" | 0.250" | 0.040" | 0.040" | 0.370" | 4 | Yes | H06Z-2000J2T-02C36-X |
| 40 | 30 | AlN | 0.250" | 0.250" | 0.040" | 0.040" | 0.370" | 4 | Yes | H06Z-3000J2T-02C36-X |
| 40 | 2 | AlN | 0.250" | 0.250" | 0.040" | 0.040" | 0.370" | 3 | Yes | H06Z-0200J2T-06C36-X |
| 100 | 5 | AlN | 0.230" | 0.350" | 0.040" | 0.040" | 0.370" | 2 | Yes | H05Z-0500J2T-04C36-X |
| 100 | 20 | AlN | 0.230" | 0.350" | 0.040" | 0.040" | 0.370" | 2 | Yes | H05Z-2000J2T-22C36-X |
| 100 | 30 | AlN | 0.230" | 0.350" | 0.040" | 0.040" | 0.370" | 2 | Yes | H05Z-3000J2T-22C36-X |
| 100 | 20 | AlN | 0.230" | 0.350" | 0.040" | 0.040" | 0.370" | 2.5 | Yes | H05Z-2000J2T-26C36-X |
| 100 | 30 | AlN | 0.230" | 0.350" | 0.040" | 0.040" | 0.370" | 2.5 | Yes | H05Z-3000J2T-26C36-X |
| 100 | 3 | AlN | 0.230" | 0.350" | 0.040" | 0.040" | 0.370" | 2.5 | Yes | H05Z-0300J2T-27C36-X |
| 100 | 6 | AlN | 0.230" | 0.350" | 0.040" | 0.040" | 0.370" | 2.5 | Yes | H05Z-0600J2T-27C36-X |
| 100 | 10 | AlN | 0.230" | 0.350" | 0.040" | 0.040" | 0.370" | 2.5 | Yes | H05Z-1000J2T-27C36-X |
| 150 | 20 | BeO | 0.230" | 0.350" | 0.040" | 0.040" | 0.370" | 4 | Yes | H05Z-1000J99-00C36-X |
| 150 | 20 | AlN | 0.230" | 0.350" | 0.040" | 0.040" | 0.370" | 2.5 | Yes | H05Z-2000J2T-03C36-X |
| 150 | 30 | AlN | 0.230" | 0.350" | 0.040" | 0.040" | 0.370" | 2.5 | Yes | H05Z-3000J2T-09C36-X |
| 150 | 30 | AlN | 0.230" | 0.350" | 0.040" | 0.040" | 0.370" | 2.5 | Yes | H05Z-3000J2T-17C36-X |
| 250 | 30 | AlN | 0.375" | 0.375" | 0.040" | 0.040 | 0.370" | 2 | Yes | H08Z-300J2T-02C36-X |
