Leaded Resistors
K Series
K Series

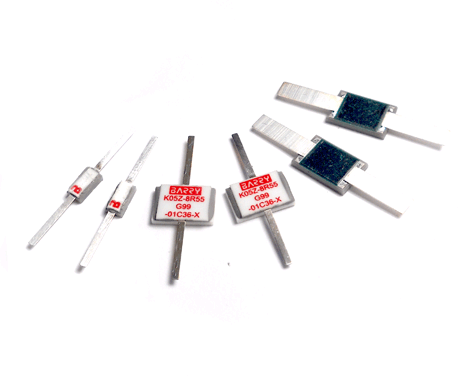

Barry Industries manufacturers leaded resistors on AlN or BeO. These leaded resistors are available in numerous sizes with standard resistance of 50Ω or 100Ω and resistor tolerance to ±1%. 0.5Ω to 20KΩ available. Maximum power disipation is 200W.
|
CW Power (Max) (W)
|
Substrate |
A Dimension
|
B Dimension
|
C Dimension
|
D Dimension
|
E Dimension (Max)
|
Capacitance
at 1MHz (Typical) (pF) |
RoHS
|
Part Number |
|---|---|---|---|---|---|---|---|---|---|
| 20 | AlN | 0.200" | 0.100" | 0.040" | 0.040" | 0.375" | 0.73 | Yes | K04Z-XXXXG2T-02C36-X |
| 40 | BeO | 0.200" | 0.100" | 0.040" | 0.040" | 0.375" | 0.70 | Yes | K04Z-XXXXG99-02C36-X |
| 50 | AlN | 0.230" | 0.350" | 0.040" | 0.040" | 0.370" | 1.34 | Yes | K05Z-XXXXG2T-05C36-X |
| 50 | AlN | 0.230" | 0.350" | 0.060" | 0.040" | 0.370" | 1.00 | Yes | K05Z-XXXXG2U-02C36-X |
| 100 | AlN | 0.230" | 0.350" | 0.040" | 0.040" | 0.370" | 1.73 | Yes | K05Z-XXXXG2T-01C36-X |
| 100 | AlN | 0.230" | 0.350" | 0.060" | 0.040" | 0.370" | 1.73 | Yes | K05Z-XXXXG2U-03C36-X |
| 100 | BeO | 0.230" | 0.350" | 0.060" | 0.040" | 0.370" | 1 | Yes | K05Z-XXXXG9F-05C36-X |
| 150 | BeO | 0.230" | 0.350" | 0.040" | 0.040" | 0.370" | 1.73 | Yes | K05Z-XXXXG99-01C36-X |
| 150 | AlN | 0.375" | 0.250" | 0.040" | 0.120" | 0.370" | X | Yes | K07Z-XXXXJ2T-00J36-X |
| 200 | BeO | 0.230" | 0.350" | 0.040" | 0.040" | 0.370" | 2.15 | Yes | K05Z-XXXXG99-06C36-X |
Leaded Resistor Configuration
Click on link for available Data Sheet. For more options, please contact us with your requirement.
(Click on column header to sort)
(Click on column header to sort)
Below are Barry Industries' standard leaded resistors. Engineers are welcome to contact us and we will design a custom leaded resistor to your exact specifications.
AlN Note: 10Ω to 1KΩ ohm available. Special ohmic value requests welcome.
AlN Note: 10Ω to 1KΩ ohm available. Special ohmic value requests welcome.
Specifications:
Resistive Element:
Substrate:
Leads:
Resistive Element:
Substrate:
Leads:
Proprietary Thick Film
BeO or AlN
Silver Plated Copper (.005" thick)
BeO or AlN
Silver Plated Copper (.005" thick)
General Notes:
• All power ratings assume an operating base plate temperature of 100°C
• Standard resistance tolerance is ±5%, ±2% is available by contacting factory
• Standard resistance values are 50Ω and 100Ω. 0.5Ω to 20KΩ are available
• Mechanical tolerance is ±0.010" unless otherwise noted
• Minimum lead length on all devices is 0.125"
• Individual drawings available upon request
• Outline drawing above depicts a covered device, castellations (where used) are not shown
• Power ratings over 200W are available by contacting the factory
• Other configurations available, custom requests are welcome
• All power ratings assume an operating base plate temperature of 100°C
• Standard resistance tolerance is ±5%, ±2% is available by contacting factory
• Standard resistance values are 50Ω and 100Ω. 0.5Ω to 20KΩ are available
• Mechanical tolerance is ±0.010" unless otherwise noted
• Minimum lead length on all devices is 0.125"
• Individual drawings available upon request
• Outline drawing above depicts a covered device, castellations (where used) are not shown
• Power ratings over 200W are available by contacting the factory
• Other configurations available, custom requests are welcome
