Chip Terminations
TS, TV, TVC & TZC Series

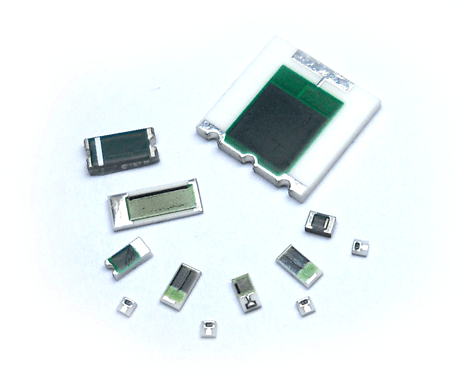

Barry Industries manufacturers chip terminations on Alumina, AlN or BeO in Half Wrap to Ground and Surface Mount configurations. These chip terminations are available in sizes 0202 to 3737 and offer favorable return loss over a broad spectrum. Maximum power disipation is 250W.
Also see:
Leaded Terminations
Flanged Terminations
Part Number/
Data Sheet
Size
Config.
Thickness
Substrate
Metalization
CW Power (Max) (W)
Freq. (Max) (GHz)
RoHS
TV0202ZZ-50R0WN-90 0202 Half Wrap 0.010" Alumina Au 0.05 6 Yes
TV0202ZZ-50R0WN-91 0202 Half Wrap 0.015" Alumina Au 0.05 6 Yes
TV0202ZZ-50R0WN-95 0202 Half Wrap 0.010" BeO Au 0.15 6 Yes
TV0202ZZ-50R0WN-96 0202 Half Wrap 0.015" BeO Au over PtPdAu (PPG) with PPG Ground 0.13 6 Yes
TV0202ZZ-50R0WN-98 0202 Half Wrap 0.025" BeO Au over PtPdAu (PPG) with PPG Ground 0.05 6 Yes
TV0402ZZ-50R0WN-90 0402 Half Wrap 0.010" Alumina Multiple Options 1.5 26 Available
TV0402ZZ-50R0WN-91 0402 Half Wrap 0.015" Alumina Multiple Options 1 26 Available
TV0402ZZ-50R0WN-96 0402 Half Wrap 0.015" BeO Multiple Options 2.5 26 Available
TV0404ZZ-50R0JN-91
 0404 Half Wrap 0.015" Alumina Multiple Options 0.25 60 Available
TV0404ZZ-50R0JN-2Q 0404 Half Wrap 0.015" AlN Multiple Options 1 60 Available
TV0505GA-50R0JN-91 0505 Half Wrap 0.015" Alumina Au 3 6 Yes
TV0505HA-50R0GN-95-01 0505 Half Wrap 0.010" BeO Au over PtPdAu (PPG) with PPG Ground 5 10 Yes
TV0505CB-50R0JN-95 0505 Half Wrap 0.010" BeO SnPb over Ni over Ag 5 10 No
TV0605ZZ-50R0WN-90 0605 Half Wrap 0.010" Alumina Multiple Options 5 3 Available
TV0605ZZ-50R0WN-91 0605 Half Wrap 0.015" Alumina Multiple Options 5 3 Available
TV0605ZZ-50R0WN-93 0605 Half Wrap 0.025" Alumina Multiple Options 4 3 Available
TV0605ZZ-50R0WN-95 0605 Half Wrap 0.010" BeO Multiple Options 14 3 Available
TV0605ZZ-50R0WN-96 0605 Half Wrap 0.015" BeO Multiple Options 10 3 Available
TV0605ZZ-50R0WN-98 0605 Half Wrap 0.025" BeO Multiple Options 6 3 Available
TV0805ZGA-50R0JN-90 0805 Half Wrap 0.010" Alumina Au 2 3 Yes
TV0805CB-50R0JN-91 0805 Half Wrap 0.015" Alumina SnPb over Ni over Ag 2 3 No
TV0805CB-50R0JN-98 0805 Half Wrap 0.025" BeO SnPb over Ni over Ag 15 3 No
TS0808ZZ-50R0JN-2S
 0808 Surface Mount 0.025" BeO Multiple Options 4 44 Available
TV1005ZZ-50R0WN-91 1005 Half Wrap 0.015" Alumina Multiple Options 5 16 Available
TV1005CT-50R0JN-2Q 1005 Half Wrap 0.015" AlN Matte Tin over Ni over Ag 10 3 Yes
TV1005CB-50R0JN-95 1005 Half Wrap 0.010" BeO SnPb over Ni over Ag 20 18 No
TV1005CB-50R0JN-96-01 1005 Half Wrap 0.015" BeO SnPb over Ni over Ag 20 18 No
TV1005HA-50R0JN-96 1005 Half Wrap 0.015" BeO Au over PtPdAu (PPG) with PPG Ground 20 10 Yes
TV1020CT-50R0JN-2T 1020 Half Wrap 0.040" AlN Matte Tin over Ni over Ag 30 8 Yes
TVC1206CB-50R0JN-93 1206 Half Wrap 0.025" Alumina SnPb over Ni over Ag 5 4 No
TVC1206CT-50R0JN-91 1206 Half Wrap 0.015" Alumina Matte Tin over Ni over Ag 6 5 Yes
TV1206CB-50R0JN-96-04 1206 Half Wrap 0.015" BeO SnPb over Ni over Ag 40 18 No
TVC1206CT-50R0JN-96 1206 Half Wrap 0.015" BeO Matte Tin over Ni over Ag 24 5 Yes
TVC1206CB-50R0JN-98 1206 Half Wrap 0.025" BeO SnPb over Ni over Ag 20 4 No
TVC1206CT-50R0JN-2S 1206 Half Wrap 0.025" AlN Matte Tin over Ni over Ag 20 3 Yes
TVC1206CT-50R0JN-98 1206 Half Wrap 0.025" BeO Matte Tin over Ni over Ag 20 4 Yes
TVC1907CT-50R0JN-93 1907 Half Wrap 0.025" Alumina Matte Tin over Ni over Ag 10 3 Yes
TVC2010CB-50R0JN-99 2010 Half Wrap 0.040" BeO SnPb over Ni over Ag 10 4 No
TVC2010CT-50R0JN-2T-01 2010 Half Wrap 0.040" AlN Matte Tin over Ni over Ag 30 2 Yes
TVC2010CB-50R0JN-99-01 2010 Half Wrap 0.040" BeO SnPb over Ni over Ag 60 2 No
TVC2010CT-50R0JN-99-01 2010 Half Wrap 0.040" BeO Matte Tin over Ni over Ag 60 2 Yes
TVC2525CB-50R0JN-99-01 2525 Half Wrap 0.040" BeO SnPb over Ni over Ag 100 1 No
TVC2525CB-50R0JN-99 2525 Half Wrap 0.040" BeO SnPb over Ni over Ag 100 8.4 No
TVC2525CT-50R0JN-2T-04 2525 Half Wrap 0.040" AlN Matte Tin over Ni over Ag 100 2.5 Yes
TVC2525CT-50R0JN-2T-09 2525 Half Wrap 0.040" AlN Matte Tin over Ni over Ag 100 6 Yes
TVC2525CT-50R0JN-99 2525 Half Wrap 0.040" BeO Matte Tin over Ni over Ag 100 6 Yes
TZC2525CT-50R0JN-99 2525 Surface Mount 0.040" BeO Matte Tin over Ni over Ag 40 2 Yes
TZC2525CB-50R0JN-99 2525 Surface Mount 0.040" BeO SnPb over Ni over Ag 100 2 Yes
TZC2525CT-50R0JN-99 2525 Surface Mount 0.040" BeO Matte Tin over Ni over Ag 100 2 Yes
TZC2525CB-50R0JN-9F 2525 Surface Mount 0.060" BeO SnPb over Ni over Ag 100 2 No
TZC2525CT-50R0JN-2T 2525 Surface Mount 0.040" AlN Matte Tin over Ni over Ag 100 4 Yes
TVC2335CT-50R0JN-99-02 2335 Half Wrap 0.040" BeO Matte Tin over Ni over Ag 100 3 Yes
TVC2335CT-50R0GN-2T-15 2335 Half Wrap 0.040" AlN Matte Tin over Ni over Ag 100 5 Yes
TVC2335CT-50R0JN-2T-14 2335 Half Wrap 0.040" AlN Matte Tin over Ni over Ag 100 4 Yes
TVC2335CT-50R0JN-99-02 2335 Half Wrap 0.040" BeO Matte Tin over Ni over Ag 100 3 Yes
TVC2335CT-50R0JN-2T-05 2335 Half Wrap 0.040" AlN Matte Tin over Ni over Ag 150 2.5 Yes
TVC2335CT-50R0JN-2T-10 2335 Half Wrap 0.040" AlN Matte Tin over Ni over Ag 150 3 Yes
TVC3020CT-50R0GN-99 3020 Half Wrap 0.040" BeO Matte Tin over Ni over Ag 200 2 Yes
TVC3523CT-50R0JN-2T 3523 Half Wrap 0.040" AlN Matte Tin over Ni over Ag 100 4 Yes
TVC3725CB-50R0JN-99-03 3725 Half Wrap 0.040" BeO SnPb over Ni over Ag 150 4 No
TVC3725CT-50R0JN-2T-01 3725 Half Wrap 0.040" AlN Matte Tin over Ni over Ag 150 3.5 Yes
TVC3725CT-50R0JN-2U 3725 Half Wrap 0.060" AlN Matte Tin over Ni over Ag 150 2 Yes
TVC3725CT-50R0JN-99-03 3725 Half Wrap 0.040" BeO Matte Tin over Ni over Ag 150 4 Yes
TVC3725CT-50R0JN-2T-09 3725 Half Wrap 0.040" AlN Matte Tin over Ni over Ag 250 2.5 Yes
TZC3725CB-50R0JN-99 3725 Surface Mount 0.040" BeO SnPb over Ni over Ag 50 2 No
TZC3725CT-50R0JN-99 3725 Surface Mount 0.040" BeO Matte Tin over Ni over Ag 50 2 Yes
TZC3725CT-50R0JN-2T-01 3725 Surface Mount 0.040" AlN Matte Tin over Ni over Ag 150 3.5 Yes
TVC3737CB-50R0JN-99 3737 Half Wrap 0.040" BeO SnPb over Ni over Ag 250 4 No
TVC3737CT-50R0JN-99 3737 Half Wrap 0.040" BeO Matte Tin over Ni over Ag 250 4 Yes
TVC3737CT-50R0JN-2T-04 3737 Half Wrap 0.040" AlN Matte Tin over Ni over Ag 250 3 Yes
TVC3737CT-50R0JN-2T-08 3737 Half Wrap 0.040" AlN Matte Tin over Ni over Ag 250 3.5 Yes
Half Wrap Chip Termination Configurations
TV Style
Top only input pad one side, wrap to full metal backpad (GND) on the other side
TVC Style
Top only input pad on one side, castellated connection to full metal backpad (GND) on the other side
TZC Style
Surface mountable with castellated connections on both sides
SMT Chip Termination Configuration
Click on link for available Data Sheet. For more options, please contact us with your requirement.

(Click on column header to sort)

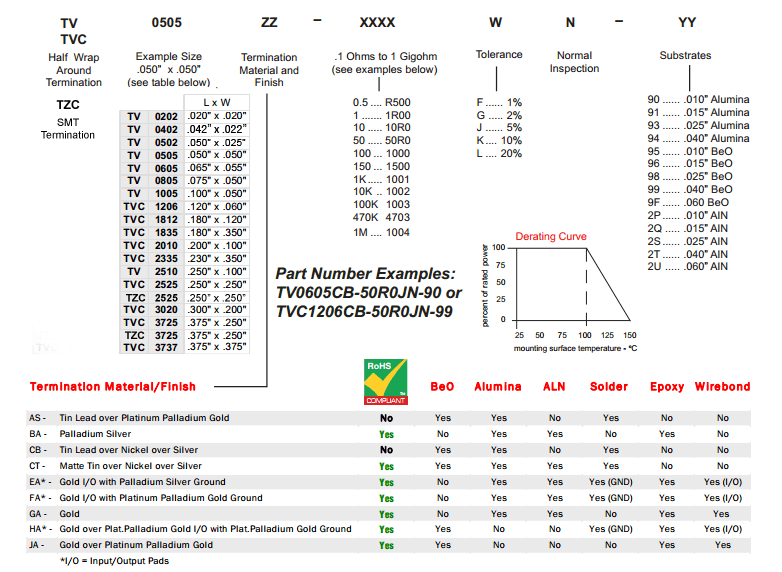

Ordering Information
Below are Barry Industries' standard chip terminations. Engineers are welcome to contact us and we will design a custom chip termination to your exact specifications.

AlN Note: 10Ω to 1KΩ ohm available. Special ohmic value requests welcome.
