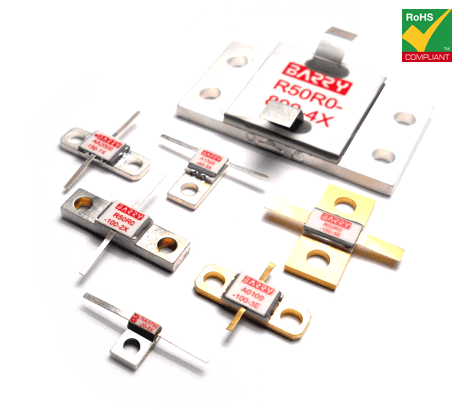

Flanged Resistors
R or RA Series
R or RA Series
|
CW Power
(Max) (W) |
DC Resistance (ohms) |
Configuration
|
Ceramic |
A
Length |
B Width |
C
Hole to Hole or Hole to Edge |
D
Lead Width |
E From Bottom Face of Lead |
F (Max) Height |
G Hole Diameter |
RoHS
|
Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 50 |
 |
BeO | 0.300" | 0.200" | 0.100" | 0.040" | 0.105" | 0.140" | 0.116" (1X) |
Yes | |
| 20 | 100 |
|
BeO | 0.300" | 0.200" | 0.100" | 0.040" | 0.105" | 0.140" | 0.116" (1X) |
Yes | |
| 30 | 50 |
|
BeO | 0.515 | 0.250" | 0.125" | 0.060" | 0.105" | 0.140" | 0.130" (1X) |
Yes | |
| 30 | 100 |
|
BeO | 0.515 | 0.250" | 0.125" | 0.060" | 0.105" | 0.140" | 0.130" (1X) |
Yes | |
| 40 | 50 |
 |
BeO | 0.800" | 0.230" | 0.600"- 0.560" |
0.040" | 0.105" | 0.140" | 0.130" (2X) |
Yes | |
| 40 | 100 |
|
BeO | 0.800" | 0.230" | 0.600"- 0.560" |
0.040" | 0.105" | 0.140" | 0.130" (2X) |
Yes | |
| 50 | 50 |
|
BeO | 0.800" | 0.230" | 0.600"- 0.560" |
0.040" | 0.105" | 0.140" | 0.130" (2X) |
Yes | |
| 50 | 100 |
|
BeO | 0.800" | 0.230" | 0.600"- 0.560" |
0.040" | 0.105" | 0.140" | 0.130" (2X) |
Yes | |
| 100 | 50 |
|
BeO | 0.800" | 0.230" | 0.600"- 0.560" |
0.040" | 0.105" | 0.140" | 0.130" (2X) |
Yes | |
| 100 | 100 |
|
BeO | 0.800" | 0.230" | 0.600"- 0.560" |
0.040" | 0.105" | 0.140" | 0.130" (2X) |
Yes | |
| 150 | 50 |
|
BeO | 0.800" | 0.230" | 0.600"- 0.560" |
0.040" | 0.105" | 0.140" | 0.130" (2X) |
Yes | |
| 150 | 100 |
|
BeO | 0.800" | 0.230" | 0.600"- 0.560" |
0.040" | 0.105" | 0.140" | 0.130" (2X) |
Yes | |
| 250 | 50 |
|
BeO | 0.975" | 0.375" | 0.725" | 0.120" | 0.187" | 0.210" | 0.130" (2X) |
Yes | |
| 250 | 100 |
|
BeO | 0.975" | 0.375" | 0.725" | 0.120" | 0.187" | 0.210" | 0.130" (2X) |
Yes | |
| 250 | 50 |
|
BeO | 0.975" | 0.375" | 0.725" | 0.120" | 0.166" | 0.200" | 0.130" (2X) |
Yes | |
| 250 | 100 |
|
BeO | 0.975" | 0.375" | 0.725" | 0.120" | 0.166" | 0.200" | 0.130" (2X) |
Yes | |
| 400 | 50 |
|
BeO | 1.100" | 0.500" | 0.800" | 0.250" | 0.165" | 0.200" | 0.170" (2X) |
Yes | |
| 400 | 100 |
|
BeO | 1.100" | 0.500" | 0.800" | 0.250" | 0.165" | 0.200" | 0.170" (2X) |
Yes | |
| 800 |
50 |
 |
BeO | 1.900" | 1.040" | 1.550" | 0.250" | 0.190" | 0.250" | 0.170" (4X) |
Yes | |
| 800 |
100 |
|
BeO | 1.900" | 1.040" | 1.550" | 0.250" | 0.190" | 0.250" | 0.170" (4X) |
Yes | |
| 1200 |
50 |
|
BeO | 1.900" | 1.040" | 1.550" | 0.250" | 0.355" | 0.375" | 0.170" (4X) |
Yes | |
| 1200 |
100 |
|
BeO | 1.900" | 1.040" | 1.550" | 0.250" | 0.355" | 0.375" | 0.170" (4X) |
Yes |
One Hole High Power
Flange Resistor Configuration
Flange Resistor Configuration
Below are some of Barry Industries' Standard High Power Flanged Resistors. Engineers are welcome to contact us and we will design a Custom High Power Flanged Resistor to your exact specifications.
Customer defined testing is available for all Barry devices.
Customer defined testing is available for all Barry devices.
Specifications:
Resistive Element:
Substrate:
Mounting Flange
Leads:
Resistive Element:
Substrate:
Mounting Flange
Leads:
Proprietary Thick Film
AlN or BeO
Silver Plated Copper
0.005" Thick Silver Plated Copper
AlN or BeO
Silver Plated Copper
0.005" Thick Silver Plated Copper
BeO High Power Flanged Resistors:
AlN High Power Flanged Resistors:
|
CW Power
(Max) (W) |
DC Resistance (ohms) |
Configuration
|
Ceramic |
A
Length |
B Width |
C
Hole to Hole |
D
Lead Width |
E From Bottom Face of Lead |
F (Max) Height |
G Hole Diameter |
RoHS
|
Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 50 |
|
AlN | 0.300" | 0.200" | 0.100" | 0.040" | 0.105" | 0.140" | 0.116" | Yes | |
| 10 | 100 |
|
AlN | 0.300" | 0.200" | 0.100" | 0.040" | 0.105" | 0.140" | 0.116" | Yes | |
| 20 | 50 |
|
AlN | 0.300" | 0.200" | 0.100" | 0.040" | 0.105" | 0.140" | 0.116" | Yes | |
| 20 | 100 |
|
AlN | 0.300" | 0.200" | 0.100" | 0.040" | 0.105" | 0.140" | 0.116" | Yes | |
| 30 | 50 |
|
AlN | 0.515 | 0.250" | 0.125" | 0.060" | 0.105" | 0.140" | 0.130" | Yes | |
| 30 | 100 |
|
AlN | 0.515 | 0.250" | 0.125" | 0.060" | 0.105" | 0.140" | 0.130" | Yes | |
| 40 | 50 |
|
AlN | 0.800" | 0.230" | 0.600"- 0.560" |
0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 40 | 100 |
|
AlN | 0.800" | 0.230" | 0.600"- 0.560" |
0.040" | 0.105" | 0.140" | 0.130" | Yes | |
| 50 | 50 |
|
AlN | 0.800" | 0.230" | 0.600"- 0.560" |
0.040" | 0.125" | 0.170" | 0.130" | Yes | |
| 50 | 100 |
|
AlN | 0.800" | 0.230" | 0.600"- 0.560" |
0.040" | 0.125" | 0.170" | 0.130" | Yes | |
| 60 | 50 |
|
AlN | 0.515 | 0.250" | 0.125" | 0.060" | 0.105" | 0.140" | 0.130" | Yes | |
| 60 | 100 |
|
AlN | 0.515 | 0.250" | 0.125" | 0.060" | 0.105" | 0.140" | 0.130" | Yes | |
| 100 | 50 |
|
AlN | 0.800" | 0.230" | 0.600"- 0.560" |
0.040" | 0.125" | 0.170" | 0.130" | Yes | |
| 100 | 100 |
|
AlN | 0.800" | 0.230" | 0.600"- 0.560" |
0.040" | 0.125" | 0.170" | 0.130" | Yes | |
| 150 | 50 |
|
AlN | 0.870" | 0.375" | 0.560" | 0.120" | 0.105" | 0.140" | 0.161" | Yes | |
| 150 | 100 |
|
AlN | 0.870" | 0.375" | 0.560" | 0.120" | 0.105" | 0.140" | 0.161" | Yes | |
| 250 | 50 |
|
AlN | 0.975" | 0.375" | 0.725" | 0.120" | 0.187" | 0.210" | 0.130" | Yes | |
| 250 | 100 |
|
AlN | 0.975" | 0.375" | 0.725" | 0.120" | 0.187" | 0.210" | 0.130" | Yes |
Two Hole High Power
Flange Resistor Configuration
Flange Resistor Configuration
Barry Industries offers flanged resistors with Copper Tungsten mounting flanges designed specifically for pulsed power/ high thermal cycle applications. Check out our entire line of terminations for Pulsed Power & High Thermal Cycle Applications
Four Hole High Power
Flange Resistor Configuration
Flange Resistor Configuration
Additional Resorces:
General Notes:
• All power ratings assume an operating flange temperature of 100°C unless otherwise stated.
• Standard resistance values are 50Ω and 100Ω. Others are available.
• Mechanical tolerance is ±0.010" unless otherwise noted.
• Individual drawings available upon request.
• Power ratings over 1200W are available by contacting the factory.
• Other configurations available, custom requests are welcome.
• All power ratings assume an operating flange temperature of 100°C unless otherwise stated.
• Standard resistance values are 50Ω and 100Ω. Others are available.
• Mechanical tolerance is ±0.010" unless otherwise noted.
• Individual drawings available upon request.
• Power ratings over 1200W are available by contacting the factory.
• Other configurations available, custom requests are welcome.
Derating Curve
Copper vs. Copper Tungsten
Copper vs. Copper Tungsten
Barry Industries offers flanged resistors with Copper Tungsten mounting flanges designed specifically for pulsed power/ high thermal cycle applications. Click here for more info!
