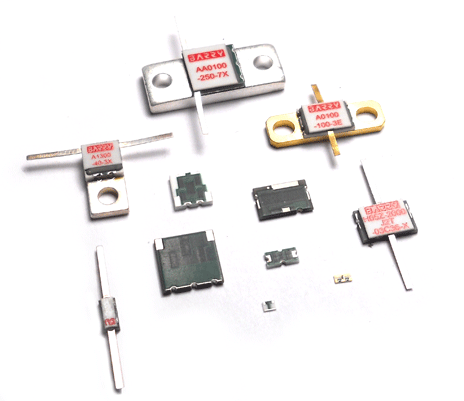

All Attenuators by CW Power
|
CW Power
(Max) (W) |
Form | Configuration | Footprint A Dimension |
Footprint B Dimension |
Thickness/ H Dimension |
Substrate |
RoHS
|
Part Number/ Data Sheet |
|---|---|---|---|---|---|---|---|---|
| 0.1 | Chip | 3-Sided Wraparound | 0.090" | 0.040" | 0.015" | Alumina | No | AT0904CB-XXXXJN-91 |
| 0.1 | Chip | 3-Sided Wraparound | 0.090" | 0.040" | 0.015" | Alumina | Yes | AT0904CT-XXXXJN-91 |
| 0.15 | Chip | 1/4 Wraparound | 0.040" | 0.050" | 0.015" | Alumina | No | AK0405CB-XXXXJN-91 |
| 0.15 | Chip | 3-Sided Wraparound | 0.040" | 0.050" | 0.015" | Alumina | Yes | AT0405BA-XXXXJN-91 |
| 0.15 | Chip | 3-Sided Wraparound | 0.040" | 0.050" | 0.015" | Alumina | No | AT0405CB-XXXXJN-91 |
| 0.15 | Chip | 3-Sided Wraparound | 0.040" | 0.050" | 0.015" | Alumina | Yes | AT0405CT-XXXXJN-91 |
| 0.15 | Chip | 3-Sided Wraparound | 0.070" | 0.060" | 0.015" | Alumina | No | AT0706CB-XXXXJN-91 |
| 0.5 | Chip | Half Wraparound | 0.040" | 0.050" | 0.015" | Alumina | Yes | AV0405GA-0600JN-91 |
| 0.75 | Chip | Half Wraparound | 0.090" | 0.040" | 0.010" | Alumina | Yes | AV0904CB-XXXXJN-91 |
| 0.75 | Chip | Half Wraparound | 0.090" | 0.040" | 0.015" | Alumina | Yes | AV0904CT-XXXXJN-91 |
| 0.75 | Chip | Half Wraparound | 0.090" | 0.040" | 0.015" | Alumina | Yes | AV0904GA-XXXXJN-91 |
| 0.8 | Chip | Half Wraparound | 0.040" | 0.050" | 0.010" | Alumina | No | AV0405CB-0100JN-90 |
| 5 | Chip | Balanced PI- Topside I/O Castellated Connection to Groundplane |
0.200" | 0.100" | 0.040" | Alumina | Yes | ABC2010CT-0100JN-94-08 |
| 5 | Chip | Balanced PI- Topside I/O Castellated Connection to Groundplane |
0.200" | 0.100" | 0.040" | Alumina | Yes | ABC2010CT-0300JN-94-08 |
| 5 | Chip | Balanced PI- Topside I/O Castellated Connection to Groundplane |
0.200" | 0.100" | 0.040" | Alumina | Yes | ABC2010CT-1000JN-94-10 |
| 5 | Chip | Balanced PI- Topside I/O Castellated Connection to Groundplane |
0.200" | 0.100" | 0.040" | Alumina | Yes | ABC2010CT-2000JN-94-11 |
| 5 | Chip | Balanced PI- Topside I/O Castellated Connection to Groundplane |
0.200" | 0.100" | 0.025" | Alumina | Yes | ABC2010CT-2100JN-93-05 |
| 5 | Chip | Balanced PI- Topside I/O Castellated Connection to Groundplane |
0.200" | 0.100" | 0.025" | Alumina | Yes | ABC2010CT-2500JN-93-05 |
| 5 | Chip | Balanced PI- Topside I/O Castellated Connection to Groundplane |
0.200" | 0.100" | 0.040" | Alumina | Yes | ABC2010CT-3000JN-94-11 |
| 5 | Chip | Balanced PI- Topside I/O Castellated Connection to Groundplane |
0.200" | 0.100" | 0.025" | Alumina | Yes | ABC2010CT-3200JN-93-05 |
| 5 | Chip | 3-Sided Wraparound | 0.200" | 0.100" | 0.025" | Alumina | Yes | ATC2010CT-0050JN-93 |
| 5 | Chip | 3-Sided Wraparound | 0.200" | 0.100" | 0.025" | Alumina | Yes | ATC2010CT-0100JN-93 |
| 5 | Chip | 3-Sided Wraparound | 0.200" | 0.100" | 0.025" | Alumina | Yes | ATC2010CT-0200JN-93 |
| 5 | Chip | 3-Sided Wraparound | 0.200" | 0.100" | 0.025" | Alumina | Yes | ATC2010CT-0300JN-93 |
| 5 | Chip | 3-Sided Wraparound | 0.200" | 0.100" | 0.025" | Alumina | Yes | ATC2010CT-0400JN-93 |
| 5 | Chip | 3-Sided Wraparound | 0.200" | 0.100" | 0.025" | Alumina | Yes | ATC2010CT-1000JN-93 |
| 5 | Chip | 3-Sided Wraparound | 0.200" | 0.100" | 0.025" | Alumina | Yes | ATC2010CT-1500JN-93-02 |
| 5 | Chip | 3-Sided Wraparound | 0.200" | 0.100" | 0.025" | Alumina | Yes | ATC2010CT-2000JN-93 |
| 5 | Chip | 3-Sided Wraparound | 0.200" | 0.100" | 0.025" | Alumina | Yes | ATC2010CT-3000JN-93 |
| 10 | Chip | Balanced PI- Topside I/O Castellated Connection to Groundplane |
0.200" | 0.100" | 0.025" | BeO | Yes | ABC2010CT-0050JN-98 |
| 10 | Chip | Balanced PI- Topside I/O Castellated Connection to Groundplane |
0.200" | 0.100" | 0.025" | BeO | Yes | ABC2010CT-0100JN-98 |
| 10 | Chip | Balanced PI- Topside I/O Castellated Connection to Groundplane |
0.200" | 0.100" | 0.040" | AlN | Yes | ABC2010CT-0300GN-2T |
| 10 | Chip | Balanced PI- Topside I/O Castellated Connection to Groundplane |
0.200" | 0.100" | 0.040" | AlN | Yes | ABC2010CT-0300JN-2T |
| 10 | Chip | Balanced PI- Topside I/O Castellated Connection to Groundplane |
0.200" | 0.100" | 0.040" | AlN | Yes | ABC2010CT-0500GN-2T |
| 10 | Chip | Balanced PI- Topside I/O Castellated Connection to Groundplane |
0.200" | 0.100" | 0.040" | AlN | Yes | ABC2010CT-0600GN-2T |
| 10 | Chip | Balanced PI- Topside I/O Castellated Connection to Groundplane |
0.200" | 0.100" | 0.040" | AlN | Yes | ABC2010CT-0600JN-2T |
| 10 | Chip | Balanced PI- Topside I/O Castellated Connection to Groundplane |
0.200" | 0.100" | 0.040" | AlN | Yes | ABC2010CT-1000JN-2T |
| 10 | Chip | Balanced PI- Topside I/O Castellated Connection to Groundplane |
0.200" | 0.100" | 0.040" | AlN | Yes | ABC2010CT-1500GN-2T |
| 10 | Chip | Balanced PI- Topside I/O Castellated Connection to Groundplane |
0.200" | 0.100" | 0.040" | AlN | Yes | ABC2010CT-2000GN-2T |
| 10 | Chip | Balanced PI- Topside I/O Castellated Connection to Groundplane |
0.200" | 0.100" | 0.040" | AlN | Yes | ABC2010CT-3000GN-2T |
| 10 | Chip | Balanced PI- Topside I/O Castellated Connection to Groundplane |
0.200" | 0.100" | 0.025" | BeO | Yes | ABC2010CT-3000JN-98-06 |
| 10 | Chip | 3-Sided Wraparound | 0.200" | 0.100" | 0.025" | AlN | Yes | ATC2010CT |
| 10 | Leaded | Leaded | 0.200" | 0.100" | 0.040" | AlN | Yes | H04Z-0200-J2T-00C36-X |
| 10 | Leaded | Leaded | 0.200" | 0.100" | 0.040" | AlN | Yes | H04Z-0200-J2T-00C36-X |
| 10 | Leaded | Leaded | 0.200" | 0.100" | 0.040" | AlN | Yes | H04Z0300-J2T-00C36-X |
| 10 | Leaded | Leaded | 0.200" | 0.100" | 0.040" | AlN | Yes | H04Z-0500-J2T-00C36-X |
| 10 | Leaded | Leaded | 0.200" | 0.100" | 0.040" | AlN | Yes | H04Z-1000-J2T-00C36-X |
| 10 | Leaded | Leaded | 0.200" | 0.100" | 0.040" | AlN | Yes | H04Z-2000-J2T-00C36-X |
| 10 | Flanged (Copper) |
B Flange Configuration | 0.300" | 0.200" | 0.140" | AlN | Yes | AA0100-10-3X |
| 10 | Flanged (Copper) |
B Flange Configuration | 0.300" | 0.200" | 0.140" | AlN | Yes | AA0200-10-3X |
| 10 | Flanged (Copper) |
B Flange Configuration | 0.300" | 0.200" | 0.140" | AlN | Yes | AA0300-10-3X |
| 10 | Flanged (Copper) |
B Flange Configuration | 0.300" | 0.200" | 0.140" | AlN | Yes | AA0500-10-3X |
| 10 | Flanged (Copper) |
B Flange Configuration | 0.300" | 0.200" | 0.140" | AlN | Yes | AA1000-10-3X |
| 10 | Flanged (Copper) |
B Flange Configuration | 0.300" | 0.200" | 0.140" | AlN | Yes | AA2000-10-3X |
| 10 | Flanged (Copper) |
B Flange Configuration | 0.300" | 0.200" | 0.140" | BeO | Yes | A1000-10-6X |
| 10 | Flanged (Copper) |
B Flange Configuration | 0.300" | 0.200" | 0.140" | BeO | Yes | A2000-10-6X |
| 10 | Flanged (Copper) |
B Flange Configuration | 0.300" | 0.200" | 0.140" | BeO | Yes | A3000-10-6X |
| 15 | Chip | 3-Sided Wraparound | 0.250" | 0.250" | 0.040" | Alumina | Yes | ATC2525CT-0100JN-94 |
| 15 | Chip | 3-Sided Wraparound | 0.250" | 0.250" | 0.040" | Alumina | Yes | ATC2525CT-0300JN-94 |
| 15 | Chip | 3-Sided Wraparound | 0.250" | 0.250" | 0.040" | Alumina | Yes | ATC2525CT-1000JN-94 |
| 15 | Chip | 3-Sided Wraparound | 0.250" | 0.250" | 0.040" | Alumina | Yes | ATC2525CT-2000JN-94 |
| 20 | Chip | Half Wraparound | 0.250" | 0.250" | 0.040" | AlN | Yes | AVC2525CT-0100JN-2T-05 |
| 20 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | AlN | Yes | AA0300-20-3X |
| 20 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | AlN | Yes | AA0400-20-3X |
| 20 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | AlN | Yes | AA0600-20-3X |
| 20 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | AlN | Yes | AA1000-20-3X |
| 20 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | AlN | Yes | AA3000-20-3X |
| 20 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | BeO | Yes | A0100-20-3X |
| 20 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | BeO | Yes | A0200-20-3X |
| 20 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | BeO | Yes | A0300-20-3X |
| 20 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | BeO | Yes | A0400-20-3X |
| 20 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | BeO | Yes | A0600-20-3X |
| 20 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | BeO | Yes | A1000-20-3X |
| 20 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | BeO | Yes | A2000-20-3X |
| 20 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | BeO | Yes | A3000-20-3X |
| 25 | Chip | Half Wraparound | 0.250" | 0.250" | 0.040" | AlN | Yes | AVC2335CT-1000JN-2T-09 |
| 30 | Chip | 3-Sided Wraparound | 0.250" | 0.250" | 0.040" | Alumina | Yes | ATC2525CT-1000JN-99 |
| 40 | Chip | Half Wraparound | 0.250" | 0.250" | 0.040" | BeO | No | AVC2525CB-0100JN-99 |
| 40 | Chip | Half Wraparound | 0.250" | 0.250" | 0.040" | BeO | No | AVC2525CB-0200JN-99 |
| 40 | Chip | Half Wraparound | 0.250" | 0.250" | 0.040" | AlN | Yes | AVC2525CT-0200JN-2T-06 |
| 40 | Chip | Half Wraparound | 0.250" | 0.250" | 0.040" | BeO | No | AVC2525CB-0300JN-99 |
| 40 | Chip | Half Wraparound | 0.250" | 0.250" | 0.040" | BeO | No | AVC2525CB-0400JN-99 |
| 40 | Chip | Half Wraparound | 0.250" | 0.250" | 0.040" | BeO | No | AVC2525CB-0500JN-99 |
| 40 | Chip | Half Wraparound | 0.250" | 0.250" | 0.040" | BeO | Yes | AVC2525CT-0500JN-99 |
| 40 | Chip | Half Wraparound | 0.250" | 0.250" | 0.040" | BeO | No | AVC2525CB-0600JN-99 |
| 40 | Chip | Half Wraparound | 0.250" | 0.250" | 0.040" | AlN | Yes | AVC2525CT-0600JN-2T-04 |
| 40 | Chip | Half Wraparound | 0.250" | 0.250" | 0.040" | BeO | No | AVC2525CB-0800JN-99 |
| 40 | Chip | Half Wraparound | 0.250" | 0.250" | 0.040" | BeO | No | AVC2525CB-0900JN-99 |
| 40 | Chip | Half Wraparound | 0.250" | 0.250" | 0.040" | BeO | No | AVC2525CB-1000JN-99 |
| 40 | Chip | Half Wraparound | 0.250" | 0.250" | 0.040" | AlN | Yes | AVC2525CT-1000JN-2T-03 |
| 40 | Chip | Half Wraparound | 0.250" | 0.250" | 0.040" | BeO | No | AVC2525CB-1300JN-99 |
| 40 | Chip | Half Wraparound | 0.250" | 0.250" | 0.040" | BeO | No | AVC2525CB-1400JN-99 |
| 40 | Chip | Half Wraparound | 0.250" | 0.250" | 0.040" | BeO | No | AVC2525CB-1600JN-99 |
| 40 | Chip | Half Wraparound | 0.250" | 0.250" | 0.040" | BeO | No | AVC2525CB-2000JN-99 |
| 40 | Chip | Half Wraparound | 0.250" | 0.250" | 0.040" | AlN | Yes | AVC2525CT-2000JN-2T-02 |
| 40 | Chip | Half Wraparound | 0.250" | 0.250" | 0.040" | AlN | Yes | AVC2525CT-3000JN-2T-02 |
| 40 | Chip | Half Wraparound | 0.250" | 0.250" | 0.040" | BeO | Yes | AVC2525CT-3000JN-99 |
| 40 | Leaded | Leaded | 0.230" | 0.350" | 0.040" | BeO | Yes | H05Z-2000-J99-00C36-X |
| 40 | Leaded | Leaded | 0.230" | 0.350" | 0.040" | BeO | Yes | H05Z-2500-J99-00C36-X |
| 40 | Leaded | Leaded | 0.230" | 0.350" | 0.040" | BeO | Yes | H05Z-3000-J99-00C36-X |
| 40 | Leaded | Leaded | 0.250" | 0.250" | 0.040" | AlN | Yes | H06Z-2000J2T-02C36-X |
| 40 | Leaded | Leaded | 0.250" | 0.250" | 0.040" | AlN | Yes | H06Z-3000J2T-02C36-X |
| 40 | Leaded | Leaded | 0.250" | 0.250" | 0.040" | AlN | Yes | H06Z-0200J2T-06C36-X |
| 40 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | AlN | Yes | AA0200-40-3X |
| 40 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | AlN | Yes | AA0300-40-3X |
| 40 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | AlN | Yes | AA1000-40-3X |
| 40 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | AlN | Yes | AA1500-40-3X |
| 40 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | AlN | Yes | AA2000-40-3X |
| 40 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | AlN | Yes | AA3000-40-3X |
| 40 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | AlN | Yes | AA3000-40-9X |
| 40 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | BeO | Yes | A0050-40-3X |
| 40 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | BeO | Yes | A0100-40-3X |
| 40 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | BeO | Yes | A0300-40-3X |
| 40 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | BeO | Yes | A0400-40-3X |
| 40 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | BeO | Yes | A0600-40-3X |
| 40 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | BeO | Yes | A0700-40-3X |
| 40 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | BeO | Yes | A0800-40-3X |
| 40 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | BeO | Yes | A0900-40-3X |
| 40 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | BeO | Yes | A1000-40-3X |
| 40 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | BeO | Yes | A1200-40-3X |
| 40 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | BeO | Yes | A1300-40-3X |
| 40 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | BeO | Yes | A1400-40-3X |
| 40 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | BeO | Yes | A1500-40-3X |
| 40 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | BeO | Yes | A2000-40-3X |
| 40 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | BeO | Yes | A3000-40-3X |
| 40 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | BeO | Yes | A0100-40-1X |
| 40 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | BeO | Yes | A0200-40-1X |
| 40 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | BeO | Yes | A0300-40-1X |
| 40 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | BeO | Yes | A3000-40-1X |
| 50 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | AlN | Yes | AA0200-50-1X |
| 50 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | AlN | Yes | AA0300-50-1X |
| 50 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | AlN | Yes | AA0400-50-1X |
| 50 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | AlN | Yes | AA0500-50-1X |
| 50 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | AlN | Yes | AA1000-50-1X |
| 50 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | AlN | Yes | AA2000-50-1X |
| 50 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | AlN | Yes | AA3000-50-1X |
| 50 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | BeO | Yes | A0200-50-5X |
| 50 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | BeO | Yes | A0250-50-5X |
| 50 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | BeO | Yes | A0300-50-5X |
| 75 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | AlN | Yes | AA1000-75-1X |
| 75 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | AlN | Yes | AA1300-75-1X |
| 75 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | AlN | Yes | AA1500-75-1X |
| 75 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | AlN | Yes | AA1700-75-1X |
| 75 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | AlN | Yes | AA2000-75-2X |
| 75 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | AlN | Yes | AA2000-75-4X |
| 100 | Chip | Balanced PI- Topside I/O Castellated Connection to Groundplane |
0.230" | 0.350" | 0.040" | AlN | Yes | ABC2335CT-0500JN-2T-27 |
| 100 | Chip | Half Wraparound | 0.250" | 0.250" | 0.040" | AlN | Yes | AVC2525CT-0500JN-2T-07 |
| 100 | Chip | Half Wraparound | 0.230" | 0.350" | 0.040" | AlN | Yes | AVC2335CT-1000JN-23 |
| 100 | Chip | Half Wraparound | 0.230" | 0.350" | 0.040" | AlN | Yes | AVC2335CT-2000GN-2T-22 |
| 100 | Chip | Half Wraparound | 0.230" | 0.350" | 0.040" | AlN | Yes | AVC2335CT-2000JN-2T-26 |
| 100 | Chip | Half Wraparound | 0.230" | 0.350" | 0.040" | AlN | Yes | AVC2335CT-3000GN-2T-26 |
| 100 | Leaded | Leaded | 0.230" | 0.350" | 0.040" | AlN | Yes | H05Z-0500J2T-04C36-X |
| 100 | Leaded | Leaded | 0.230" | 0.350" | 0.040" | AlN | Yes | H05Z-2000J2T-22C36-X |
| 100 | Leaded | Leaded | 0.230" | 0.350" | 0.040" | AlN | Yes | H05Z-3000J2T-22C36-X |
| 100 | Leaded | Leaded | 0.230" | 0.350" | 0.040" | AlN | Yes | H05Z-2000J2T-26C36-X |
| 100 | Leaded | Leaded | 0.230" | 0.350" | 0.040" | AlN | Yes | H05Z-3000J2T-26C36-X |
| 100 | Leaded | Leaded | 0.230" | 0.350" | 0.040" | AlN | Yes | H05Z-0300J2T-27C36-X |
| 100 | Leaded | Leaded | 0.230" | 0.350" | 0.040" | AlN | Yes | H05Z-0600J2T-27C36-X |
| 100 | Leaded | Leaded | 0.230" | 0.350" | 0.040" | AlN | Yes | H05Z-1000J2T-27C36-X |
| 100 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | AlN | Yes | AA0300-100-3X |
| 100 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | AlN | Yes | AA0600-100-3X |
| 100 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | AlN | Yes | AA2000-100-3X |
| 100 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | AlN | Yes | AA3000-100-3X |
| 100 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | AlN | Yes | AA0500-100-8X |
| 100 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | AlN | Yes | AA0200-100-9X |
| 100 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | AlN | Yes | AA0300-100-9X |
| 100 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | AlN | Yes | AA1000-100-9X |
| 100 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | AlN | Yes | AA1000-100-12X |
| 100 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | AlN | Yes | AA0300-100-13X |
| 100 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | AlN | Yes | AA0500-100-13X |
| 100 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | AlN | Yes | AA0600-100-13X |
| 100 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | AlN | Yes | AA1000-100-13X |
| 100 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | AlN | Yes | AA3000-100-13X |
| 100 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | AlN | Yes | AA0500-100-14X |
| 100 | Flanged (Copper) |
B Flange Configuration | 0.975" | 0.375" | 0.200" | BeO | Yes | A2000-100-2X |
| 100 | Flanged (Copper Tungsten) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | BeO | Yes | A0100-100-3E |
| 100 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | BeO | Yes | A0100-100-9X |
| 100 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | BeO | Yes | A0300-100-10X |
| 150 | Chip | Balanced PI- Topside I/O Castellated Connection to Groundplane |
0.230" | 0.350" | 0.040" | BeO | Yes | ABC2335CT-0100GN-99 |
| 150 | Chip | Balanced PI- Topside I/O Castellated Connection to Groundplane |
0.230" | 0.350" | 0.040" | BeO | Yes | ABC2335CT-0200GN-99 |
| 150 | Chip | Balanced PI- Topside I/O Castellated Connection to Groundplane |
0.230" | 0.350" | 0.040" | BeO | Yes | ABC2335CT-0300GN-99 |
| 150 | Chip | Balanced PI- Topside I/O Castellated Connection to Groundplane |
0.230" | 0.350" | 0.040" | BeO | Yes | ABC2335CT-0600JN-99 |
| 150 | Chip | Half Wraparound | 0.230" | 0.350" | 0.040" | AlN | Yes | AVC2335CT-2000JN-2T-03 |
| 150 | Chip | Half Wraparound | 0.375" | 0.250" | 0.040" | AlN | Yes | AVC3725CT-2000JN-2T-09 |
| 150 | Chip | Half Wraparound | 0.230" | 0.350" | 0.040" | AlN | Yes | AVC2335CT-2950GN-2T-16 |
| 150 | Chip | Half Wraparound | 0.375" | 0.250" | 0.040" | AlN | Yes | AVC3725CT-3000JN-2T-10 |
| 150 | Leaded | Leaded | 0.230" | 0.350" | 0.040" | BeO | Yes | H05Z-1000J99-00C36-X |
| 150 | Leaded | Leaded | 0.230" | 0.350" | 0.040" | AlN | Yes | H05Z-2000J2T-03C36-X |
| 150 | Leaded | Leaded | 0.230" | 0.350" | 0.040" | AlN | Yes | H05Z-3000J2T-09C36-X |
| 150 | Leaded | Leaded | 0.230" | 0.350" | 0.040" | AlN | Yes | H05Z-3000J2T-17C36-X |
| 150 | Flanged (Copper) |
B Flange Configuration | 0.800" | 0.230" | 0.140" | AlN | Yes | AA0300-150-1X |
| 150 | Flanged (Copper) |
B Flange Configuration | 0.800" | 0.230" | 0.140" | AlN | Yes | AA2000-150-1X |
| 150 | Flanged (Copper) |
B Flange Configuration | 0.575" | 0.230" | 0.160" | AlN | Yes | AA0300-150-2X |
| 150 | Flanged (Copper) |
A Flange Configuration | 0.975" | 0.230" | 0.140" | AlN | Yes | AA2000-150-4X |
| 150 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | AlN | Yes | AA2500-150-5X |
| 150 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | AlN | Yes | AA3000-150-5X |
| 150 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | AlN | Yes | AA3000-150-7X |
| 150 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | BeO | Yes | A0150-150-1X |
| 150 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | BeO | Yes | A0200-150-1X |
| 150 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | BeO | Yes | A0300-150-1X |
| 150 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | BeO | Yes | A0600-150-1X |
| 150 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | BeO | Yes | A1000-150-1X |
| 250 | Chip | Half Wraparound | 0.375" | 0.375" | 0.060" | AlN | Yes | AVC3737CT-0500JN-2T-06 |
| 250 | Chip | Half Wraparound | 0.375" | 0.250" | 0.040" | BeO | Yes | AVC3725CT-3000GN-99-02 |
| 250 | Chip | Half Wraparound | 0.375" | 0.375" | 0.060" | AlN | Yes | AVC3737CT-3000JN-2T-02 |
| 250 | Leaded | Leaded | 0.375" | 0.375" | 0.040" | AlN | Yes | H08Z-300J2T-02C36-X |
| 250 | Flanged (Copper) |
A Flange Configuration | 0.870" | 0.375" | 0.140" | BeO | Yes | A3000-250-4X |
| 250 | Flanged (Copper) |
A Flange Configuration | 0.975" | 0.375" | 0.170" | AlN | Yes | AA0500-250-10X |
| 250 | Flanged (Copper) |
A Flange Configuration | 0.975" | 0.375" | 0.140" | AlN | Yes | AA0175-250-17X |
| 250 | Flanged (Copper) |
A Flange Configuration | 0.975" | 0.375" | 0.140" | AlN | Yes | AA0800-250-15X |
| 250 | Flanged (Copper) |
A Flange Configuration | 0.975" | 0.375" | 0.200" | AlN | Yes | AA0100-250-18X |
Click on link for available Data Sheet. For more options, please contact us with your requirement.
(Click on column header to sort)
(Click on column header to sort)
Barry Industries offers flanged attenuators with Copper Tungsten mounting flanges designed specifically for pulsed power/ high thermal cycle applications. Check out our entire line of attenautors for Pulsed Power & High Thermal Cycle Applications
Barry Industries offers the largest selection of high power attenuators up to 250W. Below are our standard selection of power resistors. For power ratings above 250W please contact us.
Chip Attenuator
Leaded Attenuator
Flanged Attenuator - A Config.
Flanged Attenuator - B Config.
