Leaded Terminations

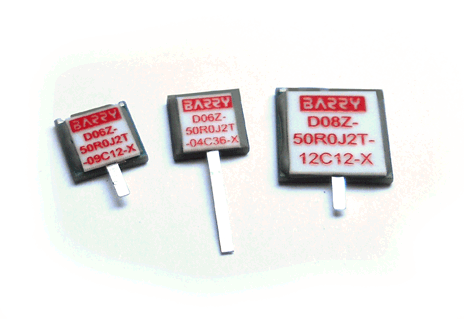

Barry Industries manufacturers leaded terminations on AlN or BeO. These leaded terminations are available in numerous sizes and offer favorable return loss over a broad spectrum. Maximum power disipation is 250W.
|
CW Power (Max) (W)
|
Substrate |
A Dimension
|
B Dimension
|
C Dimension
|
D Dimension
|
E Dimension (Max)
|
Freq. (Max) (GHz)
|
VSWR (Typical)
|
RoHS
|
Part Number |
|---|---|---|---|---|---|---|---|---|---|---|
| 10 | AlN | 0.100" | 0.050" | 0.015" | 0.025" | 0.370" | 3 | 1.15:1 | Yes | A01Z-50R0J2Q-01A36-Y |
| 20 | BeO | 0.100" | 0.050" | 0.015" | 0.025" | 0.370" | 18 | 1.30:1 | Yes | A01Z-50R0J96-01A36-Y |
| 20 | BeO | 0.120" | 0.060" | 0.025" | 0.040" | 0.370" | 4 | 1.20:1 | Yes | B02Z-50R0J98-00C36-Y |
| 20 | AlN | 0.120" | 0.060" | 0.025" | 0.040" | 0.370" | 3 | 1.20:1 | Yes | B02Z-50R0J2S-00C36-Y |
| 30 | AlN | 0.200" | 0.100" | 0.040" | 0.040" | 0.370" | 2 | 1.15:1 | Yes | D04Z-50R0J2T-01C36-X |
| 100 | BeO | 0.230" | 0.350" | 0.040" | 0.040" | 0.370" | 3 | 1.15:1 | Yes | D05Z-50R0J99-02C36-X |
| 100 | AlN | 0.230" | 0.350" | 0.040" | 0.040" | 0.370" | 6 | 1.15:1 1.30:1 (4.5 - 6GHz) |
Yes | D05Z-50R0J2T-14C36-X |
| 125 | BeO | 0.250" | 0.250" | 0.040" | 0.060" | 0.370" | 8.4 | 1.20:1 1:60:1 (6 - 8.4GHz) |
Yes | D06Z-50R0J99-00G36-X |
| 150 | AlN | 0.250" | 0.250" | 0.040" | 0.040" | 0.370" | 2.5 | 1.15:1 | Yes | D06Z-50R0J2T-04C36-X |
| 150 | AlN | 0.230" | 0.350" | 0.040" | 0.040" | 0.370" | 2.5 | 1.15:1 | Yes | D05Z-50R0J2T-05C36-X |
| 150 | BeO | 0.375" | 0.250" | 0.040" | 0.040" | 0.370" | 4 | 1.20:1 | Yes | D07Z-50R0J99-03C36-X |
| 150 | AlN | 0.375" | 0.250" | 0.040" | 0.040" | 0.370" | 3.5 | 1.20:1 1.10:1 (2 - 3.5GHz |
Yes | D07Z-50R0J2T-01C36-X |
| 250 | AlN | 0.375" | 0.250" | 0.040" | 0.040" | 0.370" | 2.5 | 1.25:1 | Yes | D07Z-50R0J2T-09C36-X |
| 250 | BeO | 0.375" | 0.375" | 0.040" | 0.040" | 0.370" | 4 | 1.20:1 1.40:1 (2.5 - 4GHz) |
Yes | D08Z-50R0J99-00C36-X |
| 250 | BeO | 0.375" | 0.375" | 0.040" | 0.040" | 0.370" | 3 | 1.25:1 | Yes | D08Z-50R0J2T-04C36-X |
Leaded Termination Configuration
Click on link for available Data Sheet. For more options, please contact us with your requirement.
(Click on column header to sort)
(Click on column header to sort)
Below are Barry Industries' standard leaded terminations. Engineers are welcome to contact us and we will design a custom leaded termination to your exact specifications.
AlN Note: 10Ω to 1KΩ ohm available. Special ohmic value requests welcome.
AlN Note: 10Ω to 1KΩ ohm available. Special ohmic value requests welcome.
Specifications:
Resistive Element:
Substrate:
Leads:
Resistive Element:
Substrate:
Leads:
Proprietary Thick Film
BeO or AlN
Silver Plated Copper (.005" thick)
BeO or AlN
Silver Plated Copper (.005" thick)
Note: A 'Y' at the end of the part number indicates the part does not take a cover, but may include a dab of epoxy.
General Notes:
• All power ratings assume an operating base plate temperature of 100°C
• Standard resistance tolerance is ±5%, ±2% is available by contacting factory
• Standard resistance values is 50Ω, values from 0.5Ω to 20KΩ are available
• Mechanical tolerance is ±0.010" unless otherwise noted
• Minimum lead length on all devices is 0.125"
• Individual drawings available upon request
• Outline drawing above depicts a covered device, castellations (where used) are not shown
• Power ratings over 250W are available by contacting the factory
• Other configurations available, custom requests are welcome
• All power ratings assume an operating base plate temperature of 100°C
• Standard resistance tolerance is ±5%, ±2% is available by contacting factory
• Standard resistance values is 50Ω, values from 0.5Ω to 20KΩ are available
• Mechanical tolerance is ±0.010" unless otherwise noted
• Minimum lead length on all devices is 0.125"
• Individual drawings available upon request
• Outline drawing above depicts a covered device, castellations (where used) are not shown
• Power ratings over 250W are available by contacting the factory
• Other configurations available, custom requests are welcome
