Wraparound Chip Resistors w/
One Extended Mounting Pad
RZ Series
One Extended Mounting Pad
RZ Series
Barry Industries manufacturers wraparound chip resistors with enlarged mounting pads on Alumina, AlN or BeO for solder or epoxy. These chip resistors are available in sizes 0805 to 2010 with standard resistance of 0.5Ω to 1MΩ and resistor tolerance to ±1%. Other values are available.
|
Part Number/
Data Sheet |
Size
|
Config.
|
Thickness
|
Substrate
|
Metallization
|
CW Power
(Max) (W) |
RoHS
|
|---|---|---|---|---|---|---|---|
| RZ0805CT-XXXXJN-2S | 0805 | Wraparound w/ One Extended Mounting Pad |
0.025" | AlN | Matte Tin over Ni over Ag | 3 | Yes |
| RZ0805CB-XXXXJN-2S | 0805 | Wraparound w/ One Extended Mounting Pad |
0.025" | AlN | SnPb over Ni over Ag | 3 | No |
| RZ0805CT-XXXXJN-98 | 0805 | Wraparound w/ One Extended Mounting Pad |
0.025" | BeO | Matte Tin over Ni over Ag | 5 | Yes |
| RZ0805CB-XXXXJN-98 | 0805 | Wraparound w/ One Extended Mounting Pad |
0.025" | BeO | SnPb over Ni over Ag | 5 | No |
| RZ1005CT-XXXXJN-2S | 1005 | Wraparound w/ One Extended Mounting Pad |
0.025" | AlN | Matte Tin over Ni over Ag | 8 | Yes |
| RZ1005CB-XXXXJN-2S | 1005 | Wraparound w/ One Extended Mounting Pad |
0.025" | AlN | SnPb over Ni over Ag | 8 | No |
| RZ1005CT-XXXXJN-98 | 1005 | Wraparound w/ One Extended Mounting Pad |
0.025" | BeO | Matte Tin over Ni over Ag | 8 | Yes |
| RZ1005CB-XXXXJN-98 | 1005 | Wraparound w/ One Extended Mounting Pad |
0.025" | BeO | SnPb over Ni over Ag | 8 | No |
| RZC1206CT-XXXXJN-2S | 1206 | Castellated Wraparound w/ One Extended Mounting Pad |
0.025" | AlN | Matte Tin over Ni over Ag | 10 | Yes |
| RZC1206CB-XXXXJN-2S | 1206 | Castellated Wraparound w/ One Extended Mounting Pad |
0.025" | AlN | SnPb over Ni over Ag | 10 | No |
| RZC1206CT-XXXXJN-98 | 1206 | Castellated Wraparound w/ One Extended Mounting Pad |
0.025" | BeO | Matte Tin over Ni over Ag | 12 | Yes |
| RZC1206CB-XXXXJN-98 | 1206 | Castellated Wraparound w/ One Extended Mounting Pad |
0.025" | BeO | SnPb over Ni over Ag | 12 | No |
| RZC2010CT-XXXXJN-2S | 2010 | Castellated Wraparound w/ One Extended Mounting Pad |
0.025" | AlN | Matte Tin over Ni over Ag | 30 | Yes |
| RZC2010CB-XXXXJN-2S | 2010 | Castellated Wraparound w/ One Extended Mounting Pad |
0.025" | AlN | SnPb over Ni over Ag | 30 | No |
| RZC2010CT-XXXXJN-2T | 2010 | Castellated Wraparound w/ One Extended Mounting Pad |
0.040" | AlN | Matte Tin over Ni over Ag | 30 | Yes |
| RZC2010CB-XXXXJN-2T | 2010 | Castellated Wraparound w/ One Extended Mounting Pad |
0.040" | AlN | SnPb over Ni over Ag | 30 | No |
| RZC2010CT-XXXXJN-99 | 2010 | Castellated Wraparound w/ One Extended Mounting Pad |
0.040" | BeO | Matte Tin over Ni over Ag | 30 | Yes |
| RZC2010CB-XXXXJN-99 | 2010 | Castellated Wraparound w/ One Extended Mounting Pad |
0.040" | BeO | SnPb over Ni over Ag | 30 | No |

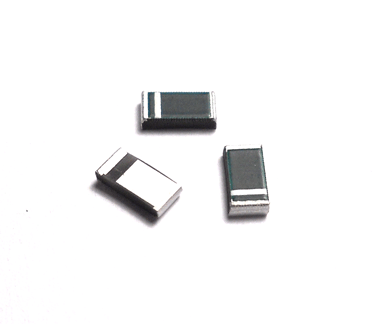

RZ Series Chip Resistor Configuration
Click on link for available Data Sheet. For more options, please contact us with your requirement.
(Click on column header to sort)
(Click on column header to sort)

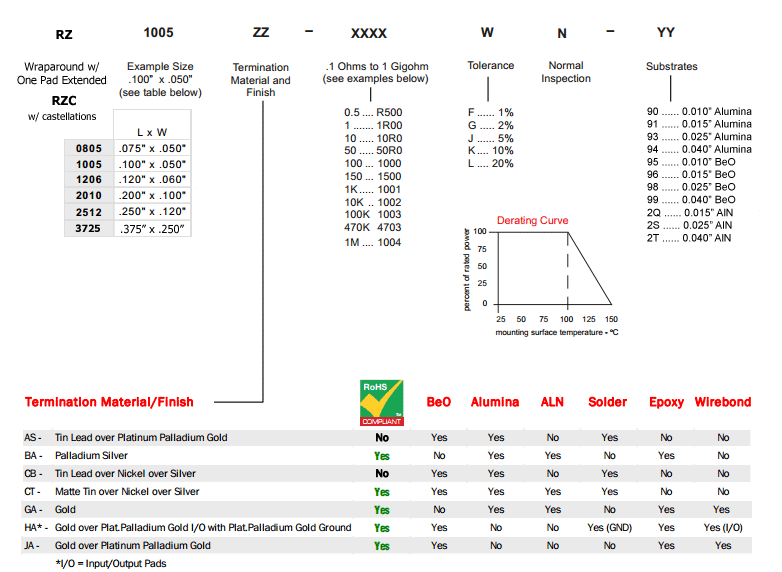

Ordering Information
Below are Barry Industries' standard wraparound chip resistors with one extended mounting pad. Engineers are welcome to contact us and we will design a custom wraparound chip resistors with one extended mounting pad to your exact specifications.
AlN Note: 10Ω to 1KΩ ohm available. Special ohmic value requests welcome.
AlN Note: 10Ω to 1KΩ ohm available. Special ohmic value requests welcome.
Other Available Configurations
Full wrap on either side of chip for solder or epoxy surface mount attachment. Extended mounting pad allows for greater contact with heat sink.
RZC Series Chip Resistor Configuration
Castellated connections on either side of chip for solder or epoxy surface mount attachment. Extended mounting pad allows for greater contact with heat sink.
