1/4 Wraparound Chip Resistors
RK Series
RK Series
Barry Industries manufacturers 1/4 Wraparound chip resistors on Alumina, AlN or BeO for solder or epoxy surface mount attachment. These chip resistors are available in sizes 0302 to 2512 with standard resistance of 0.1Ω to 1GΩ and resistor tolerance to ±1%. Other values are available.
|
Part Number/
Data Sheet |
Size
|
Config.
|
Thickness
|
Substrate
|
Metallization
|
CW Power (Max) (W)
|
RoHS
|
S-Parameters |
|---|---|---|---|---|---|---|---|---|
| RK0302CB-XXXXWN-90 | 0302 | 1/4 Wraparound | 0.010" | Alumina | SnPb over Ni over Ag | 0.06 | No | |
| RK0302CB-XXXXWN-91 | 0302 | 1/4 Wraparound | 0.015" | Alumina | SnPb over Ni over Ag | 0.04 | No | |
| RK0302CB-XXXXWN-95 | 0302 | 1/4 Wraparound | 0.010" | BeO | SnPb over Ni over Ag | 0.15 | No | |
| RK0402CB-XXXXWN-90 | 0402 | 1/4 Wraparound | 0.010" | Alumina | SnPb over Ni over Ag | 0.08 | No | |
| RK0402CT-XXXXWN-90 | 0402 | 1/4 Wraparound | 0.010" | Alumina | Matte Tin over Ni over Ag | 0.08 | Yes | |
| RK0402GA-XXXXWN-90 | 0402 | 1/4 Wraparound | 0.010" | Alumina | Au | 0.08 | Yes | |
| RK0402BA-XXXXWN-90 | 0402 | 1/4 Wraparound | 0.010" | Alumina | PdAg | 0.08 | Yes | |
| RK0402CB-XXXXWN-91 | 0402 | 1/4 Wraparound | 0.015" | Alumina | SnPb over Ni over Ag | 0.05 | No | |
| RK0402CT-XXXXWN-91 | 0402 | 1/4 Wraparound | 0.015" | Alumina | Matte Tin over Ni over Ag | 0.05 | Yes | |
| RK0402GA-XXXXWN-91 | 0402 | 1/4 Wraparound | 0.015" | Alumina | Au | 0.05 | Yes | |
| RK0402BA-XXXXWN-91 | 0402 | 1/4 Wraparound | 0.015" | Alumina | PdAg | 0.05 | Yes | |
| RK0402CB-XXXXWN-95 | 0402 | 1/4 Wraparound | 0.010" | BeO | SnPb over Ni over Ag | 1.5 | No | |
| RK0402CT-XXXXWN-95 | 0402 | 1/4 Wraparound | 0.010" | BeO | Matte Tin over Ni over Ag | 1.5 | Yes | |
| RK0402JA-XXXXWN-95 | 0402 | 1/4 Wraparound | 0.010" | BeO | Au | 1.5 | Yes | |
| RK0402CB-XXXXWN-96 | 0402 | 1/4 Wraparound | 0.015" | BeO | SnPb over Ni over Ag | 0.9 | No | |
| RK0402CT-XXXXWN-96 | 0402 | 1/4 Wraparound | 0.015" | BeO | Matte Tin over Ni over Ag | 0.9 | Yes | |
| RK0402JA-XXXXWN-96 | 0402 | 1/4 Wraparound | 0.015" | BeO | Au | 0.9 | Yes | |
| RK0502CB-XXXXWN-91 | 0502 | 1/4 Wraparound | 0.015" | Alumina | SnPb over Ni over Ag | XX | No | |
| RK0502CT-XXXXWN-91 | 0502 | 1/4 Wraparound | 0.015" | Alumina | Matte Tin over Ni over Ag | XX | Yes | |
| RK0502GA-XXXXWN-91 | 0502 | 1/4 Wraparound | 0.015" | Alumina | Au | XX | Yes | |
| RK0502BA-XXXXWN-91 | 0502 | 1/4 Wraparound | 0.015" | Alumina | PdAg | XX | Yes | |
| RK0502CB-XXXXWN-96 | 0502 | 1/4 Wraparound | 0.015" | BeO | SnPb over Ni over Ag | XX | No | |
| RK0502CT-XXXXWN-96 | 0502 | 1/4 Wraparound | 0.015" | BeO | Matte Tin over Ni over Ag | XX | Yes | |
| RK0502JA-XXXXWN-96 | 0502 | 1/4 Wraparound | 0.015" | BeO | Au | XX | Yes | |
| RK0503CB-XXXXWN-91 | 0503 | 1/4 Wraparound | 0.015" | Alumina | SnPb over Ni over Ag | 0.15 | No | |
| RK0503CT-XXXXWN-91 | 0503 | 1/4 Wraparound | 0.015" | Alumina | Matte Tin over Ni over Ag | 0.15 | Yes | |
| RK0503GA-XXXXWN-91 | 0503 | 1/4 Wraparound | 0.015" | Alumina | Au | 0.15 | Yes | |
| RK0503BA-XXXXWN-91 | 0503 | 1/4 Wraparound | 0.015" | Alumina | PdAg | 0.15 | Yes | |
| RK0503CB-XXXXWN-93 | 0503 | 1/4 Wraparound | 0.025" | Alumina | SnPb over Ni over Ag | 0.15 | No | |
| RK0503CT-XXXXWN-93 | 0503 | 1/4 Wraparound | 0.025" | Alumina | Matte Tin over Ni over Ag | 0.15 | Yes | |
| RK0503GA-XXXXWN-93 | 0503 | 1/4 Wraparound | 0.025" | Alumina | Au | 0.15 | Yes | |
| RK0503BA-XXXXWN-93 | 0503 | 1/4 Wraparound | 0.025" | Alumina | PdAg | 0.15 | Yes | |
| RK0505CB-XXXXWN-91 | 0505 | 1/4 Wraparound | 0.015" | Alumina | SnPb over Ni over Ag | 0.15 | No | |
| RK0505CT-XXXXWN-91 | 0505 | 1/4 Wraparound | 0.015" | Alumina | Matte Tin over Ni over Ag | 0.15 | Yes | |
| RK0505GA-XXXXWN-91 | 0505 | 1/4 Wraparound | 0.015" | Alumina | Au | 0.15 | Yes | |
| RK0505BA-XXXXWN-91 | 0505 | 1/4 Wraparound | 0.015" | Alumina | PdAg | 0.15 | Yes | |
| RK0505CB-XXXXWN-93 | 0505 | 1/4 Wraparound | 0.025" | Alumina | SnPb over Ni over Ag | 0.15 | No | |
| RK0505CT-XXXXWN-93 | 0505 | 1/4 Wraparound | 0.025" | Alumina | Matte Tin over Ni over Ag | 0.15 | Yes | |
| RK0505GA-XXXXWN-93 | 0505 | 1/4 Wraparound | 0.025" | Alumina | Au | 0.15 | Yes | |
| RK0505BA-XXXXWN-93 | 0505 | 1/4 Wraparound | 0.025" | Alumina | PdAg | 0.15 | Yes | |
| RK0505CB-XXXXWN-96 | 0505 | 1/4 Wraparound | 0.015" | BeO | SnPb over Ni over Ag | 1 | No | |
| RK0505CT-XXXXWN-96 | 0505 | 1/4 Wraparound | 0.015" | BeO | Matte Tin over Ni over Ag | 1 | Yes | |
| RK0505jJA-XXXXWN-96 | 0505 | 1/4 Wraparound | 0.015" | BeO | Au | 1 | Yes | |
| RK0505CB-XXXXWN-98 | 0505 | 1/4 Wraparound | 0.025" | BeO | SnPb over Ni over Ag | 1 | No | |
| RK0505CT-XXXXWN-98 | 0505 | 1/4 Wraparound | 0.025" | BeO | Matte Tin over Ni over Ag | 1 | Yes | |
| RK0505JA-XXXXWN-98 | 0505 | 1/4 Wraparound | 0.025" | BeO | Au | 1 | Yes | |
| RK1005CB-XXXXWN-91 | 1005 | 1/4 Wraparound | 0.015" | Alumina | SnPb over Ni over Ag | 0.25 | No | |
| RK1005CT-XXXXWN-91 | 1005 | 1/4 Wraparound | 0.015" | Alumina | Matte Tin over Ni over Ag | 0.25 | Yes | |
| RK1005GA-XXXXWN-91 | 1005 | 1/4 Wraparound | 0.015" | Alumina | Au | 0.25 | Yes | |
| RK1005BA-XXXXWN-91 | 1005 | 1/4 Wraparound | 0.015" | Alumina | PdAg | 0.25 | Yes | |
| RK1005CB-XXXXWN-93 | 1005 | 1/4 Wraparound | 0.025" | Alumina | SnPb over Ni over Ag | 0.20 | No | |
| RK1005CT-XXXXWN-93 | 1005 | 1/4 Wraparound | 0.025" | Alumina | Matte Tin over Ni over Ag | 0.20 | Yes | |
| RK1005GA-XXXXWN-93 | 1005 | 1/4 Wraparound | 0.025" | Alumina | Au | 0.20 | Yes | |
| RK1005BA-XXXXWN-93 | 1005 | 1/4 Wraparound | 0.025" | Alumina | PdAg | 0.20 | Yes | |
| RK1005CB-XXXXWN-96 | 1005 | 1/4 Wraparound | 0.015" | BeO | SnPb over Ni over Ag | 3 | No | |
| RK1005CT-XXXXWN-96 | 1005 | 1/4 Wraparound | 0.015" | BeO | Matte Tin over Ni over Ag | 3 | Yes | |
| RK1005JA-XXXXWN-96 | 1005 | 1/4 Wraparound | 0.015" | BeO | Au | 3 | Yes | |
| RK1005CB-XXXXWN-98 | 1005 | 1/4 Wraparound | 0.025" | BeO | SnPb over Ni over Ag | 2 | No | |
| RK1005CT-XXXXWN-98 | 1005 | 1/4 Wraparound | 0.025" | BeO | Matte Tin over Ni over Ag | 2 | Yes | |
| RK1005JA-XXXXWN-98 | 1005 | 1/4 Wraparound | 0.025" | BeO | Au | 2 | Yes | |
| RK1206CB-XXXXWN-91 | 1206 | 1/4 Wraparound | 0.015" | Alumina | SnPb over Ni over Ag | 0.35 | No | |
| RK1206CT-XXXXWN-91 | 1206 | 1/4 Wraparound | 0.015" | Alumina | Matte Tin over Ni over Ag | 0.35 | Yes | |
| RK1206GA-XXXXWN-91 | 1206 | 1/4 Wraparound | 0.015" | Alumina | Au | 0.35 | Yes | |
| RK1206BA-XXXXWN-91 | 1206 | 1/4 Wraparound | 0.015" | Alumina | PdAg | 0.35 | Yes | |
| RK1206CB-XXXXWN-93 | 1206 | 1/4 Wraparound | 0.025" | Alumina | SnPb over Ni over Ag | 0.30 | No | |
| RK1206CT-XXXXWN-93 | 1206 | 1/4 Wraparound | 0.025" | Alumina | Matte Tin over Ni over Ag | 0.30 | Yes | |
| RK1206GA-XXXXWN-93 | 1206 | 1/4 Wraparound | 0.025" | Alumina | Au | 0.30 | Yes | |
| RK1206BA-XXXXWN-93 | 1206 | 1/4 Wraparound | 0.025" | Alumina | PdAg | 0.30 | Yes | |
| RK1206CB-XXXXWN-96 | 1206 | 1/4 Wraparound | 0.015" | BeO | SnPb over Ni over Ag | 1.5 | No | |
| RK1206CT-XXXXWN-96 | 1206 | 1/4 Wraparound | 0.015" | BeO | Matte Tin over Ni over Ag | 1.5 | Yes | |
| RK1206JA-XXXXWN-96 | 1206 | 1/4 Wraparound | 0.015" | BeO | Au | 1.5 | Yes | |
| RK1206CB-XXXXWN-98 | 1206 | 1/4 Wraparound | 0.025" | BeO | SnPb over Ni over Ag | 1.5 | No | |
| RK1206CT-XXXXWN-98 | 1206 | 1/4 Wraparound | 0.025" | BeO | Matte Tin over Ni over Ag | 1.5 | Yes | |
| RK1206JA-XXXXWN-98 | 1206 | 1/4 Wraparound | 0.025" | BeO | Au | 1.5 | Yes | |
| RK1206CB-XXXXWN-2Q | 1206 | 1/4 Wraparound | 0.015" | AlN | SnPb over Ni over Ag | 1.5 | No | |
| RK1206CT-XXXXWN-2Q | 1206 | 1/4 Wraparound | 0.015" | AlN | Matte Tin over Ni over Ag | 1.5 | Yes | |
| RK1206GA-XXXXWN-2Q | 1206 | 1/4 Wraparound | 0.015" | AlN | Au | 1.5 | Yes | |
| RK1206CB-XXXXWN-2S | 1206 | 1/4 Wraparound | 0.025" | AlN | SnPb over Ni over Ag | 1.5 | No | |
| RK1206CT-XXXXWN-2S | 1206 | 1/4 Wraparound | 0.025" | AlN | Matte Tin over Ni over Ag | 1.5 | Yes | |
| RK1206GA-XXXXWN-2S | 1206 | 1/4 Wraparound | 0.025" | AlN | Au | 1.5 | Yes |

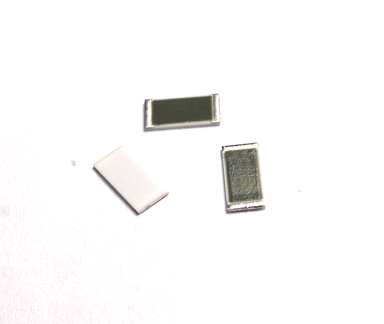

RK Series Chip Resistor Configuration
1/4 Wraparound on either side of chip for face (film side) down solder or epoxy surface mount attachment
Click on link for available Data Sheet. For more options, please contact us with your requirement.
(Click on column header to sort)
(Click on column header to sort)

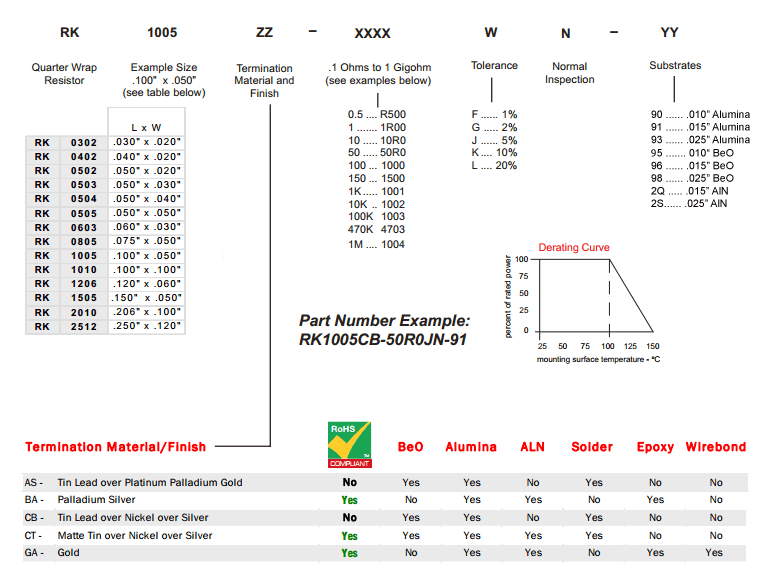

Ordering Information
Below are Barry Industries' standard 1/4 wraparound chip resistors. Engineers are welcome to contact us and we will design a custom 1/4 wraparound chip resistor to your exact specifications.
AlN Note: 10Ω to 1KΩ ohm available. Special ohmic value requests welcome.
AlN Note: 10Ω to 1KΩ ohm available. Special ohmic value requests welcome.
Other Available Configurations
RK Series 1/4 Wraparound chip resistors are optimal for RF & Microwave applications. Their design allows for face (film side) down mounting which preserves continuity between the resistor element and circuit traces thus minimizing mismatches. Additionally the 1/4 Wraparound terminal provides a 'solder fillet' to aide in visual inspection on the solder joint.

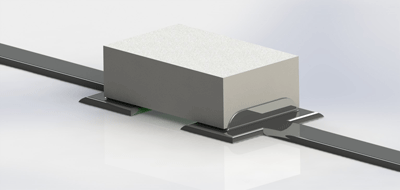

Face down mounting preserves circuit continuity for excellent performance over frequency.

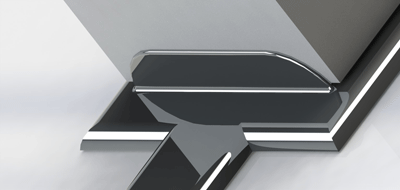

Solder filet allows for proper inspection of
solder joint.
solder joint.
