Wraparound Chip Resistors w/
Both Mounting Pads Extended
RE Series
Both Mounting Pads Extended
RE Series
Barry Industries manufacturers wraparound chip resistors with enlarged mounting pads on Alumina, AlN or BeO for solder or epoxy. These chip resistors are available in sizes 0805, 1005, 1206, 2010, 2512 and 3725 with standard resistance of 0.5Ω to 1MΩ and resistor tolerance to ±1%. Other values are available.
|
Part Number/
Data Sheet |
Size
|
Config.
|
Thickness
|
Substrate
|
Metallization
|
CW Power
(Max) (W) |
RoHS
|
|---|---|---|---|---|---|---|---|
| RE0805CT-XXXXJN-2S | 0805 | Wraparound w/ Both Mounting Pads Extended |
0.025" | AlN | Matte Tin over Ni over Ag | 5 | Yes |
| RE0805CB-XXXXJN-2S | 0805 | Wraparound w/ Both Mounting Pads Extended |
0.025" | AlN | SnPb over Ni over Ag | 5 | No |
| RE0805CT-XXXXJN-98 | 0805 | Wraparound w/ Both Mounting Pads Extended |
0.025" | BeO | Matte Tin over Ni over Ag | 5 | Yes |
| RE0805CB-XXXXJN-98 | 0805 | Wraparound w/ Both Mounting Pads Extended |
0.025" | BeO | SnPb over Ni over Ag | 5 | No |
| RE1005CT-XXXXJN-2S | 1005 | Wraparound w/ Both Mounting Pads Extended |
0.025" | AlN | Matte Tin over Ni over Ag | 8 | Yes |
| RE1005CB-XXXXJN-2S | 1005 | Wraparound w/ Both Mounting Pads Extended |
0.025" | AlN | SnPb over Ni over Ag | 8 | No |
| RE1005CT-XXXXJN-98 | 1005 | Wraparound w/ Both Mounting Pads Extended |
0.025" | BeO | Matte Tin over Ni over Ag | 8 | Yes |
| RE1005CB-XXXXJN-98 | 1005 | Wraparound w/ Both Mounting Pads Extended |
0.025" | BeO | SnPb over Ni over Ag | 8 | No |
| REC1206CT-XXXXJN-2S | 1206 | Castellated Surface Mount w/ Both Mounting Pads Extended |
0.025" | AlN | Matte Tin over Ni over Ag | 10 | Yes |
| REC1206CB-XXXXJN-2S | 1206 | Castellated Surface Mount w/ Both Mounting Pads Extended |
0.025" | AlN | SnPb over Ni over Ag | 10 | No |
| REC1206CT-XXXXJN-98 | 1206 | Castellated Surface Mount w/ Both Mounting Pads Extended |
0.025" | BeO | Matte Tin over Ni over Ag | 12 | Yes |
| REC1206CB-XXXXJN-98 | 1206 | Castellated Surface Mount w/ Both Mounting Pads Extended |
0.025" | BeO | SnPb over Ni over Ag | 12 | No |
| REC2010CT-XXXXJN-2T | 2010 | Castellated Surface Mount w/ Both Mounting Pads Extended |
0.040" | AlN | Matte Tin over Ni over Ag | 30 | Yes |
| REC2010CB-XXXXJN-2T | 2010 | Castellated Surface Mount w/ Both Mounting Pads Extended |
0.040" | AlN | SnPb over Ni over Ag | 30 | No |
| REC2010CT-XXXXJN-99 | 2010 | Castellated Surface Mount w/ Both Mounting Pads Extended |
0.025" | BeO | Matte Tin over Ni over Ag | 30 | Yes |
| REC2010CB-XXXXJN-99 | 2010 | Castellated Surface Mount w/ Both Mounting Pads Extended |
0.025" | BeO | SnPb over Ni over Ag | 30 | No |
| RE2512CT-XXXXJN-98 | 2512 | Wraparound w/ Both Mounting Pads Extended |
0.025" | BeO | Matte Tin over Ni over Ag | 30 | Yes |
| REC3725CT-XXXXJN-2T | 3725 | Castellated Surface Mount w/ Both Mounting Pads Extended |
0.040" | AlN | Matte Tin over Ni over Ag | 60 | Yes |
| REC3725CB-XXXXJN-2T | 3725 | Castellated Surface Mount w/ Both Mounting Pads Extended |
0.040" | AlN | SnPb over Ni over Ag | 60 | No |
| REC3725CT-XXXXJN-99 | 3725 | Castellated Surface Mount w/ Both Mounting Pads Extended |
0.040" | BeO | Matte Tin over Ni over Ag | 60 | Yes |
| REC3725CB-XXXXJN-99 | 3725 | Castellated Surface Mount w/ Both Mounting Pads Extended |
0.040" | BeO | SnPb over Ni over Ag | 60 | No |
RE Series Chip Resistor Configuration
Click on link for available Data Sheet. For more options, please contact us with your requirement.
(Click on column header to sort)
(Click on column header to sort)

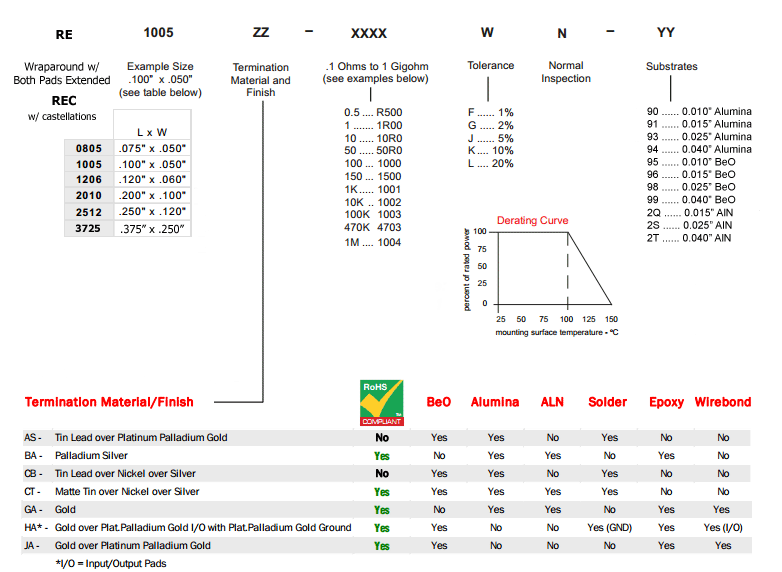

Ordering Information
Below are Barry Industries' standard wraparound chip resistors with extended mounting pads. Engineers are welcome to contact us and we will design a custom wraparound chip resistors with extended mounting pads to your exact specifications.
AlN Note: 10Ω to 1KΩ ohm available. Special ohmic value requests welcome.
AlN Note: 10Ω to 1KΩ ohm available. Special ohmic value requests welcome.

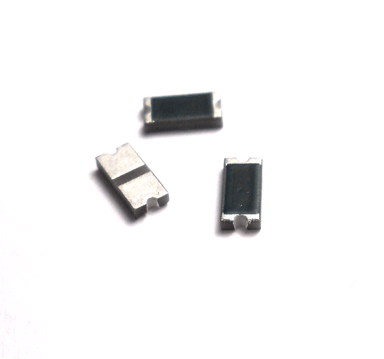

Other Available Configurations
Full wrap on either side of chip for solder or epoxy surface mount attachment. Extended mounting pads allow for greater contact with heat sink.
REC Series Chip Resistor Configuration
Castellated connections on either side of chip for solder or epoxy surface mount attachment. Extended mounting pads allow for greater contact with heat sink.
