Half

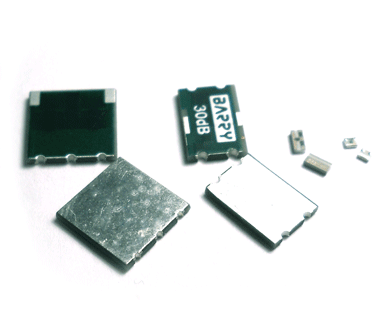

Wraparound Chip Attenuator
AV Series & AVC Series
Wraparound Chip Attenuator
AV Series & AVC Series
AVC Chip Attenuator Configuration
Click on link for available Data Sheet. For more options, please contact us with your requirement.
(Click on column header to sort)
(Click on column header to sort)

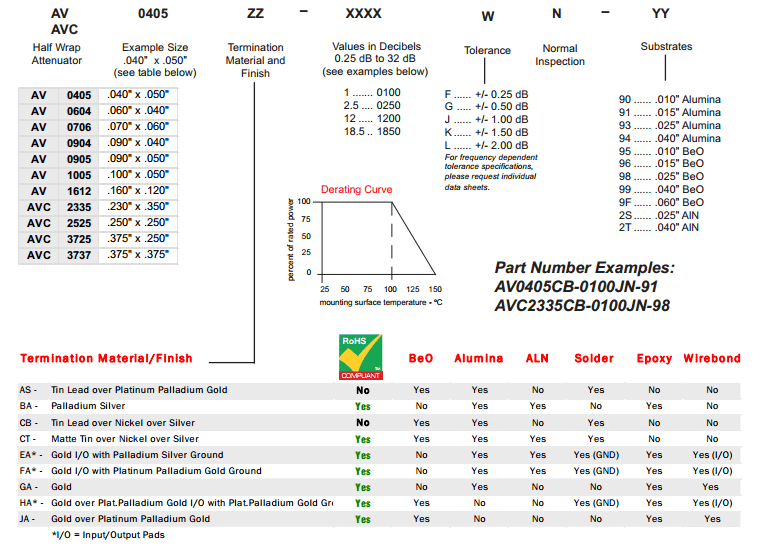

Ordering Information
Below are Barry Industries' standard Half Wraparound chip attenuators. Engineers are welcome to contact us and we will design a custom Half Wraparound chip attenuator to your exact specifications.
Other Available Configurations
|
CW Power
(Max) (W) |
Value (dB) |
Size |
Thickness
(Max) |
Substrate
|
Metalization
|
Freq.
(Max) (GHz) |
RoHS
|
Part Number/ Data Sheet |
|---|---|---|---|---|---|---|---|---|
| 0.5 | 6 | 0405 | 0.015" | Alumina | Au | 4 | Yes | AV0405GA-0600JN-91 |
| 0.75 | 0 - 30dB | 0904 | 0.010" | Alumina | Au | 18 | Yes | AV0904GA-XXXXJN-90 |
| 0.75 | 2 | 0904 | 0.015" | Alumina | Au | 30 | Yes | AV0904GA-0200JN-91 |
| 0.75 | 4 | 0904 | 0.015" | Alumina | Au | 30 | Yes | AV0904GA-0400JN-91 |
| 0.75 | 6 | 0904 | 0.015" | Alumina | Au | 30 | Yes | AV0904GA-0600JN-91 |
| 0.75 | 8 | 0904 | 0.015" | Alumina | Au | 30 | Yes | AV0904GA-0800JN-91 |
| 0.75 | 10 | 0904 | 0.015" | Alumina | Au | 30 | Yes | AV0904GA-1000JN-91 |
| 0.8 | 1 | 0405 | 0.010" | Alumina | SnPb over Ni over Ag | 4 | No | AV0405CB-0100JN-90 |
| 20 | 1 | 2525 | 0.040" | AlN | Matte Tin over Ni over Ag | 4 | Yes | AVC2525CT-0100JN-2T-05 |
| 25 | 10 | 2335 | 0.040" | AlN | Matte Tin over Ni over Ag | 2.5 | Yes | AVC2335CT-1000JN-2T-09 |
| 40 | 1 | 2525 | 0.040" | BeO | SnPb over NI over Ag | 2.5 | No | AVC2525CB-0100JN-99 |
| 40 | 2 | 2525 | 0.040" | BeO | SnPb over NI over Ag | 3 | No | AVC2525CB-0200JN-99 |
| 40 | 2 | 2525 | 0.040" | AlN | Matte Tin over Ni over Ag | 3 | Yes | AVC2525CT-0200JN-2T-06 |
| 40 | 3 | 2525 | 0.040" | BeO | SnPb over NI over Ag | 3 | No | AVC2525CB-0300JN-99 |
| 40 | 4 | 2525 | 0.040" | BeO | SnPb over NI over Ag | 3 | No | AVC2525CB-0400JN-99 |
| 40 | 5 | 2525 | 0.040" | BeO | SnPb over NI over Ag | 3.5 | No | AVC2525CB-0500JN-99 |
| 40 | 5 | 2525 | 0.040" | BeO | Matte Tin over Ni over Ag | 3.5 | Yes | AVC2525CT-0500JN-99 |
| 40 | 6 | 2525 | 0.040" | BeO | SnPb over NI over Ag | 3 | No | AVC2525CB-0600JN-99 |
| 40 | 6 | 2525 | 0.040" | AlN | Matte Tin over Ni over Ag | 3.5 | Yes | AVC2525CT-0600JN-2T-04 |
| 40 | 8 | 2525 | 0.040" | BeO | SnPb over NI over Ag | 3.5 | No | AVC2525CB-0800JN-99 |
| 40 | 9 | 2525 | 0.040" | BeO | SnPb over NI over Ag | 3.5 | No | AVC2525CB-0900JN-99 |
| 40 | 10 | 2525 | 0.040" | BeO | SnPb over NI over Ag | 3 | No | AVC2525CB-1000JN-99 |
| 40 | 10 | 2525 | 0.040" | AlN | Matte Tin over Ni over Ag | 4 | Yes | AVC2525CT-1000JN-2T-03 |
| 40 | 13 | 2525 | 0.040" | BeO | SnPb over NI over Ag | 3.5 | No | AVC2525CB-1300JN-99 |
| 40 | 14 | 2525 | 0.040" | BeO | SnPb over NI over Ag | 3.5 | No | AVC2525CB-1400JN-99 |
| 40 | 16 | 2525 | 0.040" | BeO | SnPb over NI over Ag | 3 | No | AVC2525CB-1600JN-99 |
| 40 | 20 | 2525 | 0.040" | BeO | SnPb over NI over Ag | 2 | No | AVC2525CB-2000JN-99 |
| 40 | 20 | 2525 | 0.040" | AlN | Matte Tin over Ni over Ag | 4 | Yes | AVC2525CT-2000JN-2T-02 |
| 40 | 30 | 2525 | 0.040" | AlN | Matte Tin over Ni over Ag | 4 | Yes | AVC2525CT-3000JN-2T-02 |
| 40 | 30 | 2525 | 0.040" | BeO | Matte Tin over Ni over Ag | 0.5 | Yes | AVC2525CT-3000JN-99 |
| 100 | 5 | 2525 | 0.040" | AlN | Matte Tin over Ni over Ag | 5 | Yes | AVC2525CT-0500JN-2T-07 |
| 100 | 10 | 2335 | 0.040" | AlN | Matte Tin over Ni over Ag | 2 | Yes | AVC2335CT-1000JN-2T-23 |
| 100 | 20 | 2335 | 0.040" | AlN | Matte Tin over Ni over Ag | 2 | Yes | AVC2335CT-2000GN-2T-22 |
| 100 | 20 | 2335 | 0.040" | AlN | Matte Tin over Ni over Ag | 2.5 | Yes | AVC2335CT-2000JN-2T-26 |
| 100 | 30 | 2335 | 0.040" | AlN | Matte Tin over Ni over Ag | 3.6 | Yes | AVC2335CT-3000GN-2T-26 |
| 150 | 20 | 2335 | 0.040" | AlN | Matte Tin over Ni over Ag | 2.5 | Yes | AVC2335CT-2000JN-2T-03 |
| 150 | 20 | 3725 | 0.040" | AlN | Matte Tin over Ni over Ag | 2.6 | Yes | AVC3725CT-2000JN-2T-09 |
| 150 | 29.5 | 2335 | 0.040" | AlN | Matte Tin over Ni over Ag | 2 | Yes | AVC2335CT-2950GN-2T-16 |
| 150 | 30 | 3725 | 0.040" | AlN | Matte Tin over Ni over Ag | 3 | Yes | AVC3725CT-3000JN-2T-10 |
| 250 | 5 | 3737 | 0.060" | AlN | Matte Tin over Ni over Ag | 2.5 | Yes | AVC3737CT-0500JN-2U-06 |
| 250 | 30 | 3725 | 0.040" | BeO | Matte Tin over Ni over Ag | 2 | Yes | AVC3725CT-3000GN-99-02 |
| 250 | 30 | 3737 | 0.060" | AlN | Matte Tin over Ni over Ag | 2 | Yes | AVC3737CT-3000JN-2T-02 |
Topside I/O pads and castellated conntections to groundpad.
AV Chip Attenuator Configuration
Top side I/O pads and wraparound to groundplane.
Barry Industries manufacturers Half Wraparound chip attenuators on Alumina, AlN or BeO for solder or epoxy surface mount attachment. These chip attenuators are available in 11 size from 0405 to 3737 with standard attenuation values from 0dB to 32dB. Other values available.
Circuit Diagram (0405, 0706, 1005, & 1612 only)
Circuit Diagram (0604, 0904, 0905, 2335, 2525, 3725 & 3737 only)
