Balanced PI Chip Attenuators
AB Series
AB Series

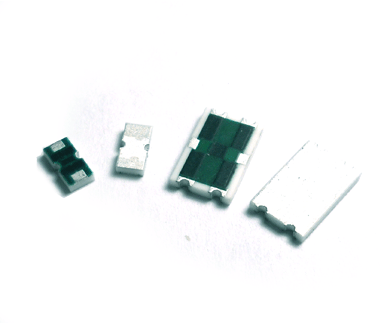

Barry Industries manufacturers Balanced Wraparound chip attenuators on Alumina, AlN or BeO for solder or epoxy surface mount attachment. These chip attenuators are available in sizes 2010 or 2335 with standard attenuation values from 0dB to 32dB. Other values available. Maximum power disipation is 150W.
ABC2010 Chip Attenuator Configuration
Topside I/O connections with castellated connections to full groundpad.
Click on link for available Data Sheet. For more options, please contact us with your requirement.
(Click on column header to sort)
(Click on column header to sort)

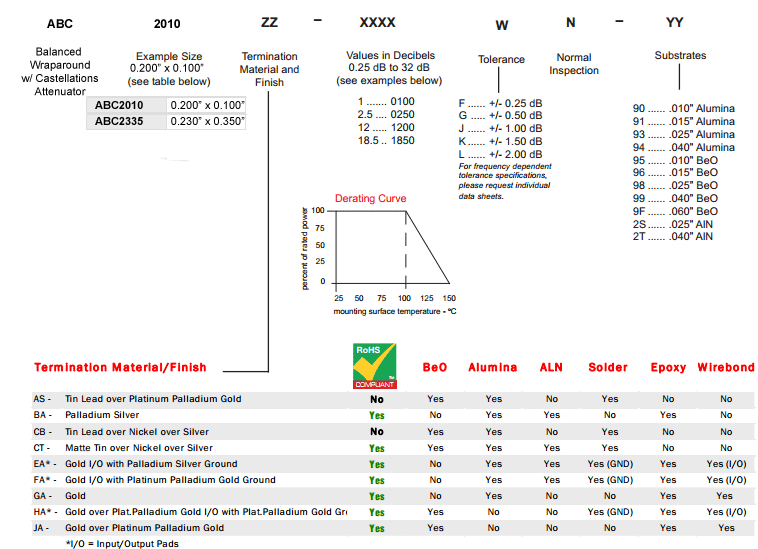

Ordering Information
Below are Barry Industries' standard Balanced Wraparound chip attenuators. Engineers are welcome to contact us and we will design a custom Balanced Wraparound chip attenuator to your exact specifications.
AlN Note: 0dB to 30dB available. Special ohmic value requests welcome.
AlN Note: 0dB to 30dB available. Special ohmic value requests welcome.
Other Available Configurations
ABC2335 Chip Attenuator Configuration
|
CW Power
(Max) (W) |
Value (dB) |
Size |
Thickness
(Max) |
Substrate
|
Metalization
|
Freq.
(Max) (GHz) |
RoHS
|
Part Number/ Data Sheet |
|---|---|---|---|---|---|---|---|---|
| 5 | 1 | 2010 | 0.040" | Alumina | Matte Tin over Ni over Ag | 6 | Yes | ABC2010CT-0100JN-94-08 |
| 5 | 3 | 2010 | 0.040" | Alumina | Matte Tin over Ni over Ag | 6 | Yes | ABC2010CT-0300JN-94-08 |
| 5 | 10 | 2010 | 0.040" | Alumina | Matte Tin over Ni over Ag | 6 | Yes | ABC2010CT-1000JN-94-10 |
| 5 | 20 | 2010 | 0.040" | Alumina | Matte Tin over Ni over Ag | 6 | Yes | ABC2010CT-2000JN-94-11 |
| 5 | 21 | 2010 | 0.025" | Alumina | Matte Tin over Ni over Ag | 5 | Yes | ABC2010CT-2100JN-93-05 |
| 5 | 25 | 2010 | 0.025" | Alumina | Matte Tin over Ni over Ag | 4 | Yes | ABC2010CT-2500JN-93-05 |
| 5 | 30 | 2010 | 0.040" | Alumina | Matte Tin over Ni over Ag | 6 | Yes | ABC2010CT-3000JN-94-11 |
| 5 | 32 | 2010 | 0.025" | Alumina | Matte Tin over Ni over Ag | 2 | Yes | ABC2010CT-3200JN-93-05 |
| 10 | 0.5 | 2010 | 0.025" | BeO | Matte Tin over Ni over Ag | 4 | Yes | ABC2010CT-0050JN-98 |
| 10 | 1 | 2010 | 0.025" | BeO | Matte Tin over Ni over Ag | 4 | Yes | ABC2010CT-0100JN-98 |
| 10 | 3 | 2010 | 0.040" | AlN | Matte Tin over Ni over Ag | 4 | Yes | ABC2010CT-0300GN-2T |
| 10 | 3 | 2010 | 0.040" | AlN | Matte Tin over Ni over Ag | 4 | Yes | ABC2010CT-0300JN-2T |
| 10 | 5 | 2010 | 0.040" | AlN | Matte Tin over Ni over Ag | 4 | Yes | ABC2010CT-0500GN-2T |
| 10 | 6 | 2010 | 0.040" | AlN | Matte Tin over Ni over Ag | 4.5 | Yes | ABC2010CT-0600GN-2T |
| 10 | 6 | 2010 | 0.040" | AlN | Matte Tin over Ni over Ag | 4.5 | Yes | ABC2010CT-0600JN-2T |
| 10 | 10 | 2010 | 0.040" | AlN | Matte Tin over Ni over Ag | 4 | Yes | ABC2010CT-1000JN-2T |
| 10 | 15 | 2010 | 0.040" | AlN | Matte Tin over Ni over Ag | 6 | Yes | ABC2010CT-1500GN-2T |
| 10 | 20 | 2010 | 0.040" | AlN | Matte Tin over Ni over Ag | 3 | Yes | ABC2010CT-2000GN-2T |
| 10 | 30 | 2010 | 0.040" | AlN | Matte Tin over Ni over Ag | 0.5 | Yes | ABC2010CT-3000GN-2T |
| 10 | 30 | 2010 | 0.025" | BeO | Matte Tin over Ni over Ag | 6 | Yes | ABC2010CT-3000JN-98-06 |
| 100 | 5 | 2335 | 0.040" | AlN | Matte Tin over Ni over Ag | 3 | Yes | ABC2335CT-0500JN-2T-27 |
| 150 | 1 | 2335 | 0.040" | BeO | Matte Tin over Ni over Ag | 4 | Yes | ABC2335CT-0100GN-99 |
| 150 | 2 | 2335 | 0.040" | BeO | Matte Tin over Ni over Ag | 4 | Yes | ABC2335CT-0200GN-99 |
| 150 | 3 | 2335 | 0.040" | BeO | Matte Tin over Ni over Ag | 4 | Yes | ABC2335CT-0300GN-99 |
| 150 | 6 | 2335 | 0.040" | BeO | Matte Tin over Ni over Ag | 6 | Yes | ABC2335CT-0600JN-99 |
Circuit Diagram
Topside I/O connections with castellated connections to full groundpad.
