All Resistors by CW Power
|
CW Power
(Max) (W) |
Form | Configuration | Footprint A Dimension |
Footprint B Dimension |
Thickness/ H Dimension |
Substrate |
RoHS
|
Part Number/ Data Sheet |
|---|---|---|---|---|---|---|---|---|
| 1 | Chip | Wraparound w/ Both Mounting Pads Extended |
0.080" | 0.050" | 0.015" | Alumina | Yes | RE0805CT-XXXXWN-91 |
| 3 | Chip | Wraparound w/ One Extended Mounting Pad |
0.080" | 0.050" | 0.025" | AlN | Yes | RZ0805CT-XXXXWN-2S |
| 3 | Chip | Wraparound w/ One Extended Mounting Pad |
0.080" | 0.050" | 0.025" | AlN | No | RZ0805CB-XXXXWN-2S |
| 5 | Chip | Wraparound w/ One Extended Mounting Pad |
0.080" | 0.050" | 0.025" | BeO | Yes | RZ0805CT-XXXXWN-98 |
| 5 | Chip | Wraparound w/ One Extended Mounting Pad |
0.080" | 0.050" | 0.025" | BeO | No | RZ0805CB-XXXXWN-98 |
| 5 | Chip | Wraparound w/ Isolated Center Pad |
0.080" | 0.050" | 0.025" | AlN | Yes | RY0805CT-XXXXWN-2S |
| 5 | Chip | Wraparound w/ Isolated Center Pad |
0.080" | 0.050" | 0.025" | BeO | Yes | RY0805CT-XXXXJN-98 |
| 5 | Chip | Wraparound w/ Both Mounting Pads Extended |
0.080" | 0.050" | 0.025" | BeO | Yes | RE0805CT-XXXXWN-98 |
| 5 | Chip | Wraparound w/ Both Mounting Pads Extended |
0.080" | 0.050" | 0.025" | AlN | Yes | RE0805CT-XXXXJN-2S |
| 8 | Chip | Wraparound w/ One Extended Mounting Pad |
0.100" | 0.050" | 0.025" | BeO | No | RZ1005CB-XXXXJN-98 |
| 8 | Chip | Wraparound w/ One Extended Mounting Pad |
0.100" | 0.050" | 0.025" | AlN | Yes | RZ1005CT-XXXXJN-2S |
| 8 | Chip | Wraparound w/ Isolated Center Pad |
0.100" | 0.050" | 0.025" | AlN | Yes | RY1005CT-XXXXJN-2S |
| 8 | Chip | Wraparound w/ Isolated Center Pad |
0.100" | 0.050" | 0.025" | BeO | No | RY1005CB-XXXXJN-98 |
| 8 | Chip | Wraparound w/ Isolated Center Pad |
0.100" | 0.050" | 0.025" | BeO | Yes | RY1005CT-XXXXJN-98 |
| 8 | Chip | Wraparound w/ Both Mounting Pads Extended |
0.100" | 0.050" | 0.025" | AlN | Yes | RE1005CT-XXXXJN-2S |
| 8 | Chip | Wraparound w/ Both Mounting Pads Extended |
0.100" | 0.050" | 0.025" | BeO | Yes | RE1005CT-XXXXJN-98 |
| 8 | Chip | Wraparound w/ Both Mounting Pads Extended |
0.100" | 0.050" | 0.025" | BeO | Yes | RE1005CB-XXXXJN-98 |
| 10 | Chip | Castellated Wraparound w/ One Extended Mounting Pad |
0.120" | 0.060" | 0.025" | AlN | Yes | RZC1206CT-XXXXJN-2S |
| 10 | Chip | Castellated Wraparound w/ Isolated Center Pad |
0.120" | 0.060" | 0.025" | AlN | Yes | RYC1206CT-XXXXJN-2S |
| 10 | Chip | Castellated Surface Mount w/ Both Mounting Pads Extended |
0.120" | 0.060" | 0.025" | AlN | Yes | REC1206CT-XXXXJN-2S |
| 10 | Flanged (Copper) |
B Flange Configuration | 0.300" | 0.200" | 0.140" | AlN | Yes | RAXXX-10-1X |
| 12 | Chip | Castellated Wraparound w/ Isolated Center Pad |
0.120" | 0.060" | 0.025" | BeO | Yes | RYC1206CT-XXXXJN-2S |
| 20 | Chip | Castellated Wraparound w/ Isolated Center Pad |
0.200" | 0.100" | 0.025" | BeO | No | RYC2010CB-XXXXJN-98 |
| 20 | Chip | Castellated Wraparound w/ Isolated Center Pad |
0.200" | 0.100" | 0.040" | BeO | No | RYC2010CB-XXXXJN-99 |
| 20 | Chip | Castellated Wraparound w/ Isolated Center Pad |
0.200" | 0.100" | 0.040" | AlN | Yes | RYC2010CT-XXXXJN-2T |
| 20 | Chip | Castellated Wraparound w/ Isolated Center Pad |
0.200" | 0.100" | 0.040" | BeO | Yes | RYC2010CT-XXXXJN-99 |
| 20 | Chip | Castellated Surface Mount w/ Both Mounting Pads Extended |
0.200" | 0.100" | 0.040" | AlN | Yes | REC2010CT-XXXXJN-2T |
| 20 | Leaded | Leaded | 0.200" | 0.100" | 0.040" | AlN | Yes | K04Z-XXXXG2T-02C36-X |
| 20 | Flanged (Copper) |
B Flange Configuration | 0.300" | 0.200" | 0.140" | BeO | Yes | RXXXX-20-10X |
| 20 | Flanged (Copper) |
B Flange Configuration | 0.300" | 0.200" | 0.140" | BeO | Yes | RXXXX-20-12X |
| 20 | Flanged (Copper) |
A Flange Configuration | 0.500" | 0.200" | 0.140" | BeO | Yes | RXXXX-20-13X |
| 20 | Flanged (Copper) |
B Flange Configuration | 0.300" | 0.200" | 0.140" | AlN | Yes | RAXXXX-20-8X |
| 30 | Chip | Castellated Wraparound w/ One Extended Mounting Pad |
0.200" | 0.100" | 0.025" | AlN | Yes | RZC2010CT-XXXXJN-2S-03 |
| 30 | Chip | Castellated Surface Mount w/ Both Mounting Pads Extended |
0.200" | 0.100" | 0.025" | BeO | Yes | REC2010CT-XXXXJN-99 |
| 30 | Chip | Wraparound w/ Both Mounting Pads Extended |
0.250" | 0.120" | 0.025" | BeO | Yes | RE2512CT-XXXXJN-98 |
| 30 | Flanged (Copper) |
B Flange Configuration | 0.515 | 0.250" | 0.140" | AlN | Yes | RAXXXX-30-3X |
| 30 | Flanged (Copper Tungsten) |
B Flange Configuration | 0.515 | 0.250" | 0.140" | BeO | Yes | RXXXX-30-3E |
| 30 | Flanged (Copper) |
B Flange Configuration | 0.515 | 0.250" | 0.140" | BeO | Yes | RXXXX-30-3X |
| 40 | Chip | Castellated Wraparound w/ Isolated Center Pad |
0.250" | 0.250" | 0.040" | AlN | Yes | RYC2525CT-12R5JN-2T |
| 40 | Leaded | Leaded | 0.200" | 0.100" | 0.040" | BeO | Yes | K04Z-XXXXG99-02C36-X |
| 40 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | AlN | Yes | RAXXXX-40-1X |
| 40 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | BeO | Yes | RXXXX-40-1X |
| 40 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | BeO | Yes | RXXXX-40-13X |
| 50 | Chip | Castellated Wraparound w/ Isolated Center Pad |
0.375" | 0.250" | 0.040" | AlN | Yes | RYC3725CT-50R0GN-2T-01 |
| 50 | Leaded | Leaded | 0.230" | 0.350" | 0.040" | AlN | Yes | K05Z-XXXXG2T-05C36-X |
| 50 | Leaded | Leaded | 0.230" | 0.350" | 0.060" | AlN | Yes | K05Z-XXXXG2U-02C36-X |
| 50 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | BeO | Yes | RXXXX-50-12X |
| 50 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | AlN | Yes | RAXXXX-50-10X |
| 50 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.170" | AlN | Yes | RAXXXX-50-11X |
| 50 | Flanged (Copper) |
B Flange Configuration | 0.575" | 0.230" | 0.140" | AlN | Yes | RAXXXX-50-13X |
| 50 | Flanged (Copper) |
B Flange Configuration | 0.575" | 0.230" | 0.170" | AlN | Yes | RAXXXX-50-14X |
| 50 | Flanged (Copper) |
B Flange Configuration | 0.560" | 0.375" | 0.140" | AlN | Yes | RAXXXX-50-1X |
| 50 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | AlN | Yes | RAXXXX-50-4X |
| 50 | Flanged (Copper Tungsten) |
B Flange Configuration | 0.560" | 0.375" | 0.200" | BeO | Yes | RXXXX-50-2E |
| 50 | Flanged (Copper Tungsten) |
B Flange Configuration | 0.515" | 0.250" | 0.140" | BeO | Yes | RXXXX-50-3E |
| 50 | Flanged (Copper Tungsten) |
B Flange Configuration | 0.515" | 0.250" | 0.200" | BeO | Yes | RXXXX-50-5E |
| 60 | Chip | Castellated Surface Mount w/ Both Mounting Pads Extended |
0.375" | 0.250" | 0.040" | BeO | Yes | REC3725CT-50R0JN-99 |
| 75 | Flanged (Copper) |
B Flange Configuration | 0.560" | 0.375" | 0.190" | AlN | Yes | RAXXXX-75-1X |
| 80 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.160" | BeO | Yes | R50R0-80-3X |
| 80 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.160" | BeO | Yes | R1000-80-3X |
| 80 | Flanged (Copper Tungsten) |
B Flange Configuration | 0.515" | 0.250" | 0.160" | BeO | Yes | RXXXX-80-3E |
| 80 | Flanged (Copper) |
B Flange Configuration | 0.515" | 0.250" | 0.160" | AlN | Yes | RA1000-80-3X |
| 85 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | BeO | Yes | RXXXX-85-12X |
| 100 | Leaded | Leaded | 0.230" | 0.350" | 0.040" | AlN | Yes | K05Z-XXXXG2T-01C36-X |
| 100 | Leaded | Leaded | 0.230" | 0.350" | 0.060" | AlN | Yes | K05Z-XXXXG2U-03C36-X |
| 100 | Leaded | Leaded | 0.230" | 0.350" | 0.060" | BeO | Yes | K05Z-XXXXG9F-05C36-X |
| 100 | Flanged (Copper) |
A Flange Configuration | 0.975" | 0.230" | 0.170" | BeO | Yes | RXXXX-100-2X |
| 100 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | BeO | Yes | RXXXX-100-10X |
| 100 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | BeO | Yes | RXXXX-100-11X |
| 100 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | AlN | Yes | RA50R0-100-4X |
| 100 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | AlN | Yes | RA1000-100-4X |
| 100 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | AlN | Yes | RAXXXX-100-8X |
| 100 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.170" | AlN | Yes | RAXXXX-100-9X |
| 150 | Leaded | Leaded | 0.230" | 0.350" | 0.040" | BeO | Yes | K05Z-XXXXG99-01C36-X |
| 150 | Leaded | Leaded | 0.375" | 0.250" | 0.040" | AlN | Yes | K07Z-XXXXJ2T-00J36-X |
| 150 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | BeO | Yes | R50R0-150-10X |
| 150 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | BeO | Yes | R1000-150-10X |
| 150 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | BeO | Yes | R1000-150-4X |
| 150 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | AlN | Yes | RA1000-150-4X |
| 150 | Flanged (Copper) |
A Flange Configuration | 0.870" | 0.375" | 0.140" | AlN | Yes | RAXXXX-150-8X |
| 150 | Flanged (Copper Tungsten) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | BeO | Yes | RXXXX-150-4E |
| 150 | Flanged (Copper Tungsten) |
A Flange Configuration | 0.870" | 0.375" | 0.140" | BeO | Yes | RXXXX-150-8E |
| 150 | Copper | A Flange Configuration | 0.870" | 0.375" | 0.140" | BeO | Yes | RXXXX-150-8X |
| 150 | Flanged (Copper Tungsten) |
A Flange Configuration | 0.975" | 0.250" | 0.140" | BeO | Yes | R50R0-150-15E |
| 150 | Flanged (Copper) |
A Flange Configuration | 0.870" | 0.375" | 0.160" | BeO | Yes | R1000-150-27X |
| 200 | Leaded | Leaded | 0.230" | 0.350" | 0.040" | BeO | Yes | K05Z-XXXXG99-06C36-X |
| 200 | Flanged (Copper) |
A Flange Configuration | 0.800" | 0.230" | 0.140" | BeO | Yes | R1000-200-7X |
| 250 | Flanged (Copper) |
A Flange Configuration | 0.975" | 0.375" | 0.210" | BeO | Yes | RXXXX-250-1X |
| 250 | Flanged (Copper) |
A Flange Configuration | 0.975" | 0.375" | 0.210" | AlN | Yes | RAXXXX-250-1X |
| 250 | Flanged (Copper) |
A Flange Configuration | 0.975" | 0.375" | 0.210" | AlN | Yes | RA50R0-250-2X |
| 250 | Flanged (Copper Tungsten) |
A Flange Configuration | 0.975" | 0.375" | 0.210" | BeO | Yes | RXXXX-250-1E |
| 250 | Flanged (Copper Tungsten) |
A Flange Configuration | 0.975" | 0.375" | 0.200" | BeO | Yes | RXXXX-250-5E |
| 250 | Flanged (Copper) |
A Flange Configuration | 0.975" | 0.375" | 0.200" | BeO | Yes | RXXXX-250-5X |
| 400 | Flanged (Copper) |
A Flange Configuration | 1.100" | 0.500" | 0.200" | BeO | Yes | R50R0-400-1X R1000-400-1X |
| 400 | Flanged (Copper Tungsten) |
A Flange Configuration | 1.100" | 0.500" | 0.200" | BeO | Yes | RXXXX-400-1E |
| 800 | Flanged (Copper Tungsten) |
A Flange Configuration | 1.900" | 1.040" | 0.250" | BeO | Yes | R1000-800-1E |
| 800 | Flanged (Copper Tungsten) |
A Flange Configuration | 1.900" | 1.040" | 0.250" | BeO | Yes | RXXXX-800-5E |
Click on link for available Data Sheet. For more options, please contact us with your requirement.
(Click on column header to sort)
(Click on column header to sort)
Barry Industries offers flanged resistors with Copper Tungsten mounting flanges designed specifically for pulsed power/ high thermal cycle applications. Check out our entire line of resistors for Pulsed Power & High Thermal Cycle Applications

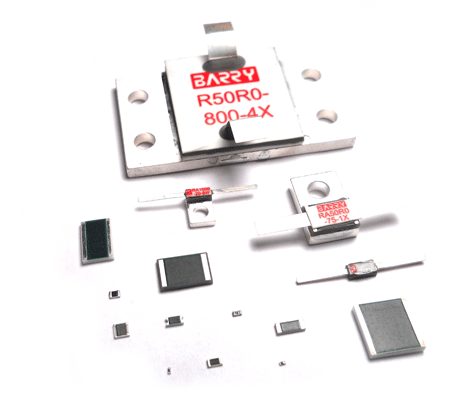

Barry Industries offers the largest selection of high power resistors up to 800W. Below are our standard selection of power resistors. For power ratings above 800W please contact us.
Chip Resistor
Leaded Resistor
Flanged Resistor - A Config.
Flanged Resistor - B Config.
