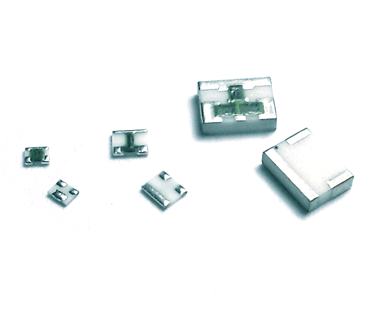

Wraparound Chip Attenuators
AP Series
AP Series
Barry Industries manufacturers Wraparound chip attenuators on Alumina, AlN or BeO for solder or epoxy surface mount attachment. These chip attenuators are available in sizes 0405 to 1612 with standard attenuation values from 0dB to 32dB. Other values available.
AP Series Chip Attenuator Configuration
Full wraparound on either side of chip for solder or epoxy surface mount.

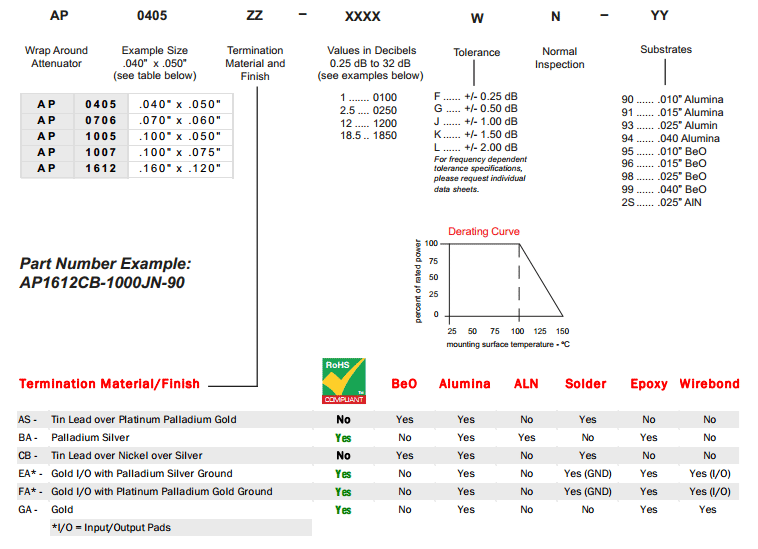

Ordering Information
Below are Barry Industries' standard Wraparound attenuators. Engineers are welcome to contact us and we will design a custom Wraparound Chip attenuator to your exact specifications.
AlN Note: 2dB to 30dB available. Special ohmic value requests welcome.
AlN Note: 2dB to 30dB available. Special ohmic value requests welcome.
Other Available Configurations
Circuit Diagram
