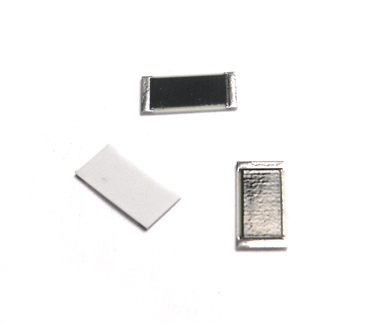

Flip Chip Resistors
RS Series
RS Series
Barry Industries manufacturers 'Flip Chip' resistors on Alumina, AlN or BeO for solder, epoxy or wirebond attachment. These chip resistors are available in sizes 0201 to 2512 with standard resistance of 0.1Ω to 1GΩ and resistor tolerance to ±1%. Other values are available.
|
Part Number/
Data Sheet |
Size
|
Config.
|
Thickness
|
Substrate
|
Metallization
|
CW Power (Max) (W)
|
RoHS
|
|---|---|---|---|---|---|---|---|
RS0201GA-XXXXWN-90 |
0201 | Flip Chip | 0.010" | Alumina | Au | 0.05 | Yes |
| RS0202ZZ-XXXXWN-90 |
0202 | Flip Chip | 0.010" | Alumina | Multiple Options | 0.065 | Available |
| RS0202ZZ-XXXXWN-91 |
0202 | Flip Chip | 0.015" | Alumina | Multiple Options | 0.05 | Available |
| RS0202ZZ-XXXXWN-95 |
0202 | Flip Chip | 0.010" | BeO | Multiple Options | 0.2 | Available |
| RS302ZZ-XXXXWN-90 |
0302 | Flip Chip | 0.010" | Alumina | Multiple Options | 0.06 | Available |
| RS402ZZ-XXXXWN-90 |
0402 | Flip Chip | 0.010" | Alumina | Multiple Options | 0.08 | Available |
| RS402ZZ-XXXXWN-91 |
0402 | Flip Chip | 0.015" | Alumina | Multiple Options | 0.05 | Available |
| RS402ZZ-XXXXWN-95 |
0402 | Flip Chip | 0.015" | BeO | Multiple Options | 1.5 | Available |
| RS502ZZ-XXXXWN-90 |
0502 | Flip Chip | 0.010" | Alumina | Multiple Options | 0.16 | Available |
| RS503ZZ-XXXXWN-90 |
0503 | Flip Chip | 0.010" | Alumina | Multiple Options | 0.15 | Available |
| RS0503ZZ-XXXXWN-91 |
0503 | Flip Chip | 0.015" | Alumina | Multiple Options | 0.15 | Available |
| RS0505ZZ-XXXXWN-90 |
0505 | Flip Chip | 0.010" | Alumina | Multiple Options | 0.15 | Available |
| RS0505ZZ-XXXXWN-91 |
0505 | Flip Chip | 0.015" | Alumina | Multiple Options | 0.15 | Available |
| RS0505ZZ-XXXXWN-93 |
0505 | Flip Chip | 0.025" | Alumina | Multiple Options | 0.15 | Available |
| RS0505ZZ-XXXXWN-95 |
0505 | Flip Chip | 0.010" | BeO | Multiple Options | 1 | Available |
| RS0505ZZ-XXXXWN-96 |
0505 | Flip Chip | 0.015" | BeO | Multiple Options | 1 | Available |
| RS0505ZZ-XXXXWN-98 |
0505 | Flip Chip | 0.025" | BeO | Multiple Options | 1 | Available |
| RS0603CB-50R0JN-95 |
0603 | Flip Chip | 0.010" | BeO | SnPb over Ni over Ag | 0.15 | No |
| RS0805ZZ-XXXXWN-90 |
0805 | Flip Chip | 0.010" | Alumina | Multiple Options | 0.25 | Available |
| RS0805ZZ-XXXXWN-91 |
0805 | Flip Chip | 0.015" | Alumina | Multiple Options | 0.25 | Available |
| RS0805ZZ-XXXXWN-93 |
0805 | Flip Chip | 0.025" | Alumina | Multiple Options | 0.25 | Available |
| RS0805ZZ-XXXXWN-95 |
0805 | Flip Chip | 0.010" | BeO | Multiple Options | 1 | Available |
| RS0805ZZ-XXXXWN-96 |
0805 | Flip Chip | 0.015" | BeO | Multiple Options | 1 | Available |
| RS0805ZZ-XXXXWN-98 |
0805 | Flip Chip | 0.025" | BeO | Multiple Options | 1 | Available |
| RS0805ZZ-XXXXWN-2P |
0805 | Flip Chip | 0.010" | AlN | Multiple Options | 1 | Available |
| RS0805ZZ-XXXXWN-2S |
0805 | Flip Chip | 0.015" | AlN | Multiple Options | 1 | Available |
| RS0805ZZ-XXXXWN-2T |
0805 | Flip Chip | 0.025" | AlN | Multiple Options | 1 | Available |
| RS1005ZZ-XXXXWN-90 |
1005 | Flip Chip | 0.010" | Alumina | Multiple Options | 0.25 | Available |
| RS1005ZZ-XXXXWN-91 |
1005 | Flip Chip | 0.015" | Alumina | Multiple Options | 0.25 | Available |
| RS1005ZZ-XXXXWN-93 |
1005 | Flip Chip | 0.025" | Alumina | Multiple Options | 0.25 | Available |
| RS1005ZZ-XXXXWN-95 |
1005 | Flip Chip | 0.010" | BeO | Multiple Options | 3 | Available |
| RS1005ZZ-XXXXWN-96 |
1005 | Flip Chip | 0.015" | BeO | Multiple Options | 3 | Available |
| RS1005ZZ-XXXXWN-98 |
1005 | Flip Chip | 0.025" | BeO | Multiple Options | 2 | Available |
| RS1206ZZ-XXXXWN-90 |
1206 | Flip Chip | 0.010" | Alumina | Multiple Options | 0.35 | Available |
| RS1206ZZ-XXXXWN-91 |
1206 | Flip Chip | 0.015" | Alumina | Multiple Options | 0.35 | Available |
| RS1206ZZ-XXXXWN-93 |
1206 | Flip Chip | 0.025" | Alumina | Multiple Options | 0.35 | Available |
| RS1206ZZ-XXXXWN-2P |
1206 | Flip Chip | 0.010" | AlN | Multiple Options | 1.5 | Available |
| RS1206ZZ-XXXXWN-2Q |
1206 | Flip Chip | 0.015" | AlN | Multiple Options | 1.5 | Available |
| RS1206ZZ-XXXXWN-2S |
1206 | Flip Chip | 0.025" | AlN | Multiple Options | 1.5 | Available |
| RS1206ZZ-XXXXWN-95 |
1206 | Flip Chip | 0.010" | BeO | Multiple Options | 1.5 | Available |
| RS1206ZZ-XXXXWN-96 |
1206 | Flip Chip | 0.015" | BeO | Multiple Options | 1.5 | Available |
| RS1206ZZ-XXXXWN-98 |
1206 | Flip Chip | 0.025" | BeO | Multiple Options | 1.5 | Available |
| RS2010ZZ-XXXXWN-2T |
2010 | Flip Chip | 0.040" | AlN | Multiple Options | 20 | Available |
| RS2010ZZ-XXXXWN-99 |
2010 | Flip Chip | 0.040" | BeO | Multiple Options | 30 | Available |

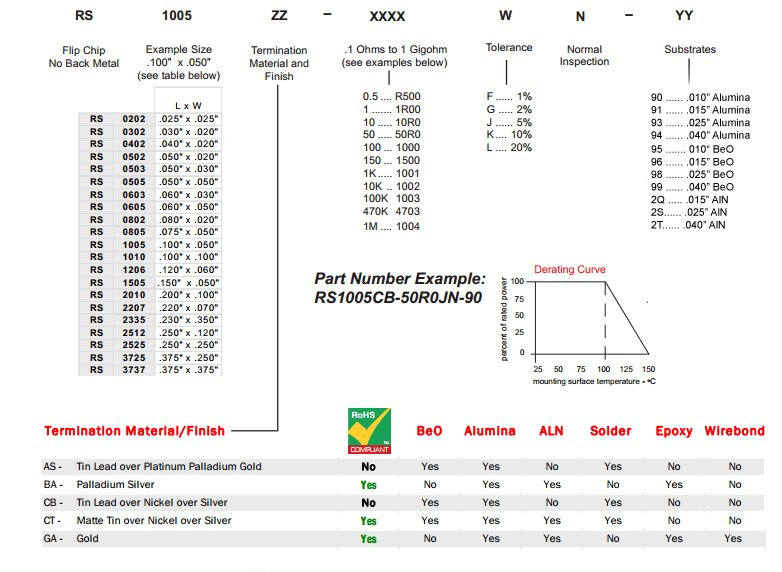

RS Series Chip Resistor Configuration
Click on link for available Data Sheet. For more options, please contact us with your requirement.
(Click on column header to sort)
(Click on column header to sort)
Ordering Information
Below are Barry Industries' standard 'Flip Chip' resistors. Engineers are welcome to contact us and we will design a custom 'Flip Chip' resistors to your exact specifications.
AlN Note: 10Ω to 1KΩ ohm available. Special ohmic value requests welcome.
AlN Note: 10Ω to 1KΩ ohm available. Special ohmic value requests welcome.
Other Available Configurations
Available with single sided terminals suited for wirebonding or can be mounted face (film) side down with solder or epoxy mount.
RS Series are Ideal for Wirebonding!
