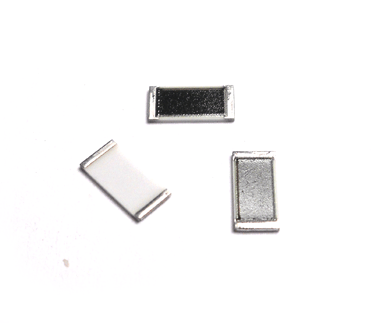

Wraparound Chip Resistors
RP Series
Barry Industries manufacturers wraparound chip resistors on Alumina, AlN or BeO for solder or epoxy surface mount attachment. These chip resistors are available in sizes 0302 to 2512 and resistance values from 0.1Ω to 1GΩ. Resistor tolerances to ±1% are available.
Also see:
Leaded Resistors
Flanged Resistors
PN Prefix
Size
Config.
Thickness
Substrate
Metallization
CW Power (Max) (W)
RoHS
RP0302 0302 Wraparound 0.015" Alumina PdAg 0.15 Yes
RP0302 0302 Wraparound 0.015" Alumina SnPb over Ni over Ag 0.15 No
RP0302 0302 Wraparound 0.015" Alumina Matte Tin over Ni over Ag 0.15 Yes
RP0302 0302 Wraparound 0.015" Alumina Au 0.15 Yes
RP0402 0402 Wraparound 0.010" Alumina PdAg 0.1 Yes
RP0402 0402 Wraparound 0.010" Alumina Sn96 over PdAg 0.1 Yes
RP0402 0402 Wraparound 0.010" Alumina SnPb over Ni over Ag 0.1 No
RP0402 0402 Wraparound 0.010" Alumina Matte Tin over Ni over Ag 0.1 Yes
RP0402 0402 Wraparound 0.010" Alumina Au 0.1 Yes
RP0402 0402 Wraparound 0.015" Alumina PdAg 0.1 Yes
RP0402 0402 Wraparound 0.015" Alumina SnPb over Ni over Ag 0.1 No
RP0402 0402 Wraparound 0.015" Alumina Matte Tin over Ni over Ag 0.1 Yes
RP0402 0402 Wraparound 0.015" Alumina Au 0.1 Yes
RP0402 0402 Wraparound 0.015" Alumina Sn96 over PdAg 0.1 Yes
RP0402 0402 Wraparound 0.015" AlN SnPb over Ni over Ag 1 No
RP0402 0402 Wraparound 0.015" AlN Matte Tin over Ni over Ag 1 Yes
RP0402 0402 Wraparound 0.015" AlN Sn96 over Ni over Ag 1 Yes
RP0402 0402 Wraparound 0.015" BeO SnPb over Ni over Ag 1 No
RP0402 0402 Wraparound 0.015" BeO Matte Tin over Ni over Ag 1 Yes
RP0402 0402 Wraparound 0.015" BeO Sn96 over Ni over Ag 1 Yes
RP0502 0502 Wraparound 0.015" Alumina PdAg 0.15 Yes
RP0502 0502 Wraparound 0.015" Alumina SnPb over Ni over Ag 0.15 No
RP0502 0502 Wraparound 0.015" Alumina Matte Tin over Ni over Ag 0.15 Yes
RP0502 0502 Wraparound 0.015" Alumina Au 0.15 Yes
RP0502 0502 Wraparound 0.015" BeO SnPb over Ni over Ag 0.35 No
RP0502 0502 Wraparound 0.015" BeO Matte Tin over Ni over Ag 0.35 Yes
RP0502 0502 Wraparound 0.015" BeO Au over PtPdAg 0.35 Yes
RP0503 0503 Wraparound 0.015" Alumina PdAg XX Yes
RP0503 0503 Wraparound 0.015" Alumina SnPb over Ni over Ag XX No
RP0503 0503 Wraparound 0.015" Alumina Matte Tin over Ni over Ag XX Yes
RP0503 0503 Wraparound 0.015" Alumina Au XX Yes
RP0503 0503 Wraparound 0.015" BeO SnPb over Ni over Ag XX No
RP0503 0503 Wraparound 0.015" BeO Matte Tin over Ni over Ag XX Yes
RP0503 0503 Wraparound 0.015" BeO Au over PtPdAg XX Yes
RP0504 0504 Wraparound 0.015" Alumina SnPb over PtPdAu 0.2 No
RP0504 0504 Wraparound 0.015" Alumina PdAg 0.2 Yes
RP0504 0504 Wraparound 0.015" Alumina SnPb over Ni over Ag 0.2 No
RP0504 0504 Wraparound 0.015" Alumina Matte Tin over Ni over Ag 0.2 Yes
RP0504 0504 Wraparound 0.015" Alumina Au 0.2 Yes
RP0504 0504 Wraparound 0.015" BeO SnPb over PtPdAu 0.4 No
RP0504 0504 Wraparound 0.015" BeO SnPb over Ni over Ag 0.4 No
RP0504 0504 Wraparound 0.015" BeO Matte Tin over Ni over Ag 0.4 Yes
RP0504 0504 Wraparound 0.015" BeO Au over PtPdAg 0.4 Yes
RP0505 0505 Wraparound 0.015" Alumina PdAg 0.25 Yes
RP0505 0505 Wraparound 0.015" Alumina SnPb over Ni over Ag 0.25 No
RP0505 0505 Wraparound 0.015" Alumina Matte Tin over Ni over Ag 0.25 Yes
RP0505 0505 Wraparound 0.015" Alumina Au 0.25 Yes
RP0505 0505 Wraparound 0.015" BeO SnPb over Ni over Ag 0.5 No
RP0505 0505 Wraparound 0.015" BeO Matte Tin over Ni over Ag 0.5 Yes
RP0505 0505 Wraparound 0.015" BeO Au over PtPdAg 0.5 Yes
RP0603 0603 Wraparound 0.010" Alumina PdAg 0.1 Yes
RP0603 0603 Wraparound 0.010" Alumina SnPb over Ni over Ag 0.1 No
RP0603 0603 Wraparound 0.010" Alumina Matte Tin over Ni over Ag 0.1 Yes
RP0603 0603 Wraparound 0.010" Alumina Au 0.1 Yes
RP0603 0603 Wraparound 0.015" Alumina PdAg 0.2 Yes
RP0603 0603 Wraparound 0.015" Alumina SnPb over Ni over Ag 0.2 No
RP0603 0603 Wraparound 0.015" Alumina Matte Tin over Ni over Ag 0.2 Yes
RP0603 0603 Wraparound 0.015" Alumina Au 0.2 Yes
RP0603 0603 Wraparound 0.010" BeO SnPb over Ni over Ag 1.6 No
RP0603 0603 Wraparound 0.010" BeO Matte Tin over Ni over Ag 1.6 Yes
RP0603 0603 Wraparound 0.010" BeO Au over PtPdAg 1.6 Yes
RP0603 0603 Wraparound 0.015" BeO SnPb over Ni over Ag 2.4 No
RP0603 0603 Wraparound 0.015" BeO Matte Tin over Ni over Ag 2.4 Yes
RP0603 0603 Wraparound 0.015" BeO Au over PtPdAg 2.4 Yes
RP0702 0702 Wraparound 0.010" Alumina PdAg 0.2 Yes
RP0805 0805 Wraparound 0.015" Alumina SnPb over Ni over Ag 2 No
RP0805 0805 Wraparound 0.025" Alumina SnPb over Ni over Ag 1 No
RP0805 0805 Wraparound 0.015" BeO SnPb over Ni over Ag 8 No
RP0805 0805 Wraparound 0.025" BeO SnPb over Ni over Ag 5 No
RP1005 1005 Wraparound 0.015" Alumina PdAg 0.5 Yes
RP1005 1005 Wraparound 0.015" Alumina SnPb over Ni over Ag 0.5 No
RP1005 1005 Wraparound 0.015" Alumina Matte Tin over Ni over Ag 0.5 Yes
RP1005 1005 Wraparound 0.015" Alumina Au 0.5 Yes
RP1005 1005 Wraparound 0.015" BeO SnPb over Ni over Ag 1 No
RP1005 1005 Wraparound 0.015" BeO Matte Tin over Ni over Ag 1 Yes
RP1005 1005 Wraparound 0.015" BeO Au over PtPdAg 1 Yes
RP1005 1005 Wraparound 0.015" AlN SnPb over Ni over Ag 1 No
RP1005 1005 Wraparound 0.015" AlN Matte Tin over Ni over Ag 1 Yes
RP1005 1005 Wraparound 0.015" AlN Au 1 Yes
RP1010 1010 Wraparound 0.015" Alumina SnPb over PtPdAu 1 No
RP1010 1010 Wraparound 0.015" Alumina PdAg 1 Yes
RP1010 1010 Wraparound 0.015" Alumina SnPb over Ni over Ag 1 No
RP1010 1010 Wraparound 0.015" Alumina Matte Tin over Ni over Ag 1 Yes
RP1010 1010 Wraparound 0.015" Alumina Au 1 Yes
RP1010 1010 Wraparound 0.025" Alumina SnPb over PtPdAu 0.5 No
RP1010 1010 Wraparound 0.025" Alumina PdAg 0.5 Yes
RP1010 1010 Wraparound 0.025" Alumina SnPb over Ni over Ag 0.5 No
RP1010 1010 Wraparound 0.025" Alumina Matte Tin over Ni over Ag 0.5 Yes
RP1010 1010 Wraparound 0.025" Alumina Au 0.5 Yes
RP1010 1010 Wraparound 0.015" BeO SnPb over PtPgAu 2 No
RP1010 1010 Wraparound 0.015" BeO SnPb over Ni over Ag 2 No
RP1010 1010 Wraparound 0.015" BeO Matte Tin over Ni over Ag 2 Yes
RP1010 1010 Wraparound 0.015" BeO Au over PtPdAg 2 Yes
RP1206 1206 Wraparound 0.015" Alumina PdAg 0.5 Yes
RP1206 1206 Wraparound 0.015" Alumina SnPb over Ni over Ag 0.5 No
RP1206 1206 Wraparound 0.015" Alumina Matte Tin over Ni over Ag 0.5 Yes
RP1206 1206 Wraparound 0.015" Alumina Au 0.5 Yes
RP1206 1206 Wraparound 0.025" Alumina PdAg 0.5 Yes
RP1206 1206 Wraparound 0.025" Alumina SnPb over Ni over Ag 0.5 No
RP1206 1206 Wraparound 0.025" Alumina Matte Tin over Ni over Ag 0.5 Yes
RP1206 1206 Wraparound 0.025" Alumina Au 0.5 Yes
RP1206 1206 Wraparound 0.040" Alumina PdAg 0.7 Yes
RP1206 1206 Wraparound 0.040" Alumina SnPb over Ni over Ag 0.7 No
RP1206 1206 Wraparound 0.040" Alumina Matte Tin over Ni over Ag 0.7 Yes
RP1206 1206 Wraparound 0.040" Alumina Au 0.7 Yes
RP1206 1206 Wraparound 0.015" BeO SnPb over Ni over Ag 2 No
RP1206 1206 Wraparound 0.015" BeO Matte Tin over Ni over Ag 2 Yes
RP1206 1206 Wraparound 0.015" BeO Au over PtPdAg 2 Yes
RP1206 1206 Wraparound 0.025" BeO SnPb over Ni over Ag 2 No
RP1206 1206 Wraparound 0.025" BeO Matte Tin over Ni over Ag 2 Yes
RP1206 1206 Wraparound 0.025" BeO Au over PtPdAg 2 Yes
RP1206 1206 Wraparound 0.040" BeO SnPb over Ni over Ag 2.5 No
RP1206 1206 Wraparound 0.040" BeO Matte Tin over Ni over Ag 2.5 Yes
RP1206 1206 Wraparound 0.040" BeO Au over PtPdAg 2.5 Yes
RP1505 1505 Wraparound 0.015" Alumina SnPb over Ni over Ag 0.75 No
RP2010 2010 Wraparound 0.015" Alumina SnPb over PtPdAu 1 No
RP2010 2010 Wraparound 0.015" Alumina PdAg 1 Yes
RP2010 2010 Wraparound 0.015" Alumina SnPb over Ni over Ag 1 No
RP2010 2010 Wraparound 0.015" Alumina Matte Tin over Ni over Ag 1 Yes
RP2010 2010 Wraparound 0.015" Alumina Au 1 Yes
RP2010 2010 Wraparound 0.025" Alumina SnPb over PtPdAu 0.5 No
RP2010 2010 Wraparound 0.025" Alumina PdAg 0.5 Yes
RP2010 2010 Wraparound 0.025" Alumina SnPb over Ni over Ag 0.5 No
RP2010 2010 Wraparound 0.025" Alumina Matte Tin over Ni over Ag 0.5 Yes
RP2010 2010 Wraparound 0.025" Alumina Au 0.5 Yes
RP2010 2010 Wraparound 0.015" BeO SnPb over PtPdAu 2 No
RP2010 2010 Wraparound 0.015" BeO SnPb over Ni over Ag 2 No
RP2010 2010 Wraparound 0.015" BeO Matte Tin over Ni over Ag 2 Yes
RP2010 2010 Wraparound 0.015" BeO Au over PtPdAg 2 Yes
RPC2010 2010 Wraparound
w/ Castellations
0.040" BeO SnPb over Ni over Ag 5 No
RPC2010 2010 Wraparound
w/ Castellations
0.040" BeO Matte Tin over Ni over Ag 5 No
RP2512 2512 Wraparound 0.010" Alumina SnPb over Ni over Ag 3 No
RP2512 2512 Wraparound 0.015" Alumina SnPb over Ni over Ag 3 No
RP2512 2512 Wraparound 0.025" Alumina SnPb over Ni over Ag 3 No
RP2512 2512 Wraparound 0.040" Alumina SnPb over Ni over Ag 3 No
RP2512 2512 Wraparound 0.015" BeO SnPb over Ni over Ag 10 No
RP2512 2512 Wraparound 0.025" BeO SnPb over Ni over Ag 10 No
RP Series Chip Resistor Configuration
illustration Wraparound Chip Resistors
Full Wrap on either side of chip for solder or epoxy surface mount attachment
illustration Wraparound Chip Resistors castellations
Surface mountable with castellated connections on either side of chip
RPC Series Chip Resistor Configuration
Click on link for available Data Sheet.  For other options, please contact us with your requirement.

(Click on column header to sort)

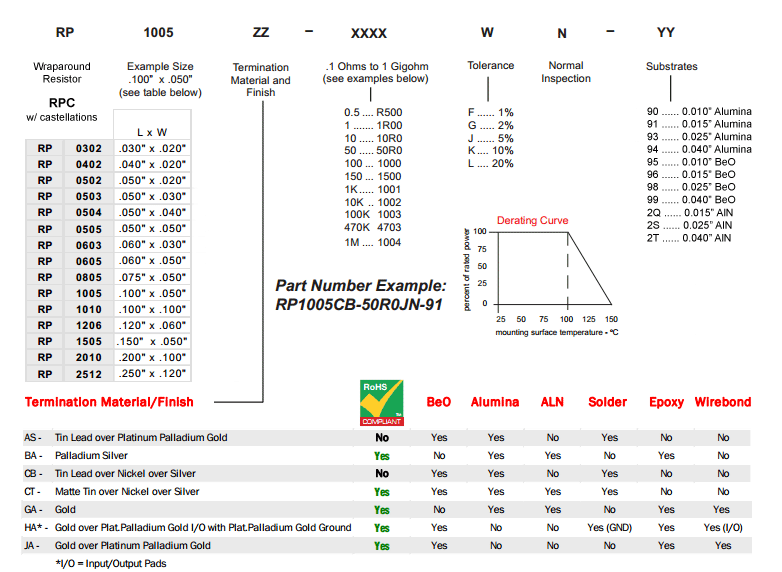

Ordering Information
Below are Barry Industries' standard wraparound chip resistors. Engineers are welcome to contact us and we will design a custom wraparound chip resistors to your exact specifications.

AlN Note: 10Ω to 1KΩ ohm available. Special ohmic value requests welcome.
