Flip Chip w/
Backplane Chip Attenuators
AM Series
Barry Industries manufacturers Flip Chip with Backplane chip attenuators on Alumina or BeO for solder or epoxy surface mount or wirebond attachment. These chip attenuators are available in sizes 0706 to 1612 with standard attenuation values from 0dB to 32dB. Other values available.
Also see:
Leaded Attenuators
Flanged Attenuators
AM Series Chip Attenuator Configuration
The AM Series resistors feature top-side only terminals with a full backplane for maximum contact with your heatsink.

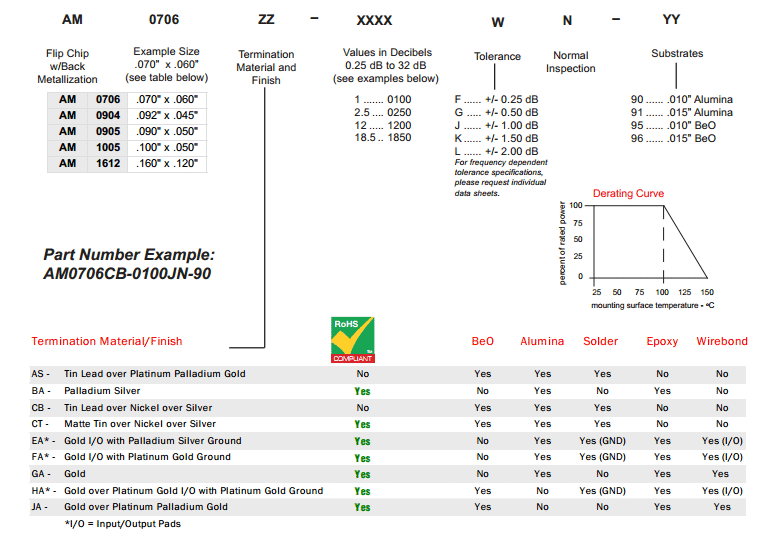

Ordering Information
Below are Barry Industries' standard Flip Chip with Backplane chip attenuators. Engineers are welcome to contact us and we will design a custom Flip Chip with Backplane chip attenuator to your exact specifications.

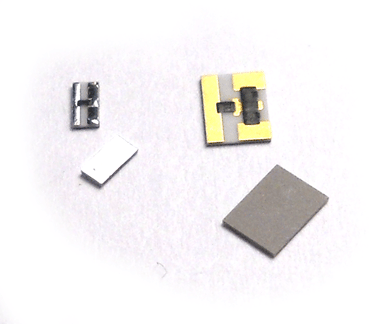

image of Flip Chip Backplane Attenuator
Other Available Configurations
ordering info flip chip attenuators
Circuit Diagram
(0706, 1005 & 1612 only)
illustration of Flip Chip Backplane Attenuator
T-Pad Attenuator
Pi-Pad Attenuator
Circuit Diagram
(0904 & 0905 only)
