1/4 Wraparound Chip Attenuator
AK Series
Barry Industries manufacturers a compact 0405 size 1/4 Wraparound chip attenuator on Alumina for solder surface mount attachment. Standard attenuation values are from 0dB to 32dB. Other values available.
Also see:
Leaded Attenuators
Flanged Attenuators
AK0405 Chip Attenuator Configuration
illustration of Quarter Wraparound Chip Attenuator
1/4 Wraparound on either side of chip for face (film side) down solder or epoxy surface mount attachment
Click on link for available Data Sheet. For more options, please contact us with your requirement.

(Click on column header to sort)
Ordering Information
Below is Barry Industries' standard 1/4 Wraparound chip attenuator. Engineers are welcome to contact us and we will design a custom 1/4 Wraparound chip attenuator to your exact specifications.

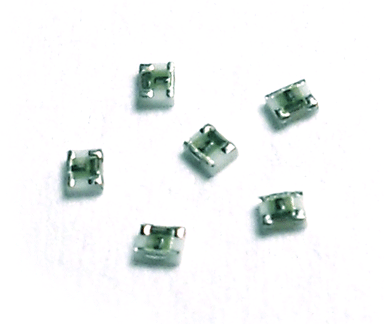

image of Quarter Wraparound Chip Attenuator
Other Available Configurations
CW Power
(Max) (W)
Value
(dB)
Size
Thickness
(Max)
Substrate
Metalization
Freq.
(Max) (GHz)
RoHS
Part Number Prefix/
Data Sheet
0.15 0.25 - 32 0405 0.015" Alumina SnPb over Ni over Ag 4 No AK0405CB

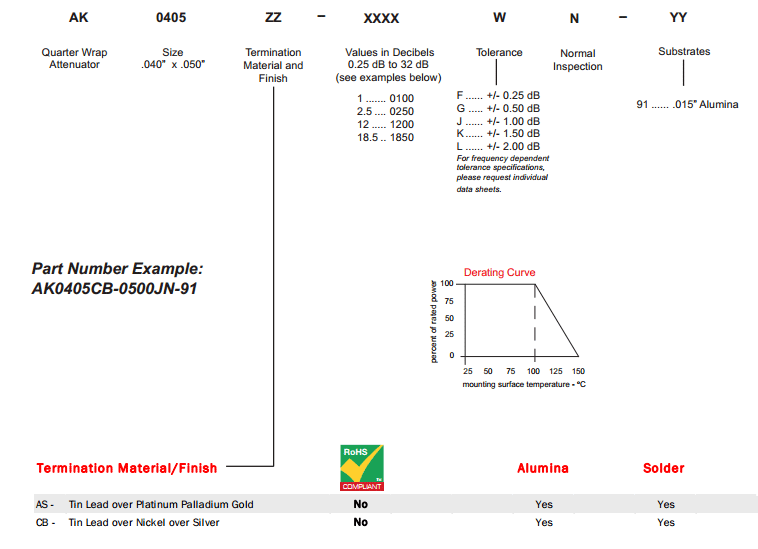

ordering info quarter wraparound chip attenuator
Circuit Diagram
AK0405 1/4 Wraparound's design allows for face (film side) down mounting which preserves continuity between the resistor element and circuit traces thus minimizing mismatches. Additionally the 1/4 Wraparound terminal provides a 'solder fillet' to aide in visual inspection on the solder joint.
T-Pad attenuator diagram
View AK0405 S-Parameters on
Modelithics
learn more..
